BIXOLON BCD-1000 User Manual

Rev. 1.00
- 10 -
BCD-3000

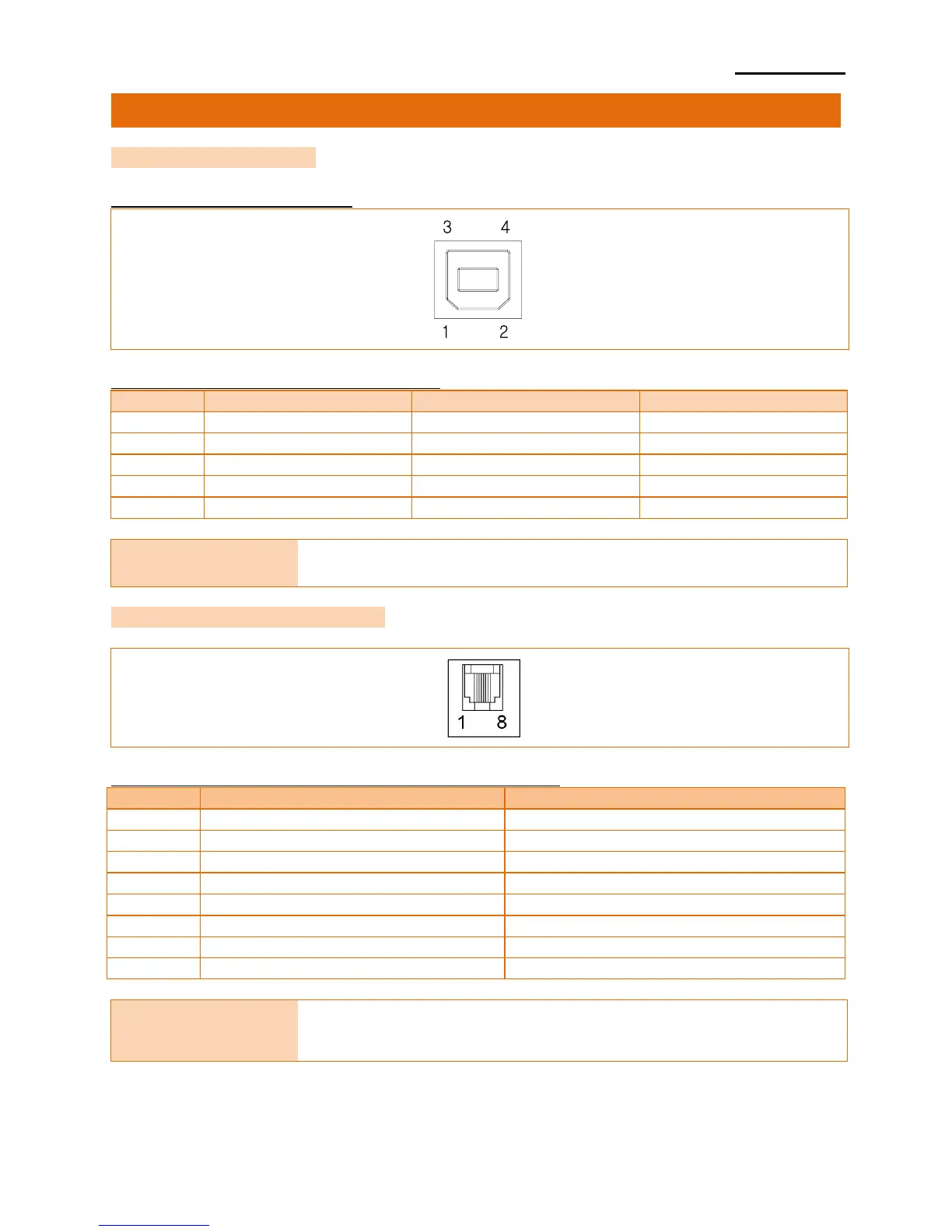

5. Connection
5-1 USB Communication
5-1-1 USB Interface Connector
5-1-2 USB Interface Connector Pin Layout
Pin No.
Signal
Designation(Color)
Function
Shell
Shield
Drain cable
Grounding of frame
1
VBUS
Red
Host power
2
D-
White
Data line (D-)
3
D+
Green
Data line (D+)
4
GND
Black
Grounding of signal
Caution or Warning
- Please only use the genuine USB cable supplied by the
manufacturer to avoid damage or malfunction.
5-2 Serial Communication (RJ45)
5-2-1 Serial Communication (RJ45) Connector Pin Layout
Pin No.
Signal
Input/Output
1
+5VDC
Input
2
RXD
Input
3
TXD
Output
4
N.C
-
5
Grounding of signal
-
6
N.C
-
7
RTS
Output
8
CTS
Input
Caution or Warning
- The serial port (RJ45) is designed exclusively for SRP-Q300/302
models only. Do not connect any other devices to avoid damage
or malfunction.
