BCD-3000

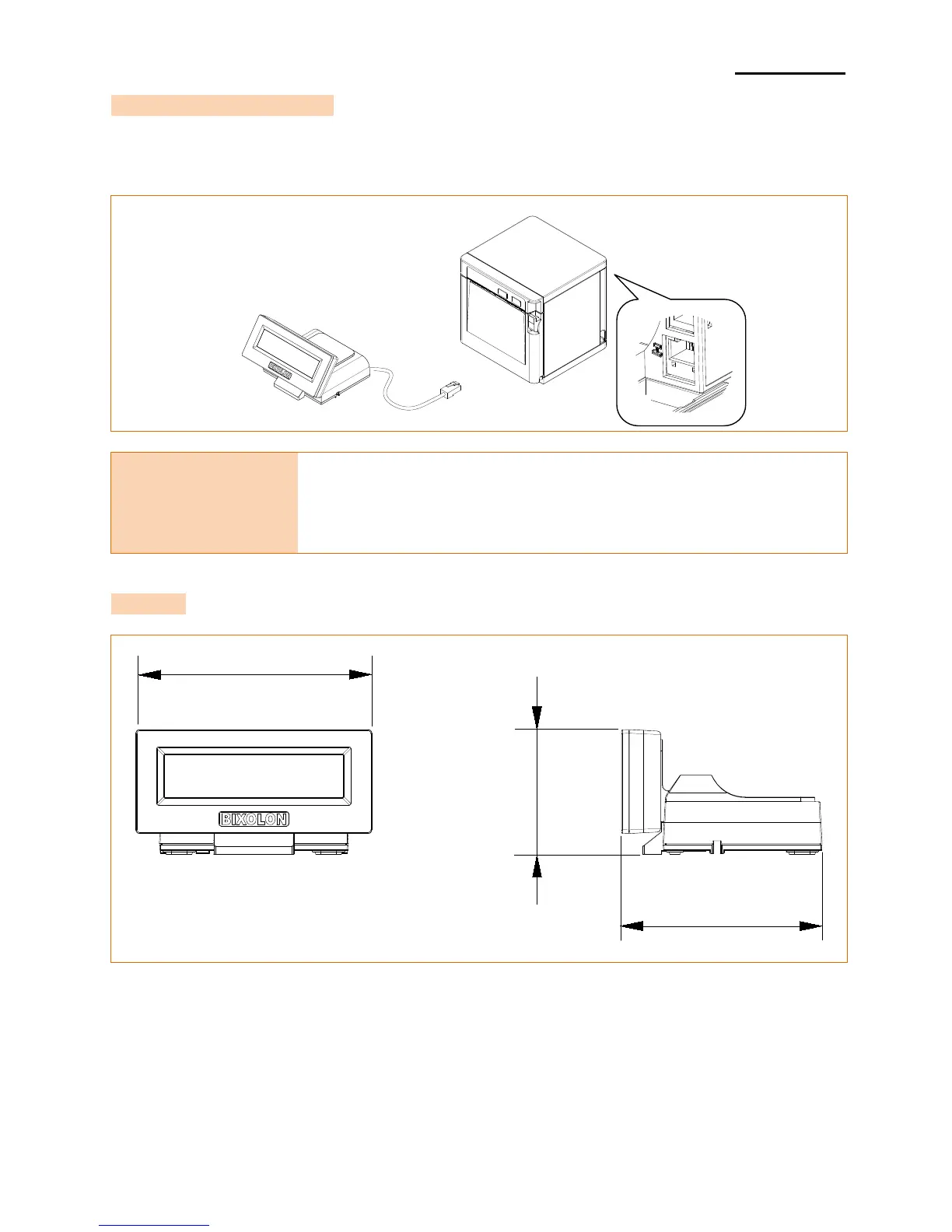

3-2 How to Connect (RJ45)
• Connect the display cable to the LCD port on the printer.
Make sure to connect to the LCD port as it is unique to our model.
Caution or Warning
- Use only the compatible cable as the RJ45 port is designed
exclusively for Bixolon SRP-Q300/302 printer serial (UART)
communication port.
- Do not connect the RJ45 Plug to any port other than the serial
communication port (especially, LAN port) to avoid damage.
3-3 Sizes
BCD-3000
Serial
(RJ45)
SRP-Q300/302
110.3mm
68.5mm
130mm
