Display and operation
Operating instructions GLP
1 -- 27
6.562.98.5.01.18

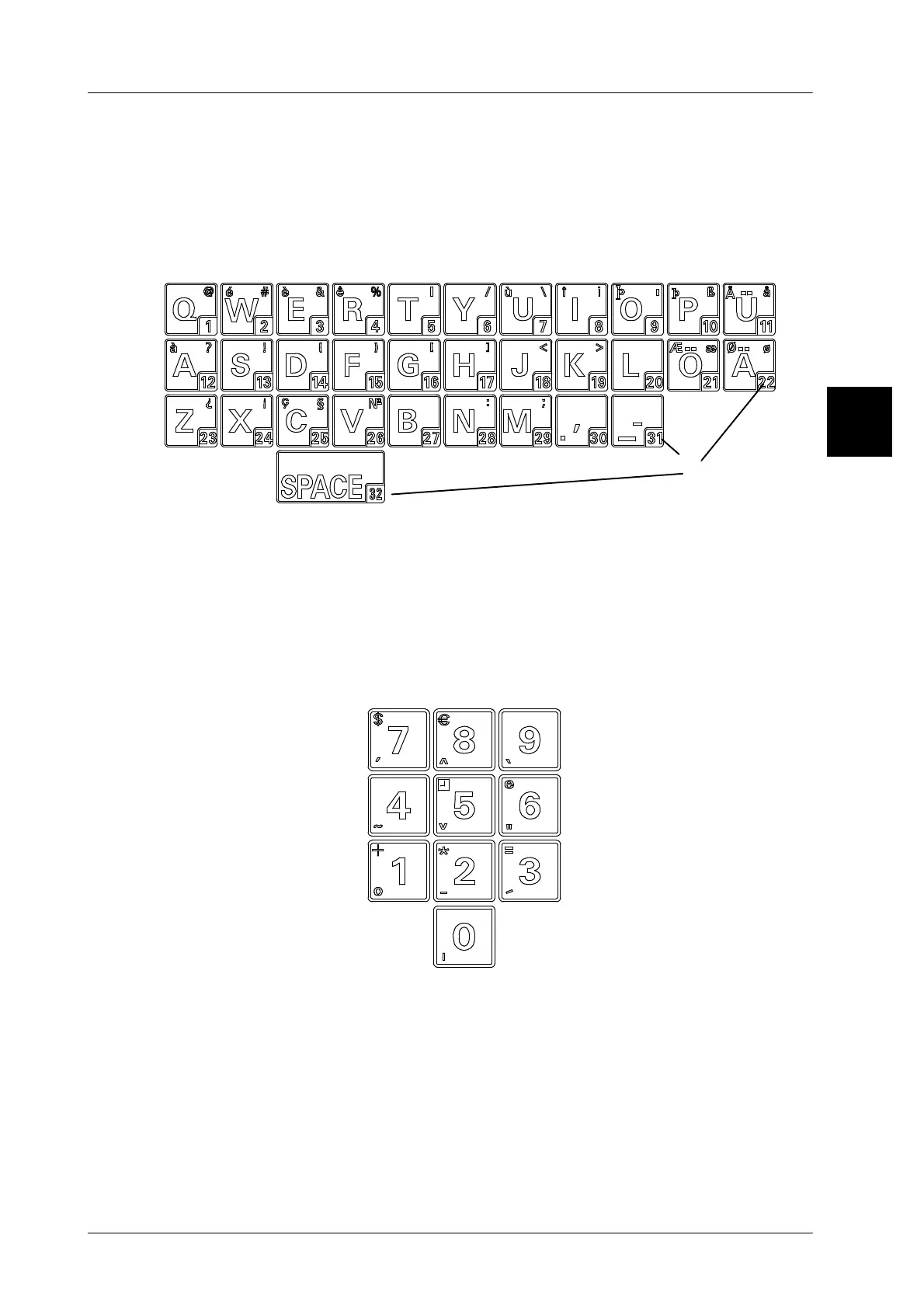

1.4.1.6 Description of alpha keyboard (dark grey)
The alpha--keys permit texts and characters to be entered in the text editor. This
is described in greater detail in the programming instructions, section 2.2 ”texts”.
The dark grey fields contain the numbers for direct PLU keys. Activating a PLU
call via direct PLU keys permits 32 articles to be called up directly and 64 further
articles to be called up via a key combination.
Direct PLU
keys
1.4.1.7 Description of 10--digit keyboard (light grey)
The keys of the 10--digit keyboard serve to enter numeric values in the input me-
nus or the tables.
All special characters imprinted on the keys in addition may also be entered in the
text editor by activating the relevant key combination.
1.4
