BK Precision 8540 User Manual

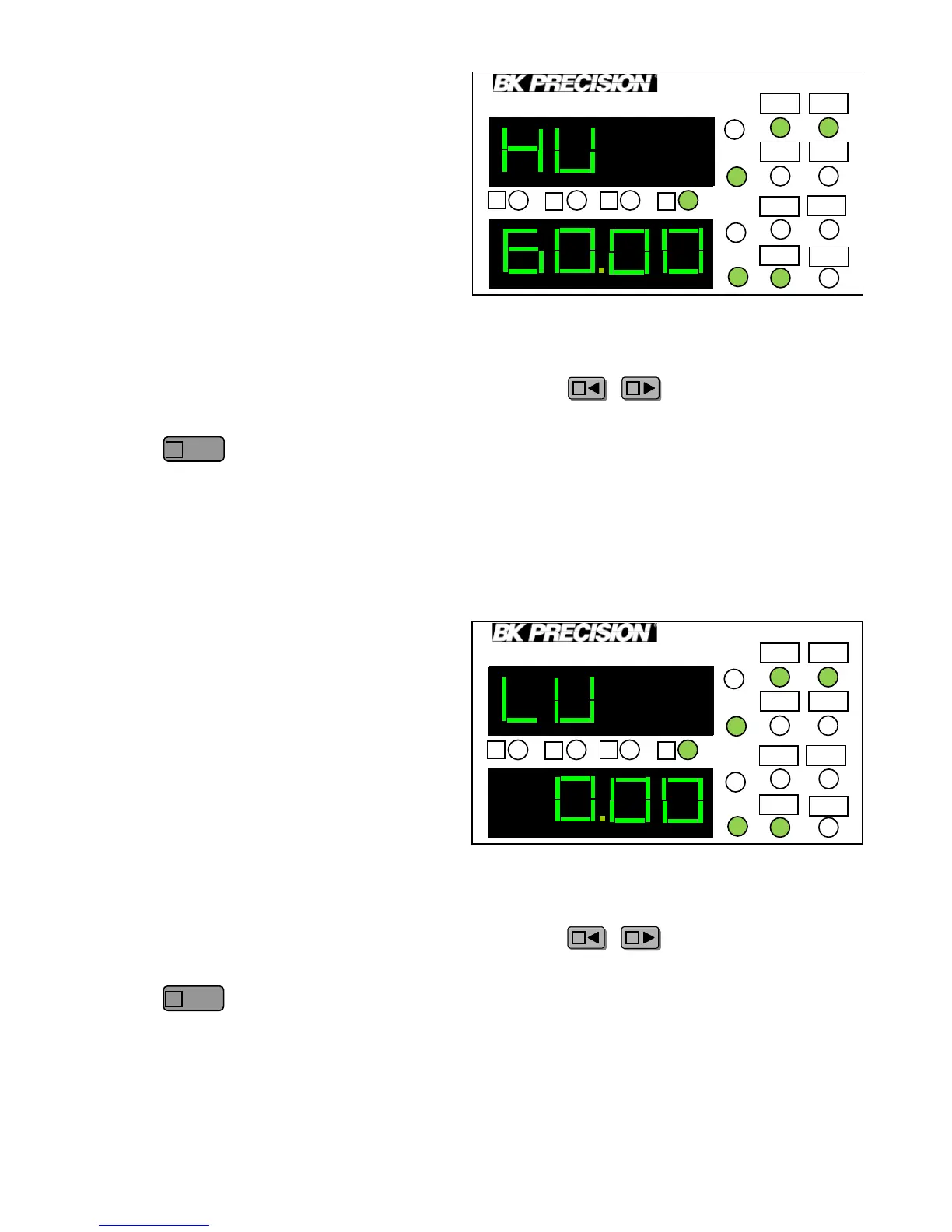

Step 5 – Select upper limit of input
voltage
This parameter is used to limit
testing or test setups that must
stay within a customized range of
values. Change this value to the
upper bound limit for the input
voltage. If voltage exceeds this
limit while the sequence is running
this step, it will stop and show an
error condition. See “Error
Condition” section for details. In
this example, we will set to 60.00 V.
Press to go and configure
the next parameter.
View
C
Recall
CC
Short CV
OFF
Shift
30A
CR
A
B
C
D
Set
V
W
A
150W DC Electronic Load
8540
Programmable Range: 0.00 – 60.00
Use the keys to change
cursor position shown by the LED light
next to either A, B, C, or D (These four
denotes cursor position, with A selecting
the most significant figure and D the
least significant figure.
BB
AA
Step 6 – Select lower limit of input
voltage
This parameter is used to limit
testing or test setups that must
stay within a customized range of
values. Change this value to the
lower bound limit for the input
voltage. If voltage is less than this
limit while the sequence is running
this step, it will stop and show an
error condition. See “Error
Condition” section for details. In
this example, we will set to 0.00 V.
Press to go and configure
the next parameter.
View
C
Recall
CC
Short CV
OFF
Shift
30A
CR
A
B
C
D
Set
V
W
A
150W DC Electronic Load
8540
Programmable Range: 0.00 – 60.00
Use the keys to change
cursor position shown by the LED light
next to either A, B, C, or D (These four
denotes cursor position, with A selecting
the most significant figure and D the
least significant figure.
BB
AA
