BK Precision 8540 User Manual

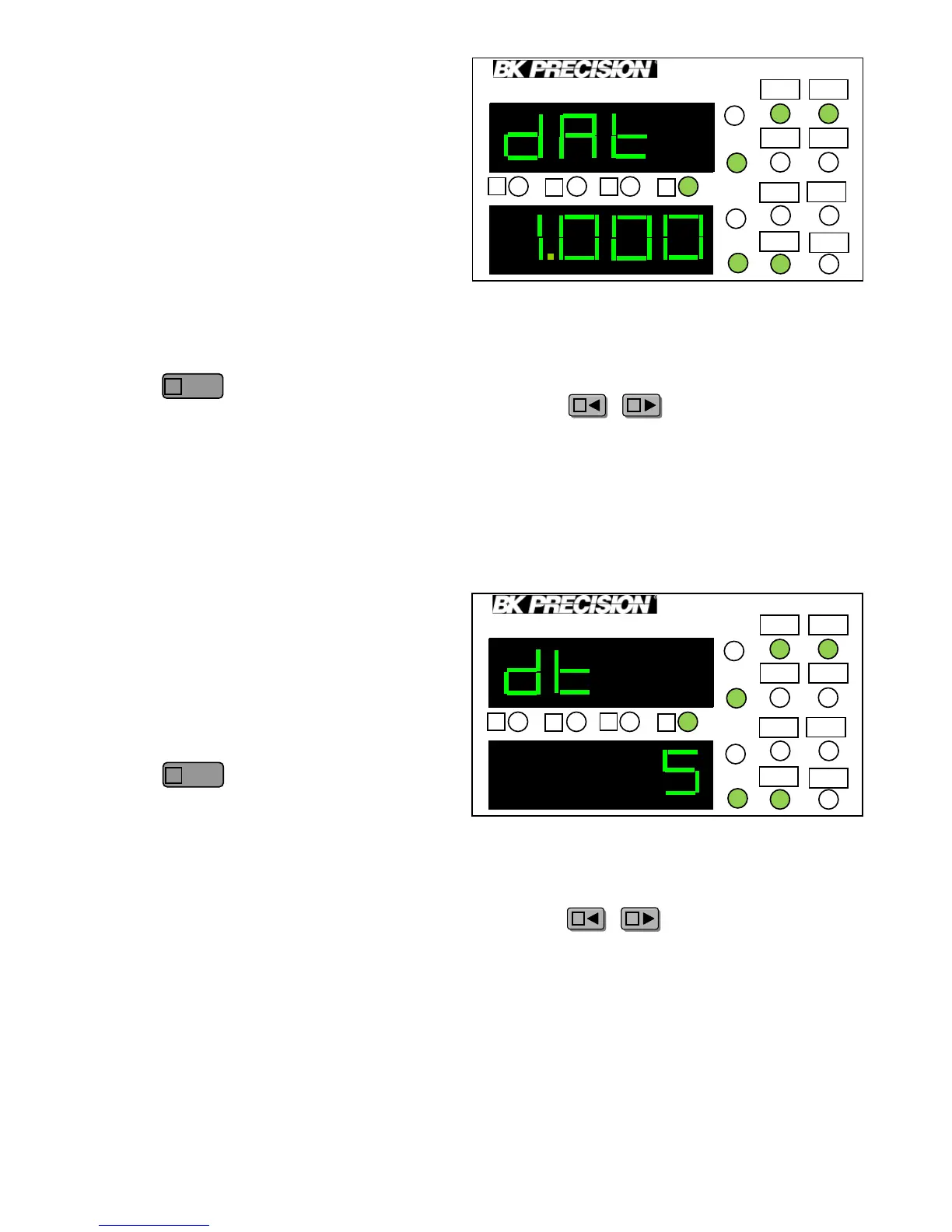

Step 3 – Select step value
Select the data value you want
programmed for the selected step.
If you enter 0.000, this denotes the
end of the sequence and it will
stop on this step. The maximum
value will depend on the type
selected in previous step. See
programmable range on the right
for reference. In this example, we
will enter 1.000 A.
Press to go and configure
the next parameter.
View
C
Recall
CC
Short CV
OFF
Shift
30A
CR
A
B
C
D
Set
V
W
A
150W DC Electronic Load
8540
Step 4 – Select delay time
“dt” on the top display refers to
delay time for the selected step. In
this example, we will set it to 5
seconds.
Press to go and configure
the next parameter.
Recall
CC
Short CV
OFF
Shift
30A
CR
A
B
C
D
Set
V
W
A
150W DC Electronic Load
8540
Programmable Range: 0.000 (CC) /
0.100 (CV) / 0.100 (CR) – 30.00 (CC) /
60.0 (CV) / 4000 (CR)
Use the keys to change
cursor position shown by the LED light
next to either A, B, C, or D (These four
denotes cursor position, with A selecting
the most significant figure and D the
least significant figure.
BB
AA
Programmable Range: 0.4 seconds to
25 seconds.
Use the keys to change
cursor position shown by the LED light
next to either A, B, C, or D (These four
denotes cursor position, with A selecting
the most significant figure and D the
least significant figure.
View
C
BB
AA
