WARNING: Wear appropriate hearing protection during use. Under some conditions
and duration of use, noise from this product may contribute to hearing loss.
SYMBOLS
The label on your tool may include the following symbols. The symbols and their definitions are as follows:
V ..................volts A ...................amperes
Hz ................hertz W ..................watts
min ..............minutes ................alternating current
............. direct current
n
o .................no load speed
................Class I Construction ..................earthing terminal
(grounded) ................safety alert symbol
................Class II Construction .../min or rpm...revolutions or
(double insulated) reciprocation per minute
............
Read instruction manual before use
..................Use proper respiratory protection
................Use proper eye protection ..................Use proper hearing protection
•When using an extension cord, be
sure to use one heavy enough to carry
the current your product will draw. An
undersized cord will cause a drop in line
voltage resulting in loss of power and
overheating. The following table shows
the correct size to use depending on
cord length and nameplate ampere
rating. If in doubt, use the next heavier
gauge. The smaller the gauge number,
the heavier the cord.
SAVE THESE INSTRUCTIONS
WARNING: Before attempting any of the following operations, make sure the saw blade has
stopped, and the battery is removed or the cord is unplugged. Used saw blades can be hot.
Minimum Gauge for Cord Sets
Volts Total Length of Cord in Feet
120V 0-25 26-50 51-100 101-150
(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)
240V 0-50 51-100 101-200 201-300
(0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m)
Ampere Rating
More Not more American Wire Gauge
Than Than
0 - 6 18 16 16 14
6 - 10 18 16 14 12
10 - 12 16 16 14 12
12 - 16 14 12 Not Recommended

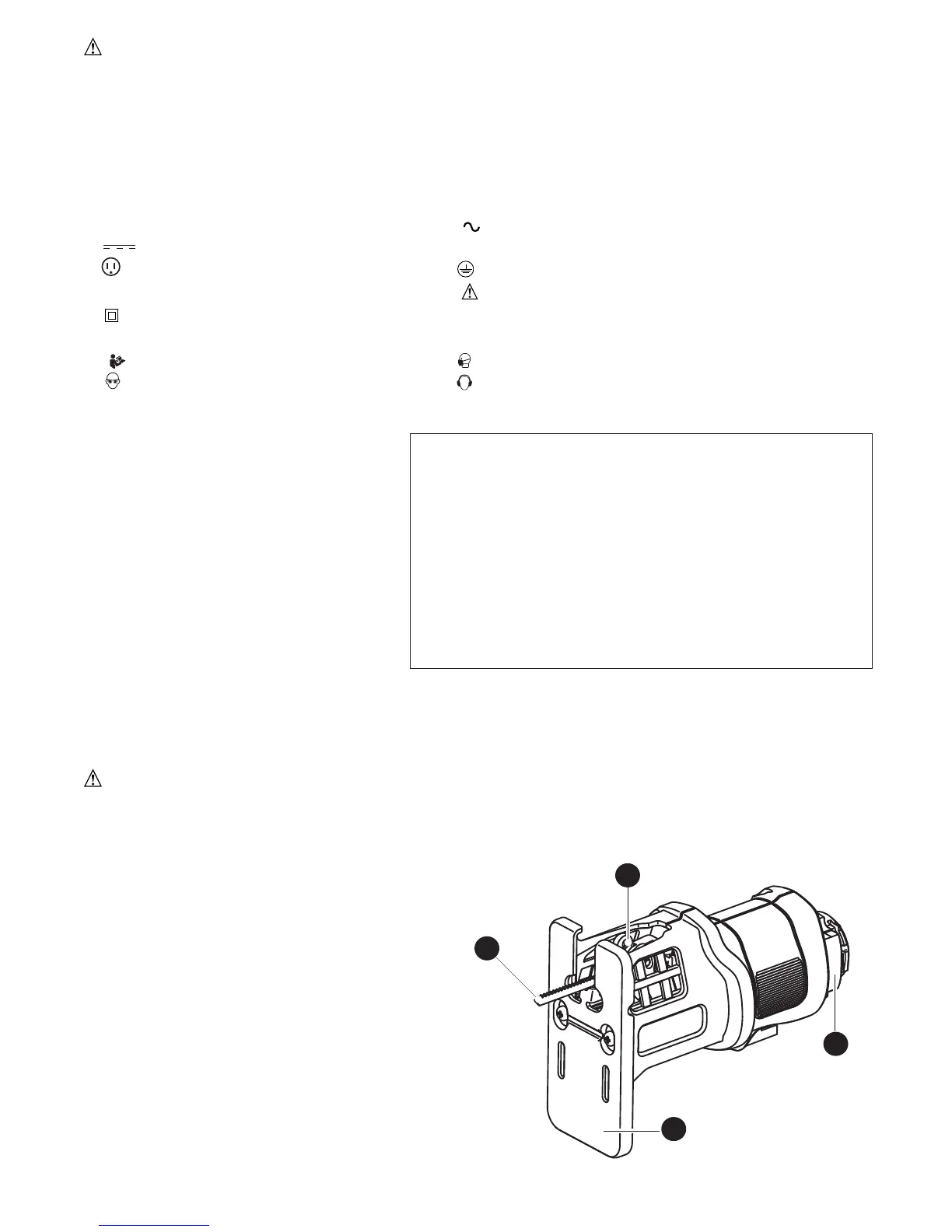

FUNCTIONAL DESCRIPTION
1. Jig saw attachment
2. Blade clamp
3. Saw shoe
4. Jig saw blade
2
1
3
4
