MOUNTING INSTRUCTIONS FOR
CABINET WITH OVERHANG
If your cabinet has an overhang —
a lip extending below the bottom of
the cabinet shelf — follow these
simple mounting instructions.
1. Empty your cabinet of its contents
before starting to drill. Clean the
underside of the cabinet to remove
any grease or other residue.
2. To determine whether you need
to use Spacer Bars to mount your
Horizontal Toaster, use the
Cabinet Overhang Ruler on your
Mounting Template and measure
the cabinet overhang (See
Illustration 2). If the overhang
measures 1/4”, 3/4”,1-1/4”, or 1-
3/4” inches, you will need Spacer
Bars. Instructions for using
Spacer Bars are on page 12.
NOTE: If The Mounting Location
Has A Partition: The Mounting
Template must be cut and a piece
removed to allow for this partition.
(Figure I) Measure and cut very
carefully. Save any pieces of the
Mounting Template you remove.
3. Fold down the grey strip on the
Mounting Template at the dotted
line.
4. With the doors of the cabinet
open, position the Mounting
Template under the cabinet so
9
Figure I

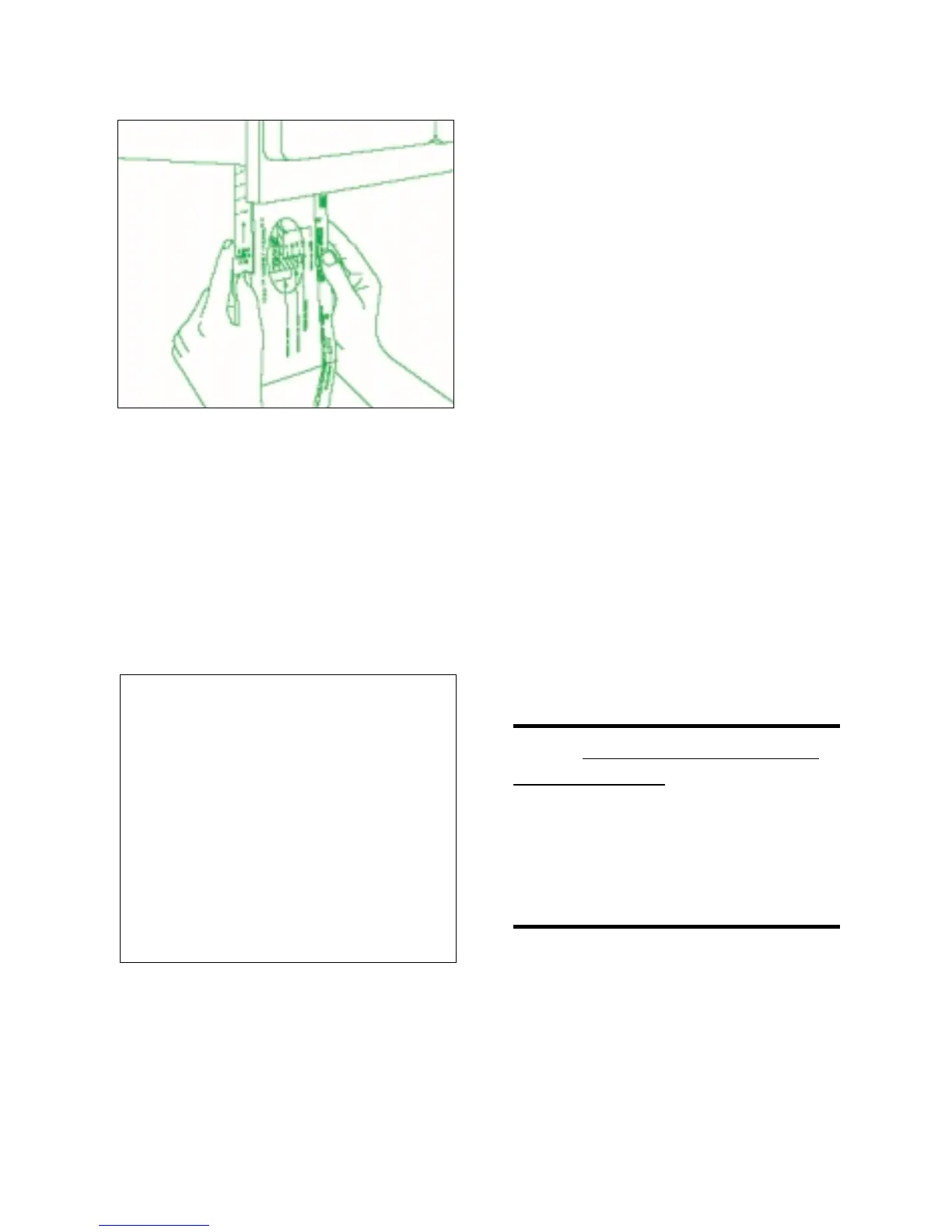

Illustration 2
To Next Page
