2.5.6 ServSwitch DKM FX Compact 8-Port, SFP (ACXC8F)

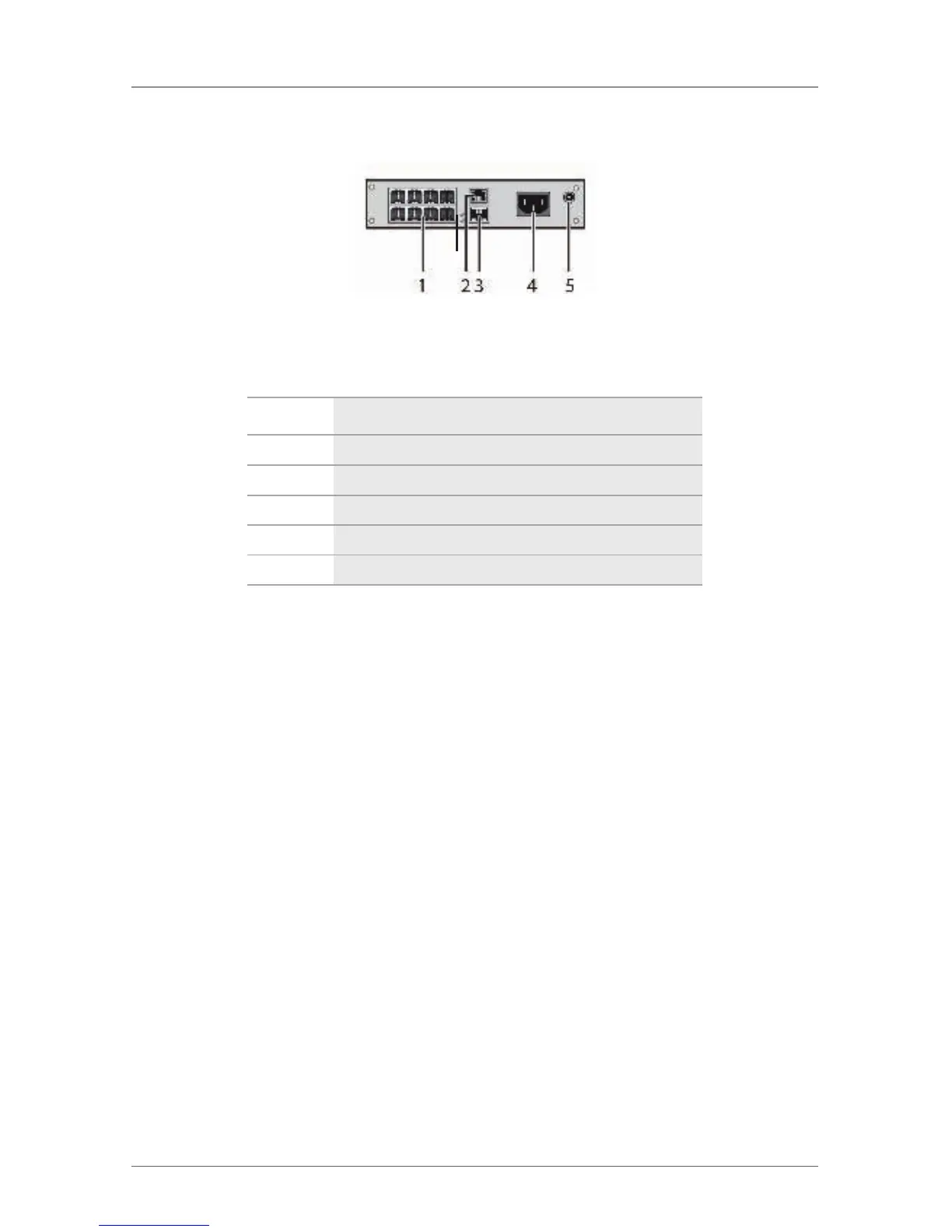

Figure 2-7. Front view, ACXC8F.
Table 2-9. ACXC8F components.
Number Component
1 I/O ports 1–8 (SFP)
2 Serial connection (RJ-45)
3 Network connection (RJ-45)
4 Connect to power supply
5 Connect to a 5-VDC power supply (redundancy, optional)
