CHAPTER 7: QOS APPLICATION
WEB MANAGEMENT

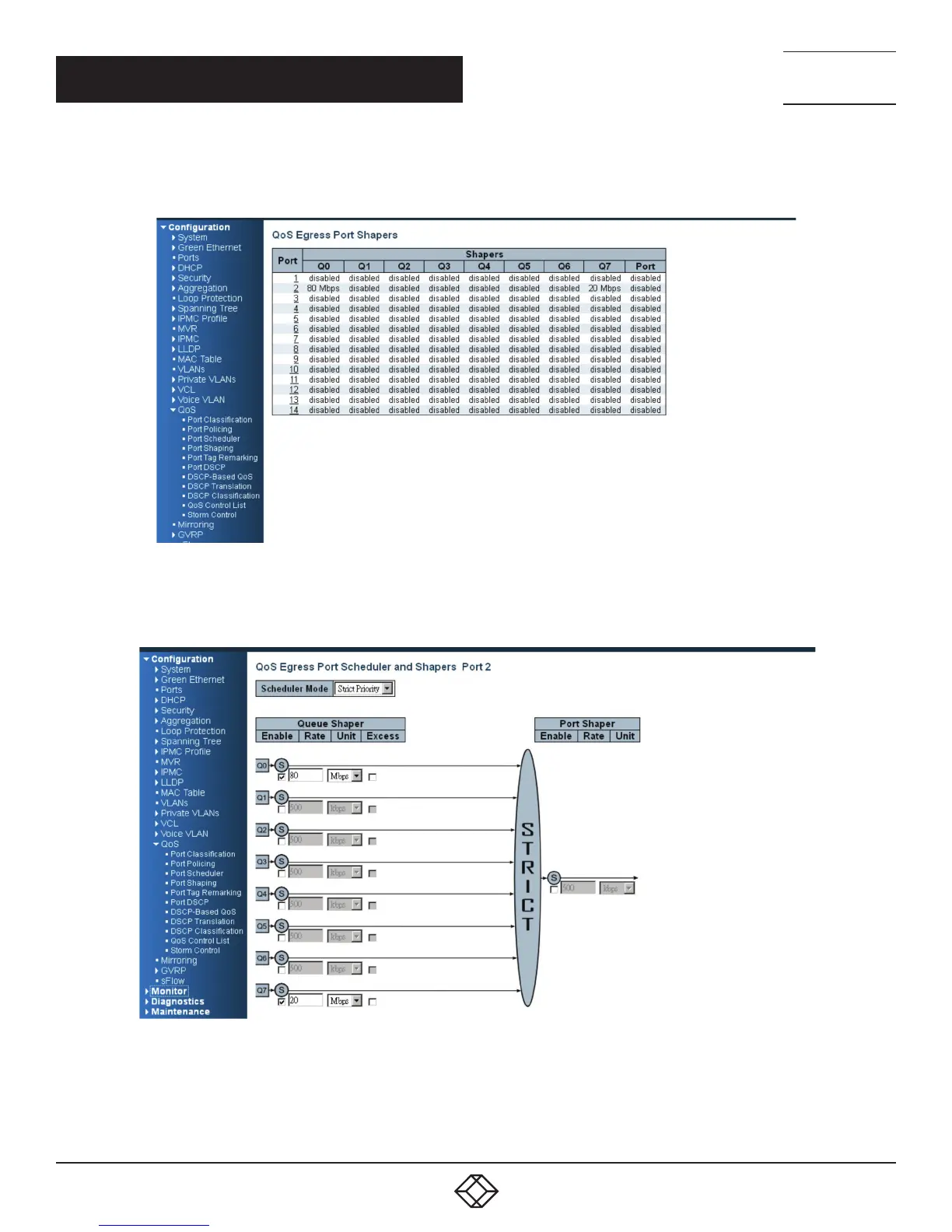

STEP 1: Go to Configuration —> Qos —> Port Shaping, to create a Qos profile on Port-2.
FIGURE 7-7.
STEP 2: Select schedule mode to be “”Strict Priority” and set shaping rate for queue 0 and queue 7 as below.
FIGURE 7-8.
