CHAPTER 2: OVERVIEW
2.3 WHAT’S INCLUDED
Your package should include the following items. If anything is missing or damaged, contact Black Box Technical Support
at 877-877-2269 or info@blackbox.com
(1) Main unit
(1) Type-C M to M cable (stores inside the main unit)
2.4 HARDWARE DESCRIPTION

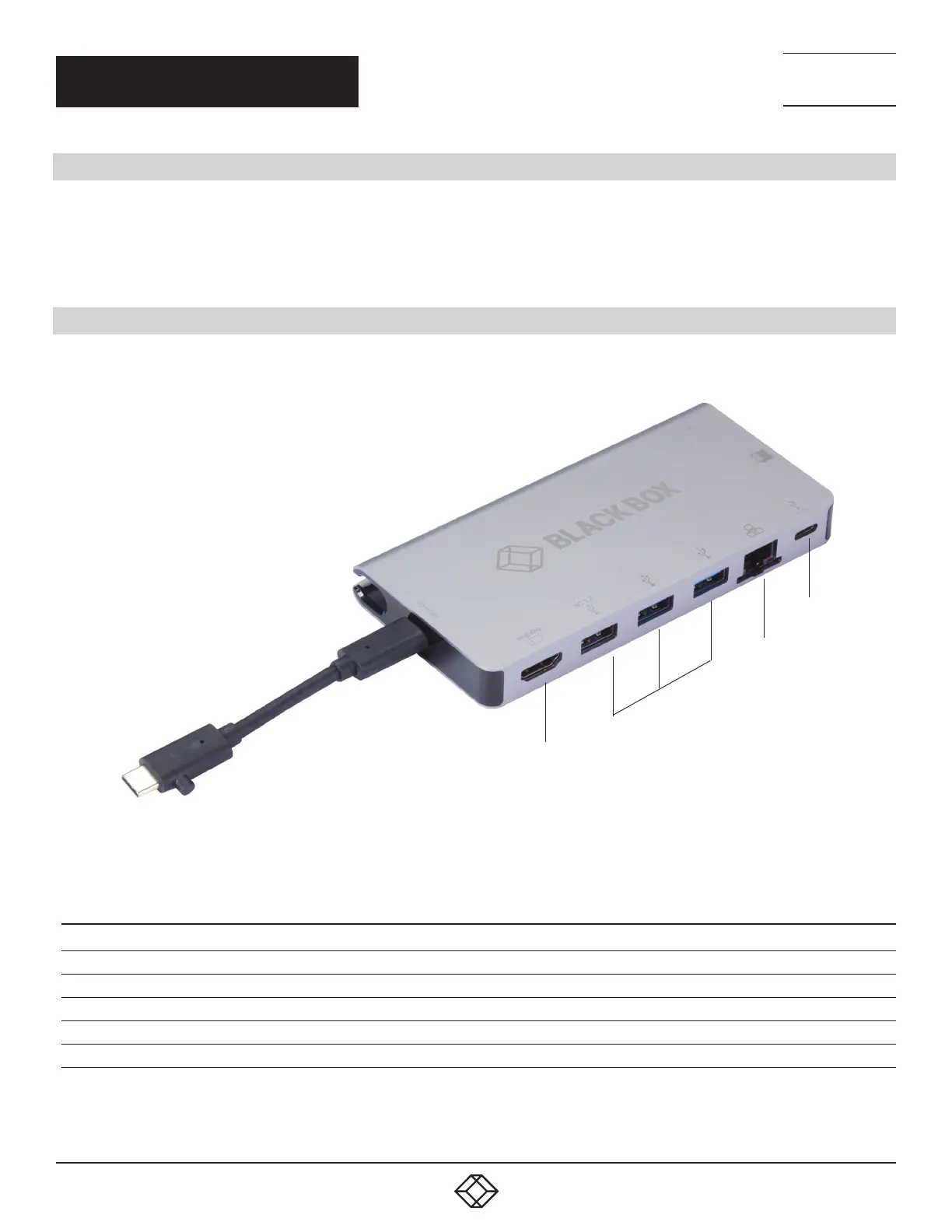

Figures 2-1 through 2-4 show the front, back, and sides of the unit. Tables 2-1 through 2-4 describe its components.
USB Type C F
connector
RJ-45
connector
(3) USB Type A
connectors
HDMI
connector
USB Type C M
connector
FIGURE 2-1. FRONT OF UNIT
TABLE 2-1. FRONT PANEL COMPONENTS
COMPONENT DESCRIPTION
USB Type C male connector Connects to MacBook or Chromebook computer
HDMI connector Connects to HDMI display, 4K @ 30 Hz
(3) USB Type A connectors Connect to USB 3.0/2.0 devices
RJ-45 connector Connects to Ethernet router
USB Type C female connector Connects to USB Type C device or Type C PD adapter
