Chapter 3: Connection and Operation
3. Connection and Operation
1. Connect the HDMI source (such as DVD, PS3, STB ) to the input of the
transmitter.
2. Connect the receiver’s output to an HDTV display.
3. Use a CAT5e/6 cable up to 328 feet (100 m) to connect the transmitter and
receiver.
4. Plug one power supply into the transmitter and the other into the receiver.
5. Power on the HDTV display and HDMI source.
NOTE: We recommend that you use one continuous run of CAT5e/6 cable
from transmitter to receiver. Using patched connections may affect
the maximum distance.
CAUTION: Insert or remove the cable gently.
External infrared
emitter
External infrared
receiver
HDMI cable
328 ft. (100 m)
CAT5e/6 cable
HDTV
Extended Range HDMI
and IR Extender
Transmitter unit
(VX-HDMI-TP-100M)
Extended Range HDMI and
IR Extender
Receiver unit
(VX-HDMI-TP-100M)
HDMI source
HDMI cable

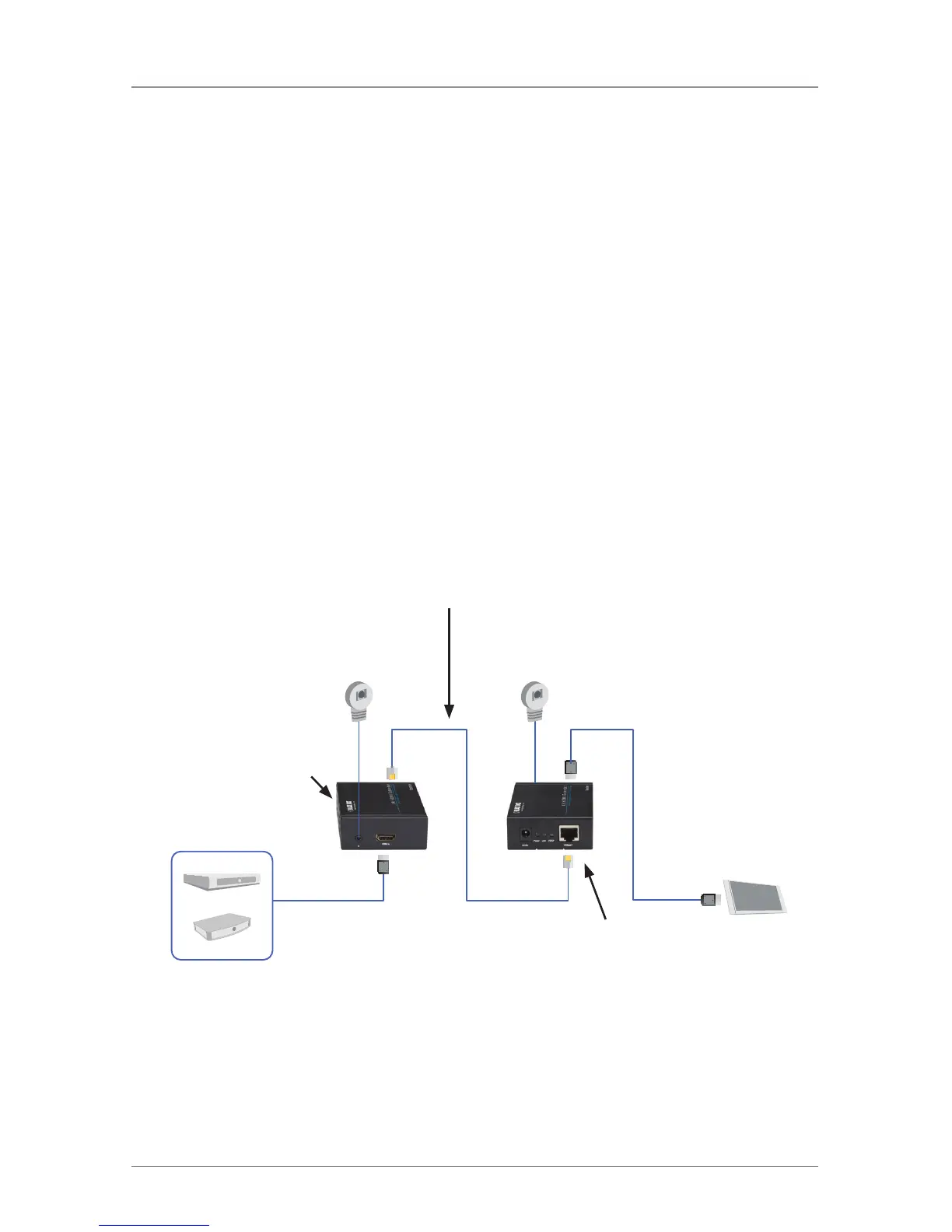

Figure 3-1. Connection diagram.
