Do not change the plug on the power cord of the air conditioner.
Aluminum house wiring may present special problems- consult a qualified electrician.
When handling the unit, be careful to avoid cuts from sharp metal edges and aluminum fins on front and rear coils.

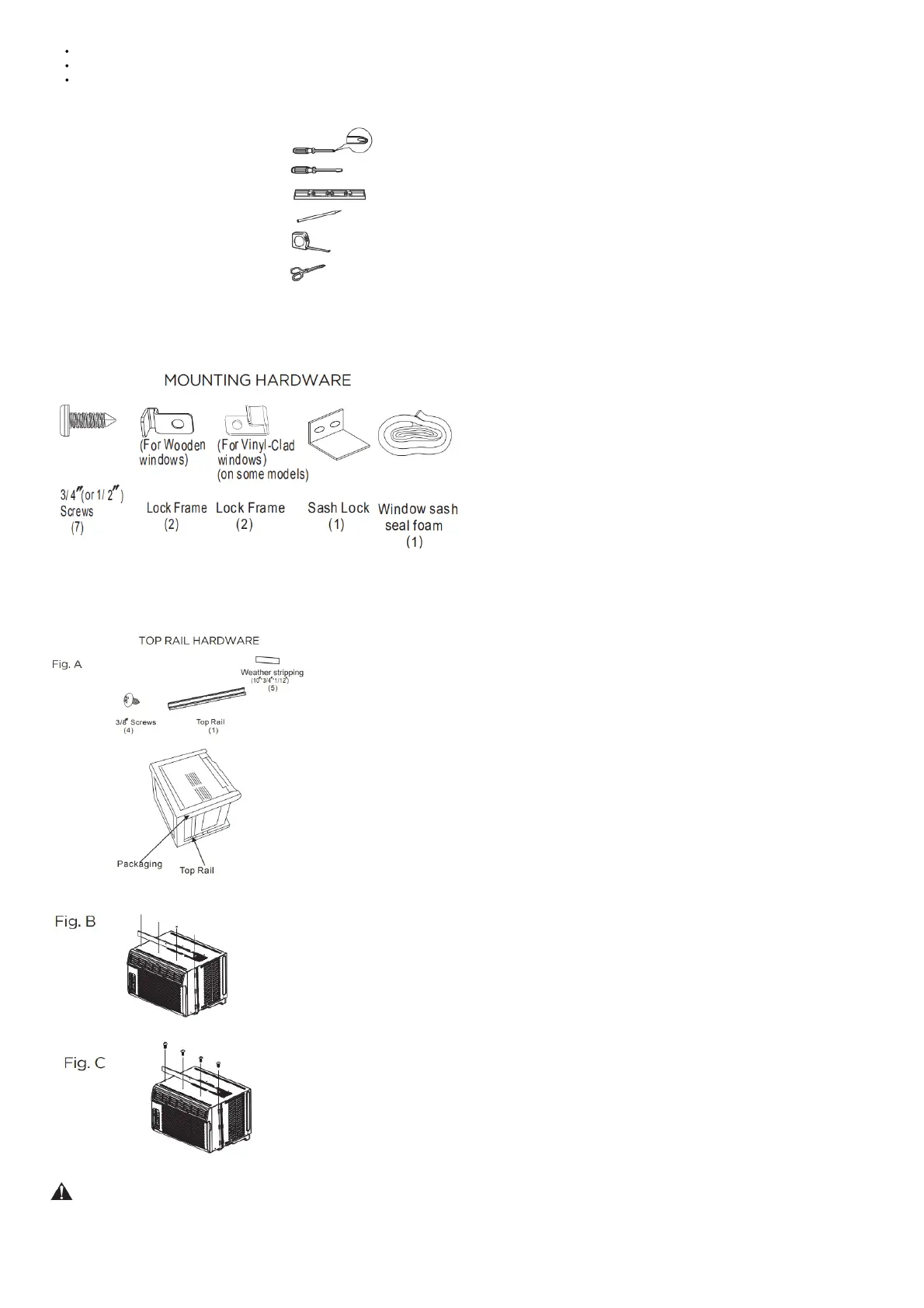

SUGGESTED TOOLS FOR INSTALLATION (Not included)
• Screwdriver (Phillip & Flat)
• Level
• Pencil
• Ruler or tape measure
• Scissors or knife
NOTE: Save Carton and Installation Instructions for future reference. The carton is the best way to store units during winter or when not in use.
PREPARE THE WINDOW
The lower sash must open sufficiently to allow a clear vertical opening of 13 inches (330mm). Side louvers and the rear of the AC must have clear air space to allow
enough airflow through the condenser, for heaflemoval. The rear of the unit must be outdoors. not inside a building or garage.
PREPARE AIR CONDITIONER
A: Remove the air conditioner from the carton and place it on a flat surface. Use 2 people to lift.
B: Remove top rail and from the packaging material as shown in Fig. A.
C: Align the holes in the top rail with those I in the top of the unit as shown in Fig. B Fig. B
D: Secure the top rail to the unit with the 3/8 Screws as shown in Fig. C.
WARNING: For safety reasons. all four (4) screws MUST be securely fastened.
NOTE: Before installing the unit. the top rail must be assembled on the unit.
INSTALL THE ACCORDION PANELS
NOTE:
The top rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of (5/16). This is necessary for proper condensed water utilization and
