Black Stone 1825 - Griddle Assembly: Exploded View and Parts; Exploded View Diagram; Parts List with Quantities

ENGLISH
ENGLISH
Owner’s Manual |
PARTS
QTY
1.1a
Control panel
1
1.1b
Control knob bezels
4
1.2a
Heat shield
1
1.2b
Ignition needle
1
PARTS
QTY
1.3
Gas rail & Valves
4
1.4
Tubular burners
4
1.5
Regulator hose
1
1.6a
Cotter pins
4
PARTS
QTY
1.6b
Shear pins
4
1.7
Le leg assembly
1
1.8
Right leg assembly
1
1.9
Caster wheels
2

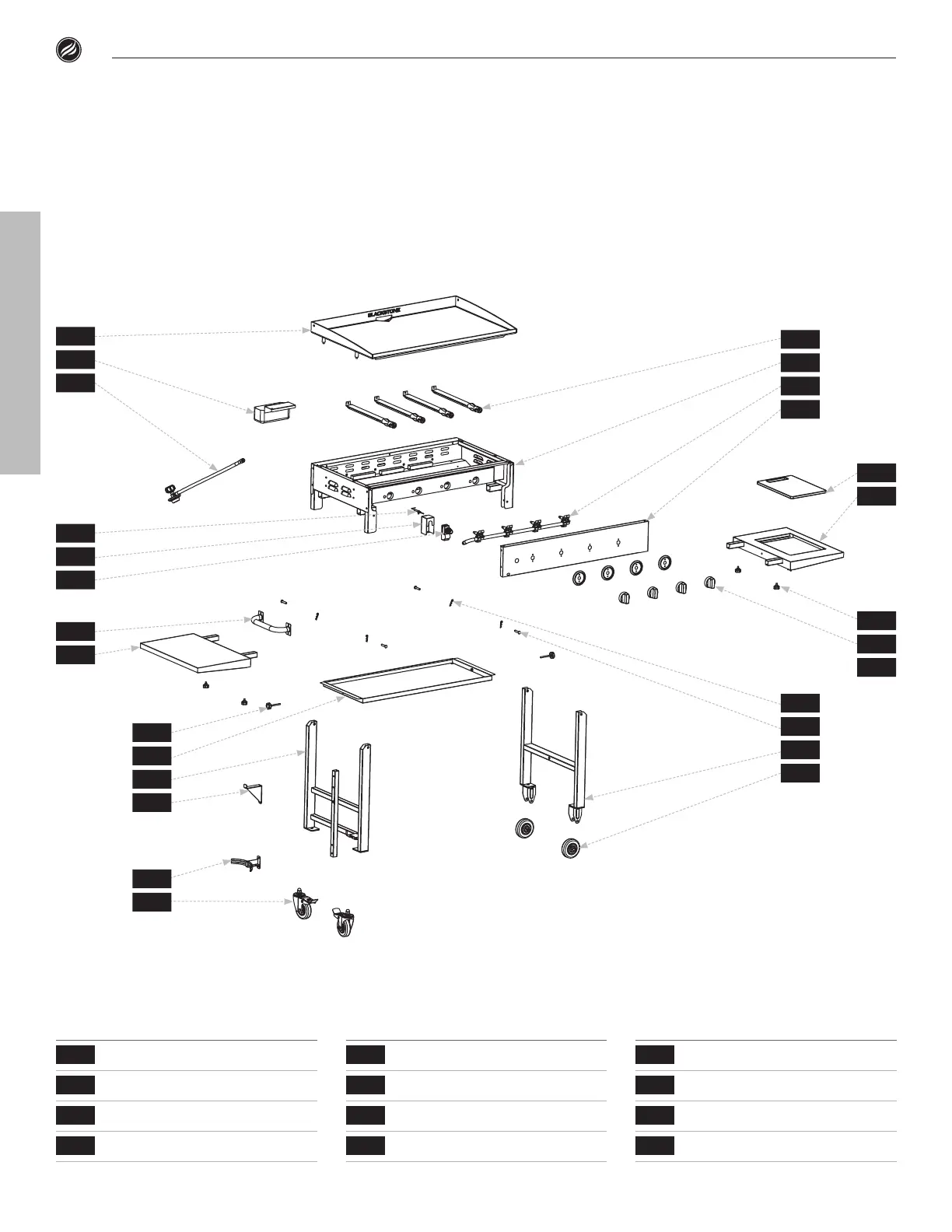

EXPLODED VIEW
ASSEMBLY GUIDE
1.6b
1
13
7
4
16
10
2
14
8
5
11
3
15
9
6
1.1a
1.5
1.2b
1.7
1.1b
1.6a
1.3
1.8
1.2a
1.4
1.9
Model 1825
04
Assembly Guide
