Black Stone 1827 - Parts & Assembly; Illustrated Parts List

PARTS & ASSEMBLY

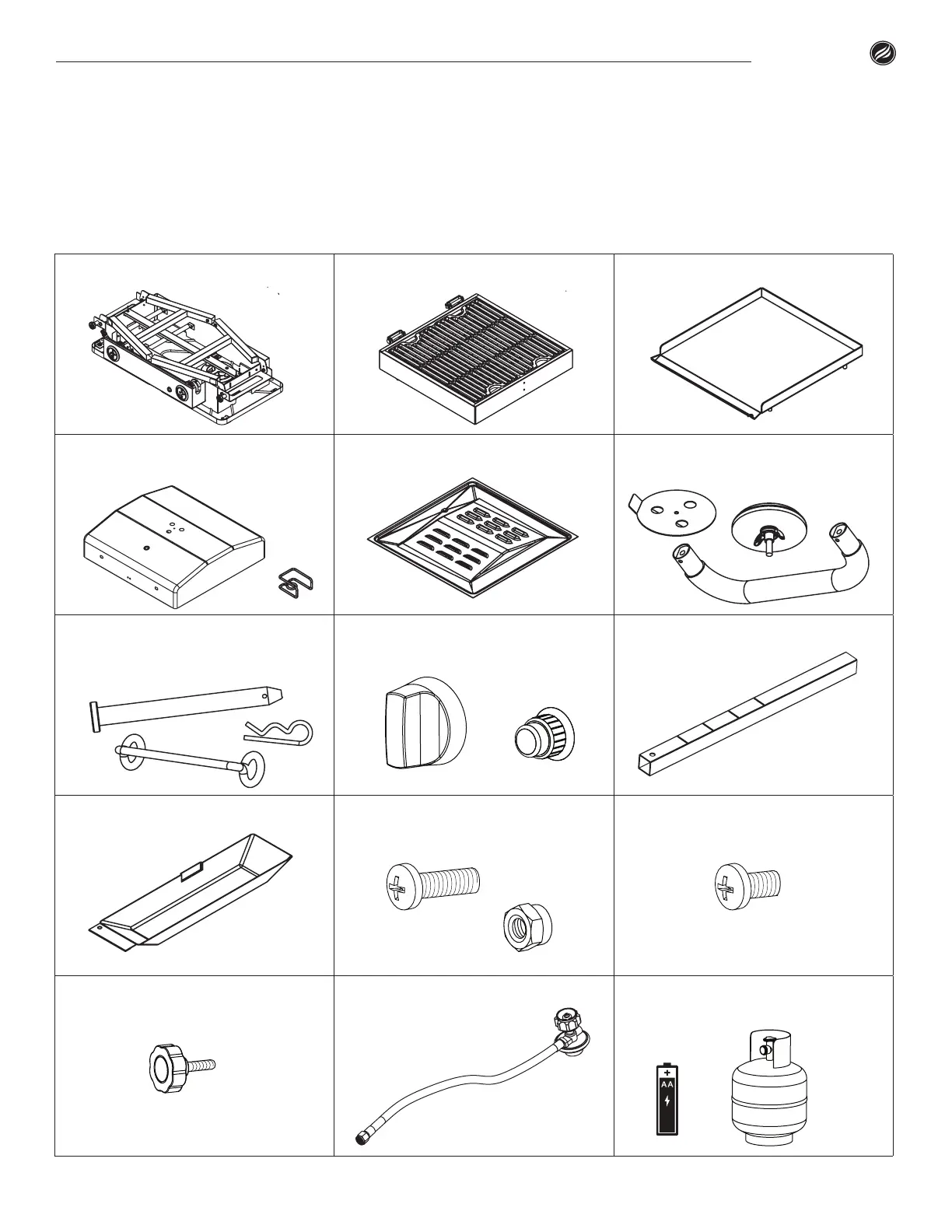

ILLUSTRATED PARTS LIST
01. Body (1 piece) 02. Grill box (1 piece) & Grill grates
(2 pieces)
03. Griddle top (1 piece)
04. Hood (1 piece) & Grill box clip
(2 pieces)
05. Flame tamper (1 piece) 06. Air vent (1 piece) & Themometer
( 1 piece) & Handle (1 peice)
07. Hinge pin (2 pieces) & Pin clip (2
pieces) & Spacing ring (2 pieces)
08. Control knob (2 pieces) &
Ignition button (1 piece)
09. Leg extensions (4 pieces)
10. Grease cup (2 pieces) 11. M4x12 Bolt (1 piece) & M6 Nut
(2 pieces)
12. M8x19 Bolt (2 pieces)
13. Small thumbscrew (4 pieces) 14. Regulator Hose (1 piece) NOT INCLUDED - 20Lb Propane
Tank & AA Battery
Tailgater Combo | Parts & Assembly
01
