ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
Griddle assembly involves large components; therefore, it is advised to have
two people assemble the unit.

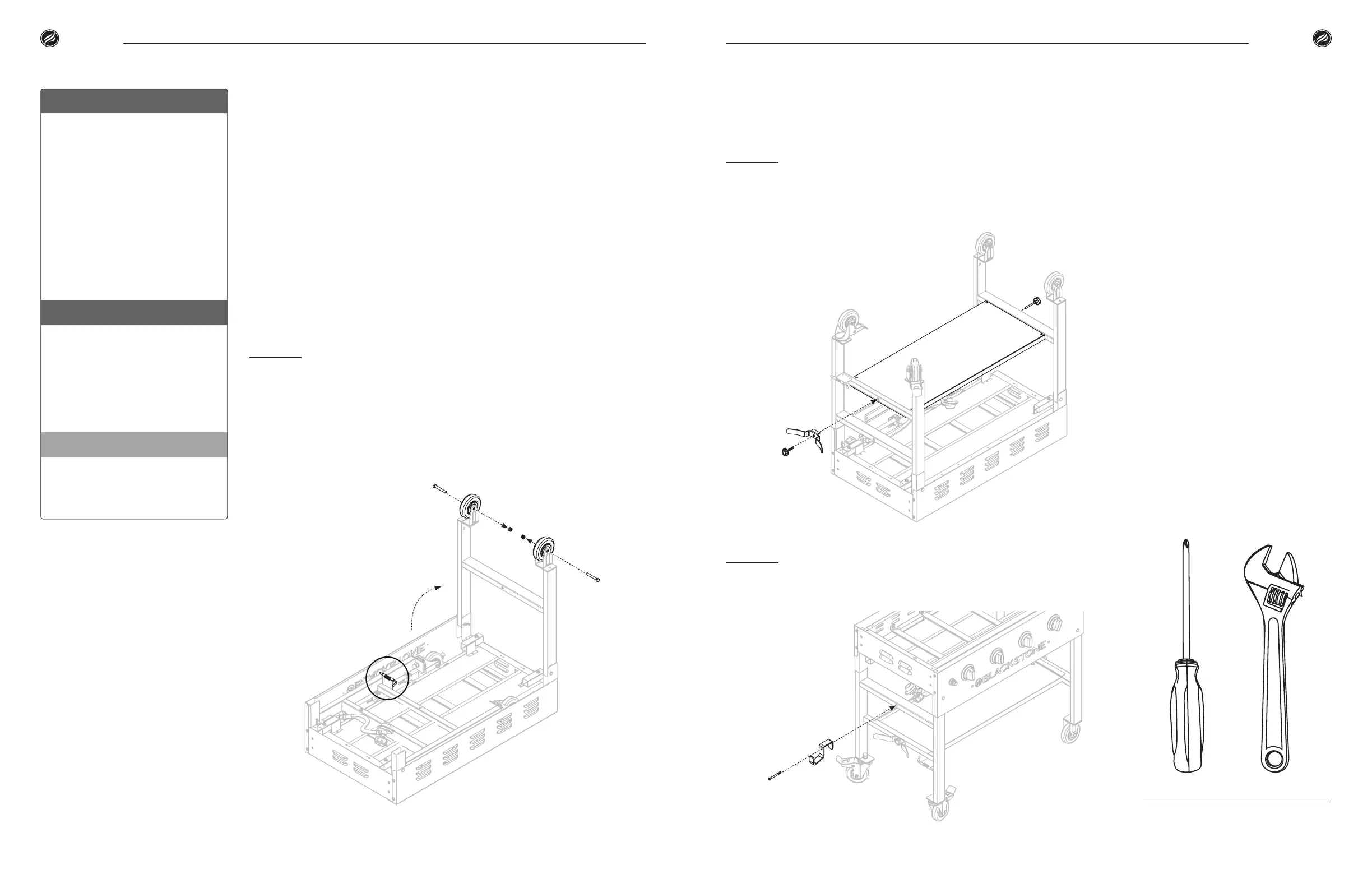

STEP
Remove the griddle body from the packaging and lay it upside
down on a smooth, at surface with the help of another person.
Pull the locking pin to release the legs and raise them to a vertical position.
Attach the two (2) wheels to the legs as shown. Use an adjustable wrench to
tighten the wheels to the right leg assembly.
STEP
Place the bottom shelf between the legs. On the caster side of
the body, place the propane tank support in place and use the M6x40 thumb
screw to attach the shelf and the support to the griddle body. Use the M6x60
thumb screw to attach the other side of the shelf to the griddle legs.
STEP
With the help of another person, place the griddle on its wheels.
Attach the propane tank hanger with the M6x38 screw, inserting it from the
outside of the unit as shown.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench
