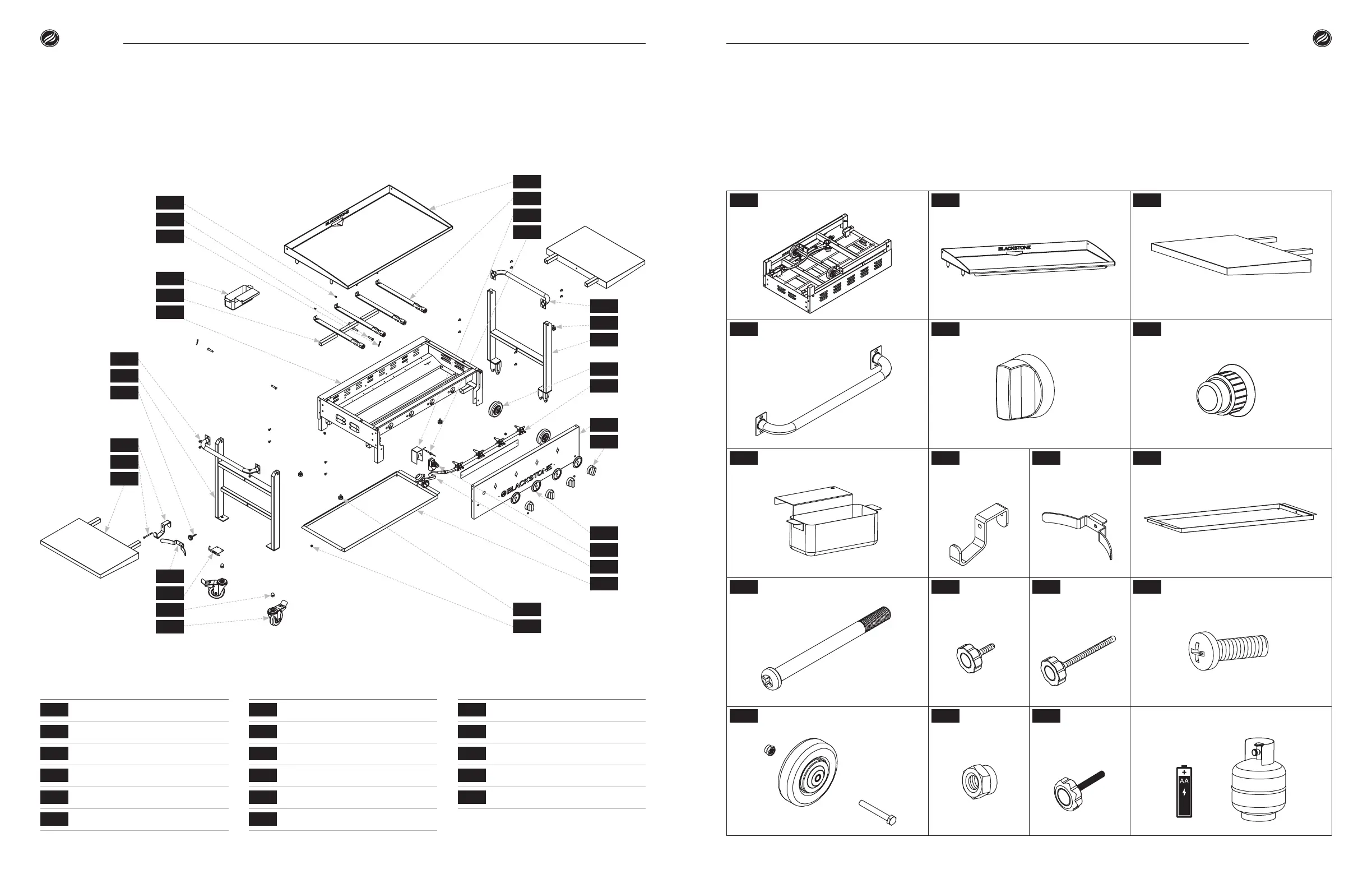

EXPLODED VIEW
PARTS
QTY
1.1a
Front Panel
1
1.1b
Knob Bezel
4
1.2
Regulator
1
1.3
Right Leg Assembly
1
1.4a
Le Leg Assembly
1
1.4b
Caster
2
PARTS
QTY
1.4c
Cap Nut
2
1.4d
Locking Pin
1
1.5a
Burner Tube
4
1.5b
Spacer Tube
1
1.6
Gas Rail
1
1.7a
M5 Screw
4
PARTS
QTY
1.7b
Fixed Pin
4
1.7c
Shutter Pin
4
1.8
Flame Transfer Channel
3
1.9a
Ignition Heat Shield
1
1.9b
Ignition Needle
1
ASSEMBLY GUIDE
ILLUSTRATED PARTS LIST
1 Body (1 piece) 2 Griddle Top (1 piece) 3 Side Shelves (2 pieces)
4 Side Handles (2 pieces) 5 Control Knobs (4 pieces) 6 Ignitor Button (1 piece)
7 Grease Cup (1 piece) 8 Propane
Tank Hanger
(1 piece)
9 Propane
Tank Holder
(1 piece)
10 Bottom Tray (1 piece)
11 M6x38 Screws (4 pieces) 12 Small
Thumb Screws
(4 pieces)
13 M6x60
Thumb Screw
(1 piece)
14 M6x12 Screws (8 pieces)
15 Wheels (2 pieces) 16 M3 Nut
(1 piece)
17 M6x40
Thumb Screw (1
piece)
NOT INCLUDED - 20lb LP Gas Tank &
AA Battery
1
1.7a
1.1b
1.1a
1.6
15
1.2
2
1.5b
1.5a
4
3
1.9b
1.9a
5
1.3
13
17
12
16
7
1.7b
1.7c
1.4a
10
1.4b
1.4c
1.4d
9
11
8
14
6
