Black Stone 1935 - Griddle Parts Identification; Griddle Body and Top; Frame and Leg Assembly; Side Shelf and Grease Cup

ENGLISHENGLISH
| Owner’s Manual
blackstoneproducts/support.com
ENGLISH
TOOLS NEEDED: Phillips head screwdriver
& Adjustable wrench
TOOL NEEDED:
Phillips head screwdriver
TOOL NEEDED:
Adjustable wrench
TOOLS NEEDED: Phillips head screwdriver
& Adjustable wrench
ENGLISH
NOT INCLUDED:
20 lb (9 kg) LPG tank & AA Battery
NOT INCLUDED:
20 lb (9 kg) LPG tank
NOT INCLUDED:
20 lb (9 kg) LPG tank & AA Battery
NOT INCLUDED:
20 lb (9 kg) LPG tank
NOT INCLUDED:
AA Battery
NOT INCLUDED:
1 lb (453 g) LPG bottle
NOT INCLUDED:
1 lb (453 g) LPG bottle
ENGLISH
ASSEMBLY GUIDE

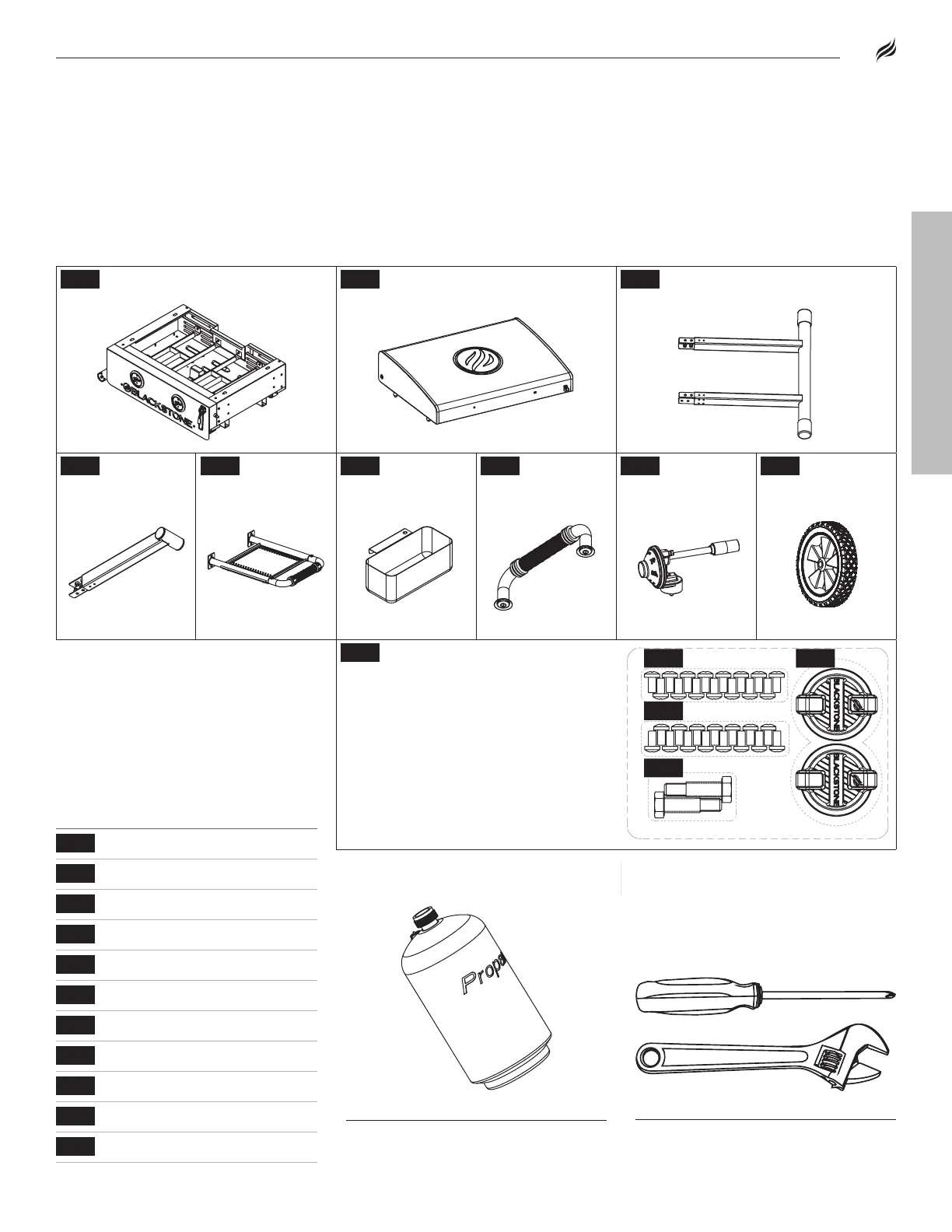

ILLUSTRATED PARTS LIST
1 Body (1 piece) 2 Griddle top & Hood (1 piece) 3 Lower leg assembly (1 piece)
4 Upper legs
(2 pieces)
5 Side shelf
(1 piece)
6 Grease cup
(1 piece)
7 Hood
handle (1 piece)
8 Regulator
(1 piece)
9 Wheels
(2 pieces)
10 Hardware pack (1 piece)
a. M6x12 bolts (15 pieces) (15 pieces)
b. M10x17 step bolts (2 pieces)
Bolt sleeves (2 pieces)
c. Control knobs (2 pieces)
PARTS
QTY
1.6d
Wheeled leg assembly
1
1.7
Ignition needles
2
1.8
H burners
2
1.9
Gas rail
1
2.1
Griddle top
1
2.2
Hood
1
3.1
Lower leg caps
2
4.1
Upper leg caps
4
5.1
Side shelf support bars
2
5.2
Side shelf handle
1
7.1
Hood handle bezels
2
10a
10b
10a 10c
Model 1935
05
Assembly Guide
