Black Stone 2020 - Assembly Guide; Exploded View and Parts List

ENGLISH
BLACKSTONEPRODUCTS.COM/SUPPORT
OWNER’S MANUAL | ASSEMBLY GUIDE MODEL: 
ASSEMBLY GUIDE

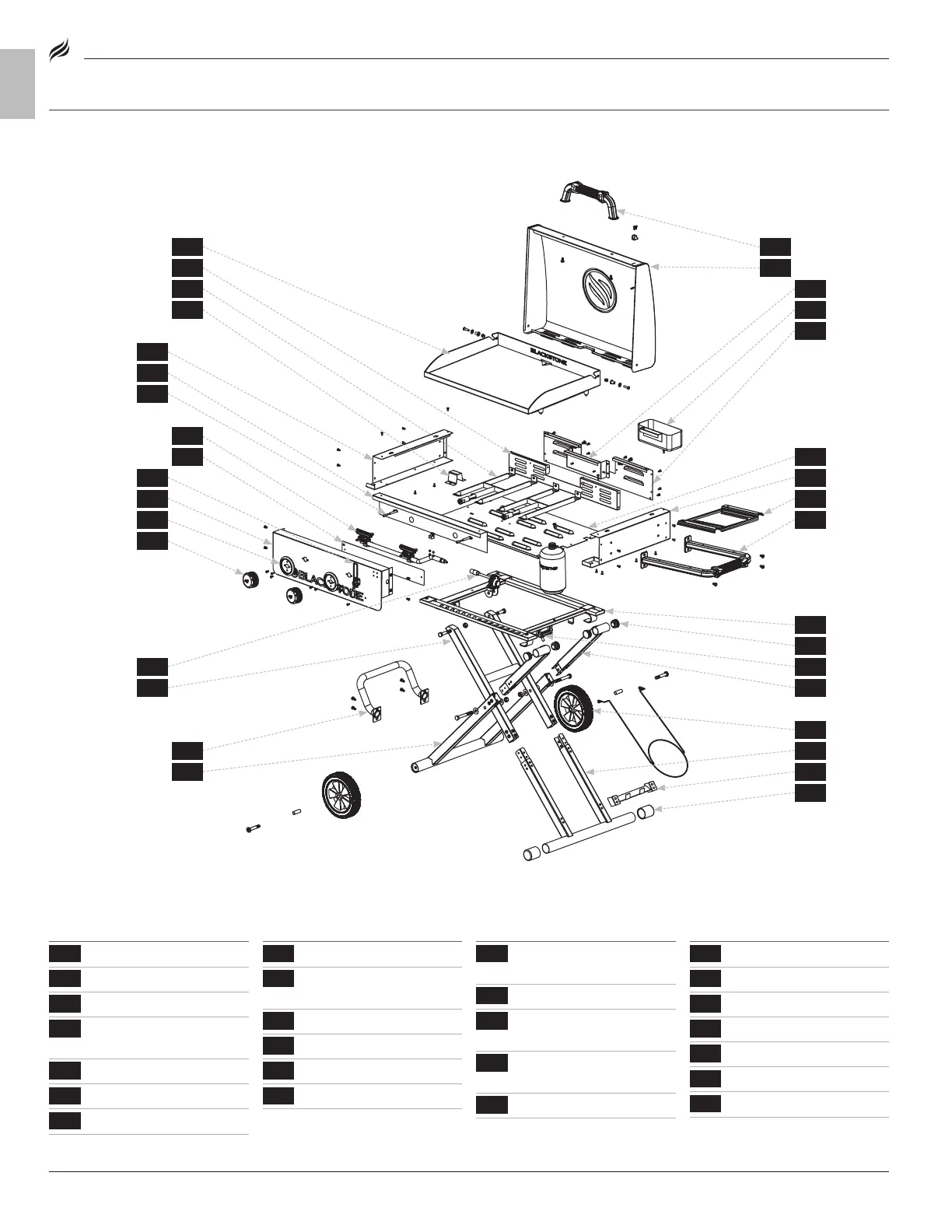

EXPLODED VIEW
PARTS LIST
PARTS
QTY
1.1a
Control panel

1.1b
Control knob bezels

1.1c
Control knobs 
1.1d
Orange background
panel

1.1e
Buckle assembly 
1.2a
Left side panel 
1.2b
Right side panel 
PARTS
QTY
1.3a
Rear panel

1.3b
Grease cup inset
panel

1.4a
Bottom panel 
1.4b
Hat channel 
1.5a
Front bale panel 
1.5b
Rear bale panel 
PARTS
QTY
1.6a
Griddle body rein-
forcement panel

1.6b
Latch assembly

1.6c
Pivoting leg
assembly

1.6d
Wheeled leg
assembly

1.7
Ignition needles 
PARTS
QTY
1.8
H burners

1.9
Gas rail

2.1
Griddle top 
2.2
Hood 
3.1
Lower leg caps 
4.1
Upper leg caps 
6.1
Side shelf frame 
5 3
1.1a
1.6a
1.2b
1.9
1.1d
1.6d
1.4a
3.1
1.1b
4
2.2
1.3a
1.1e
1.7
4.1
1.1c
1.3b
2.1
1.2a
1.8
1.5b
1.6c
7
1.6b
10
8
1.5a
1.4b
9
6
13
6.1

