ASSEMBLY GUIDE

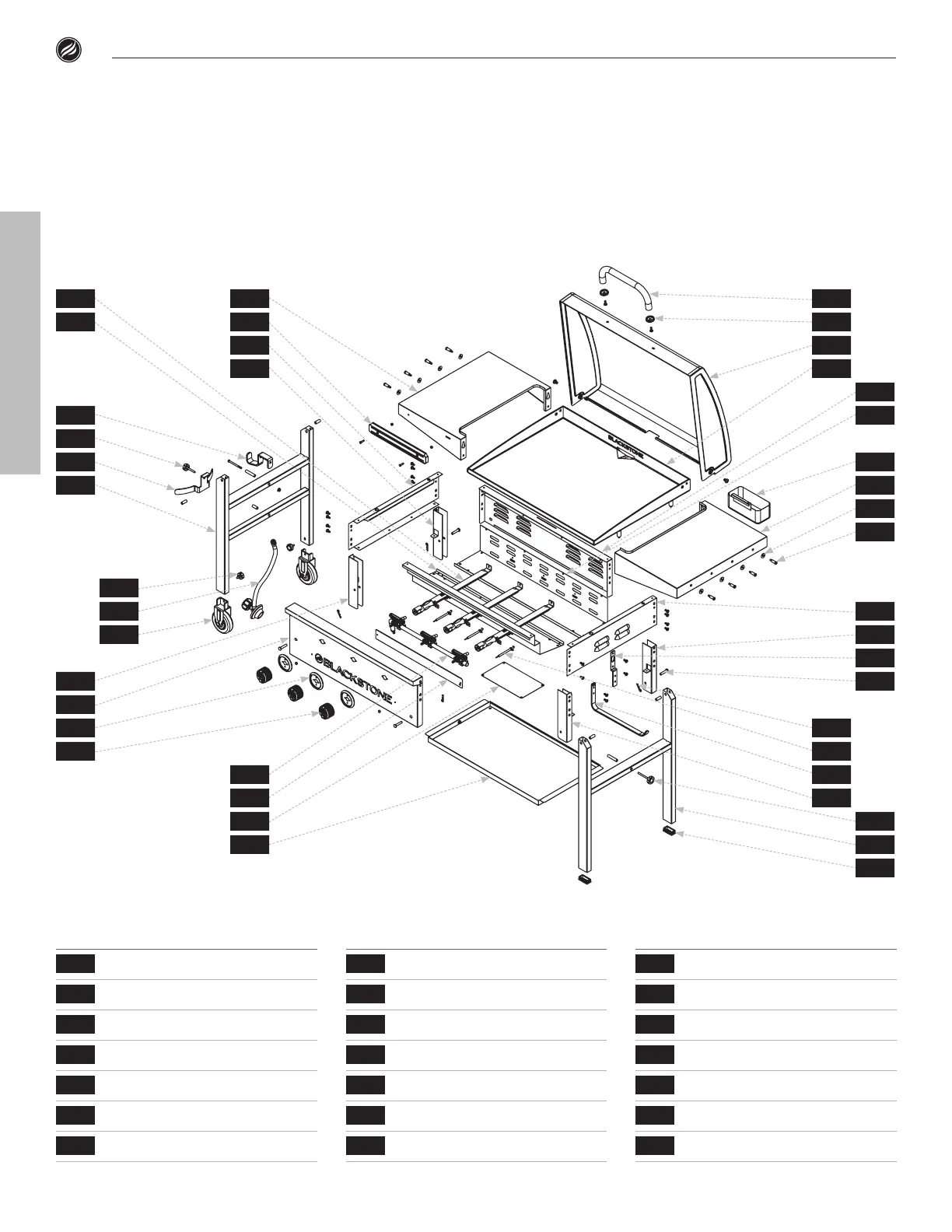

EXPLODED VIEW
PARTS
QTY
1.1a
Control panel
1
1.1b
Control knobs
3
1.1c
Control knob bezels
3
1.1d
Orange background panel
1
1.2a
Front bae panel
1
1.2b
Rear bae panel
1
1.2c
LPG tank heat shield
1
PARTS
QTY
1.3a
Le side panel
1
1.3b
Right side panel
1
1.3c
Back side panel
1
1.4a
Le front U shape sheet
1
1.4b
Le rear U shape sheet
1
1.4c
Right front U shape sheet
1
1.4d
Right rear U shape sheet
1
PARTS
QTY
1.5a
Le leg assembly
1
1.5b
Right leg assembly
1
1.5c
Leg caps
2
1.5d
Shutter pins
4
1.5e
Fixing pins
4
1.6
Ignition needles
3
1.7
Gas rail
1
1.2c
13
7
19
4
10
14
8
20
5
11
3
9
6
18
12
1.1a
4.1
1.4d
1.3a
1.6
1.1d
1.5c
1.4a
1.9
1.1b
11.1
1.5a
1.3b
1.7
1.4b
1.2a
2.1
1.1c
1.5b
1.3c
1.8
1.2b
1.5e
1.5d
1.4c
2.2
