OWNER’S MANUAL | ASSEMBLY GUIDE
ASSEMBLY INSTRUCTIONS
Find a large, clean area to assemble your appliance.
Remove all packing material before assembling.
 CAUTION
Sharp edges. Wear gloves while assembling.
NOT INCLUDED (OPTIONAL):
Two (2) D batteries
ELECTRIC REQUIREMENTS:
120V 60Hz
 CAUTION
Heavy pieces. Two people should assemble this appliance.
 CAUTION
Hot appliance. The hood MUST be open while the burner is lit.
NOTICE
Place appliance on a heat-resistant and flame-resistant
surface while in use.
NOTICE
DO NOT leave the hood closed for more than 10 minutes while
cooking.
NOTICE
• DO NOT mix old and new batteries.
• DO NOT mix alkaline, standard (carbon-zinc) or rechargeable
(ni-cad, ni-mh, etc.) batteries.
NOTICE
DO NOT place items on stabilizing shelf during use.
TOOLS NEEDED:
#3 Phillips head screwdriver &
Adjustable wrench
TOOL NEEDED:
#3 Phillips head screwdriver
TOOL NEEDED:
Adjustable wrench
TOOL NEEDED:
5mm Allen wrench
NOT INCLUDED:
LPG cylinder
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar to
LPG cylinder must include collar to
protect LPG cylinder valve.
protect LPG cylinder valve.
NOT INCLUDED:
17" griddle base
NOT INCLUDED:
22" griddle base
NOT INCLUDED:
AA battery
NOT INCLUDED:
LPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
NOT INCLUDED:
One (1) AA battery (for ignition)
Optional four (4) AA batteries
(for the motor)
TOOLS NEEDED:
#3 Phillips head screwdriver &
Adjustable wrench
TOOL NEEDED:
#3 Phillips head screwdriver
TOOL NEEDED:
Adjustable wrench
TOOL NEEDED:
5mm Allen wrench
NOT INCLUDED:
LPG cylinder
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar to LPG cylinder must include collar to
protect LPG cylinder valve. protect LPG cylinder valve.
NOT INCLUDED:
17" griddle base
NOT INCLUDED:
22" griddle base
NOT INCLUDED:
AA battery
NOT INCLUDED:
LPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
NOT INCLUDED:
One (1) AA battery (for ignition)
Optional four (4) AA batteries
(for the motor)
TOOLS NEEDED:
#3 Phillips head screwdriver &
Adjustable wrench
TOOL NEEDED:
#3 Phillips head screwdriver
TOOL NEEDED:
Adjustable wrench
TOOL NEEDED:
5mm Allen wrench
NOT INCLUDED:
LPG cylinder
Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)Size: 18 x 12 in (45 x 30 cm), 20 lb (9 kg)
LPG cylinder must include collar to LPG cylinder must include collar to
protect LPG cylinder valve. protect LPG cylinder valve.
NOT INCLUDED:
17" griddle base
NOT INCLUDED:
22" griddle base
NOT INCLUDED:
AA battery
NOT INCLUDED:
LPG cylinder
Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)Size: 4 x 8 in (10 x 20 cm), 1 lb (453 g)
NOT INCLUDED:
One (1) AA battery (for ignition)
Optional four (4) AA batteries
(for the motor)
MODEL: 

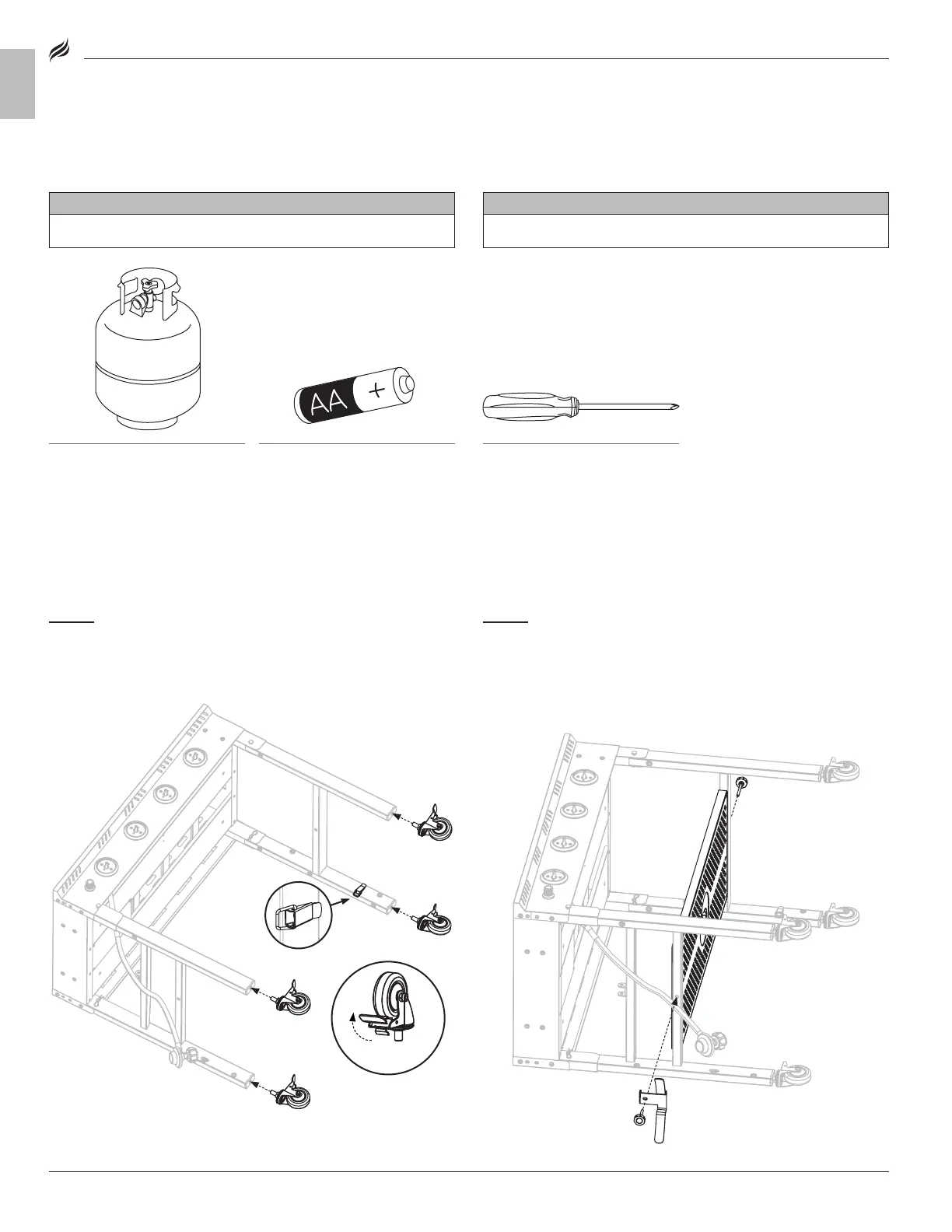

STEP 01
With the help of another person, remove the griddle body
from the packaging and lay it on its back on a smooth, flat surface.
Unlatch and unfold the legs. Screw the four (4) caster wheels to the
leg assemblies. (Ensure that the caster wheels are locked.)
STEP 02
Use one (1) large thumb screw [e.] to attach the stabilizing
shelf to the right leg assembly.
Use one (1) medium thumb screw [f.] to attach the LPG support and
the stabilizing shelf to the left leg assembly.
Note: This shelf is integral to the stability of the appliance
while in use.
Push to lockPush to lock
[e.]
[f.]

