OWNER’S MANUAL | ASSEMBLY GUIDE MODEL: 6138
ASSEMBLY GUIDE

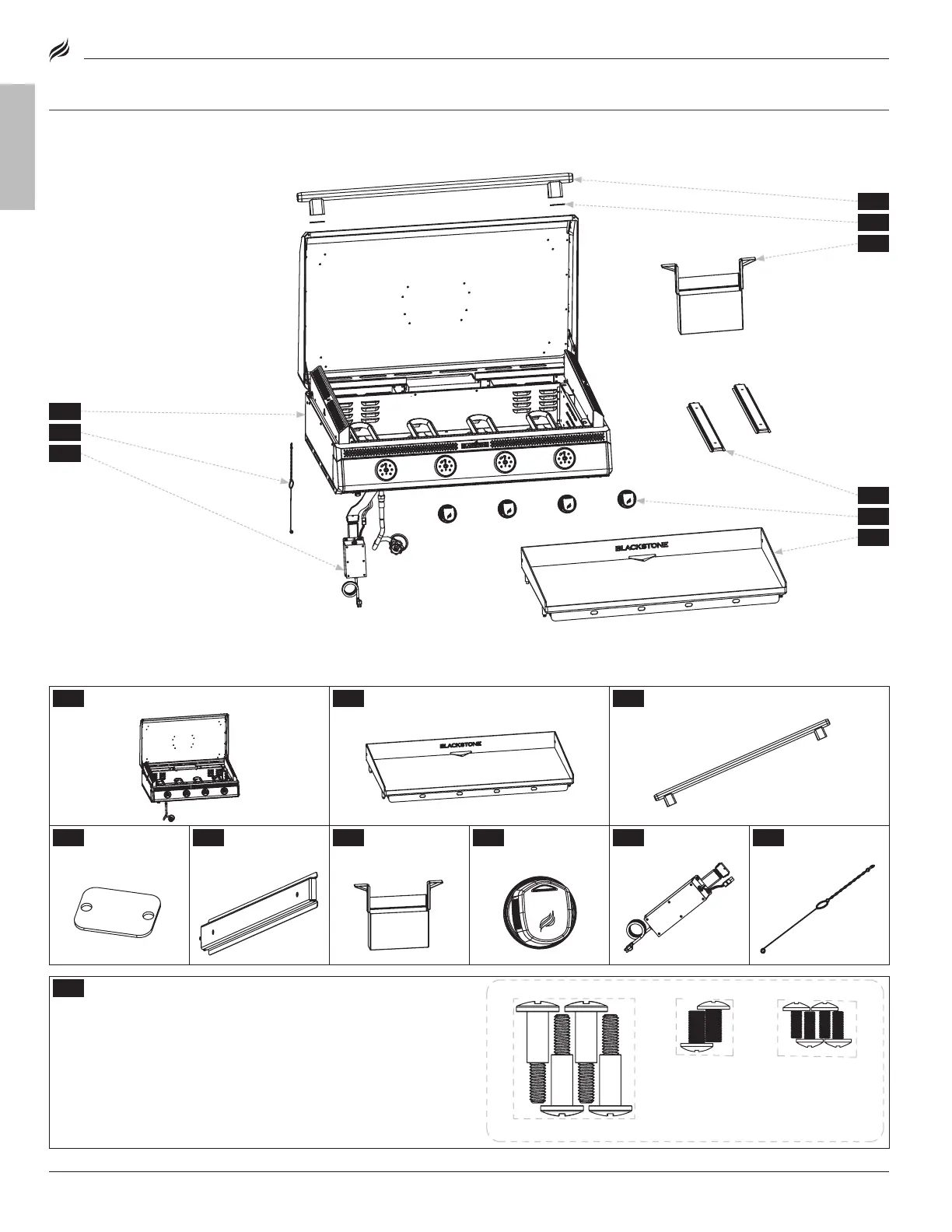

ExPLODED VIEW
1
Griddle body (1 piece)
2
Griddle top (1 piece)
3
Hood handle (1 piece)
4
Mica washers
(2 pieces)
5
Hat channels
(2 pieces)
6
Grease cup
(1 piece)
7
Control knobs
(4 pieces)
8
PCB box
(1 piece)
9
Match holder
(1 piece)
10
Hardware pack (1 piece)
a. M6 shoulder bolts (4 pieces)
b. M5x10 screws (2 pieces)
c. M4x10 screws (4 pieces)
PARTS LIST
[a.] [b.]
[c.]
8
1
2
3
4
5
6
7
9

