Black Stone OMNIVORE 2322 User Manual

ENGLISH
BLACKSTONEPRODUCTS.COM/SUPPORT
OWNER’S MANUAL | ASSEMBLY GUIDE MODELS: 2322 • 2322CA

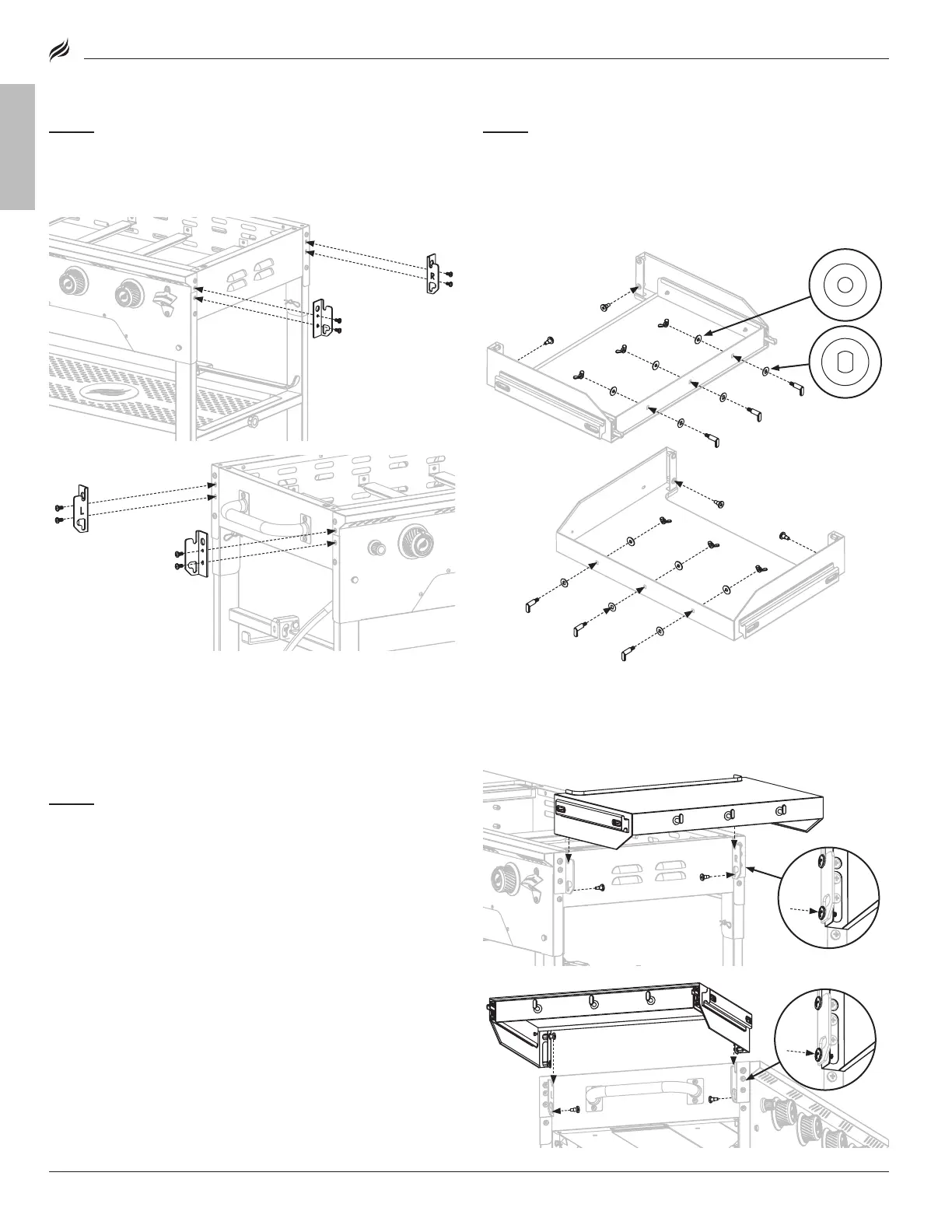

STEP 09
Hook the right side shelf’s upper step bolts on the side shelf
brackets. Use two (2) M6 step bolts [b.] to secure the side shelf to
the side shelf brackets.
Repeat with the left side shelf.
STEP 07
Use four (4) M6x12 bolts [a.] to attach one (1) side shelf
bracket (L) and one (1) side shelf bracket (R) to the right side of the
griddle body.
Repeat with the left side of the griddle body.
STEP 08
Thread two (2) M6 step bolts [b.] into the upper holes of the
left side shelf.
Use three (3) wing nuts [e.], three (3) steel washers [h.], and three
(3) slotted washers [g.] to attach three (3) side shelf hooks [f.] to the
left side shelf.
Repeat with the right side shelf.
[h.]
[g.]
[b.]
[b.]
L
L
R
R
L
L
R
R

