4. ASSEMBLY INSTRUCTION.

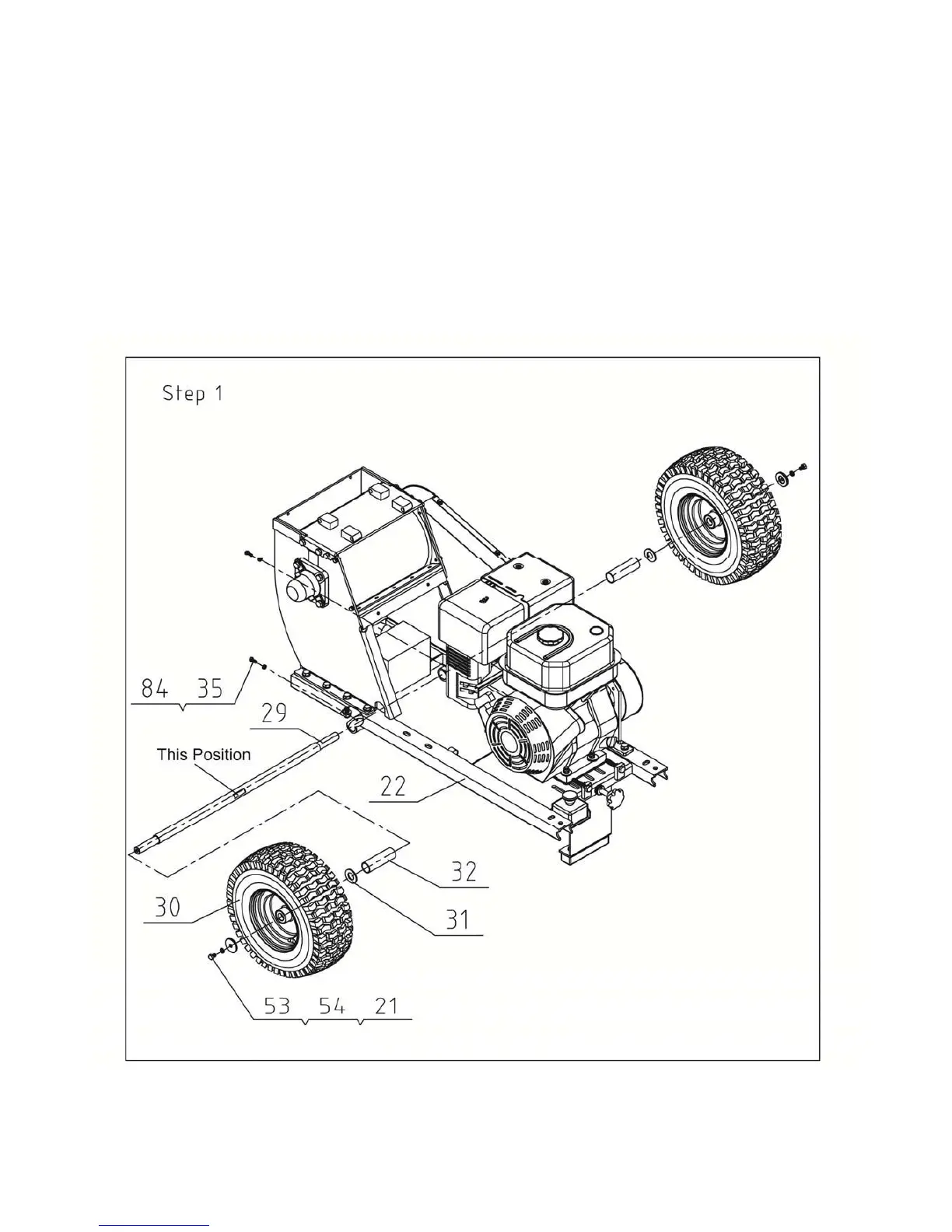

Step 1: Put wheel (#30), flat washer Ø20 (#31), wheel bushing (#32) and wheel

axle (#29) to the base (#22) using hex bolt M8x25(#53),lock washer Ø8(#54)

and tire gasket(#21). Tighten the wheel axle (#29) using hex bolt M6x16

(#35) and hex nut M6 (#84).

Attention: Locking the Wheel Axle (#29) at this position by using a 12"

Adjustable spanner when fixing the hex bolt M8X (#53) to the wheel.
