Black Tools GTS-1500-E - Step 2: Hopper Assembly Installation

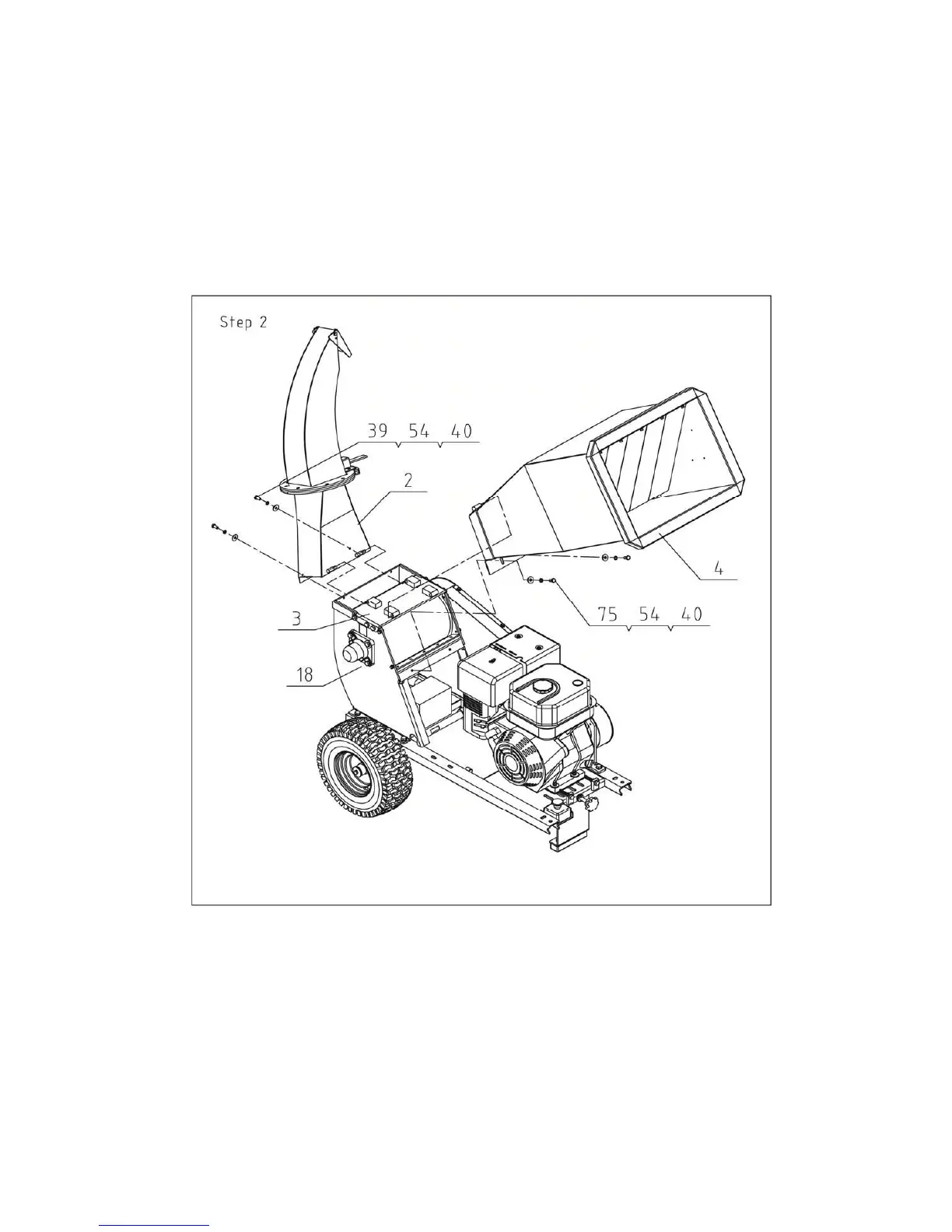

STEP 2:
1.Secure the inlet hopper assembly (#4) to the roller cover plate assembly (#3)
using hex bolt M8x20 (#75), lock washer Ø8 (#54), big flat washer Ø8
(#40).
2. Secure the Outlet Hopper Assembly (#2) to the roller cover plate assembly
(#3) using hex bolt M8x16(#39),lock washer Ø8(#54), big flat washer Ø8(#40).
