Attaching/Removing Belt Clip
Attaching Belt Clip (Figure 3)
Align the screw eyelets of the belt clip with those on
the rear of radio and fasten the belp clip with enclosed
screws.
Removing Belt Clip (Figure 4)
Loosen the screws to remove the belt clip.
Attaching/Removing the Antenna
Attaching the Antenna (Figure 1)
Screw the antenna into the connector at the top of the
UDGLRE\KROGLQJWKHERWWRPRIWKHDQWHQQDDQGWXUQLQJ
it clockwise until secure.
Removing the Antenna (Figure 2)
Rotate the antenna counter clockwise by holding the
bottom of antenna.
8 www.blackboxradios.com

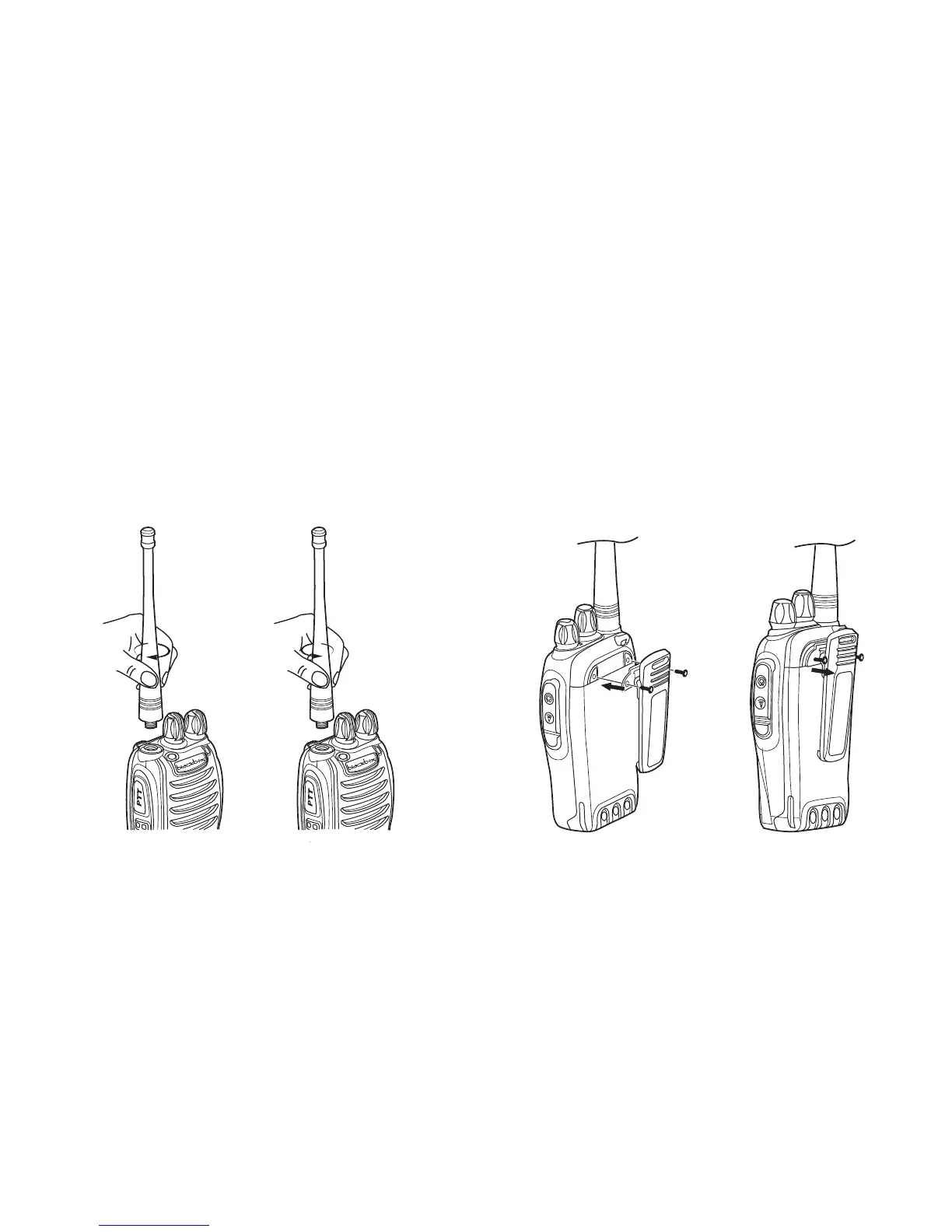

Figure 1 Figure 2
Figure 3 Figure 4
