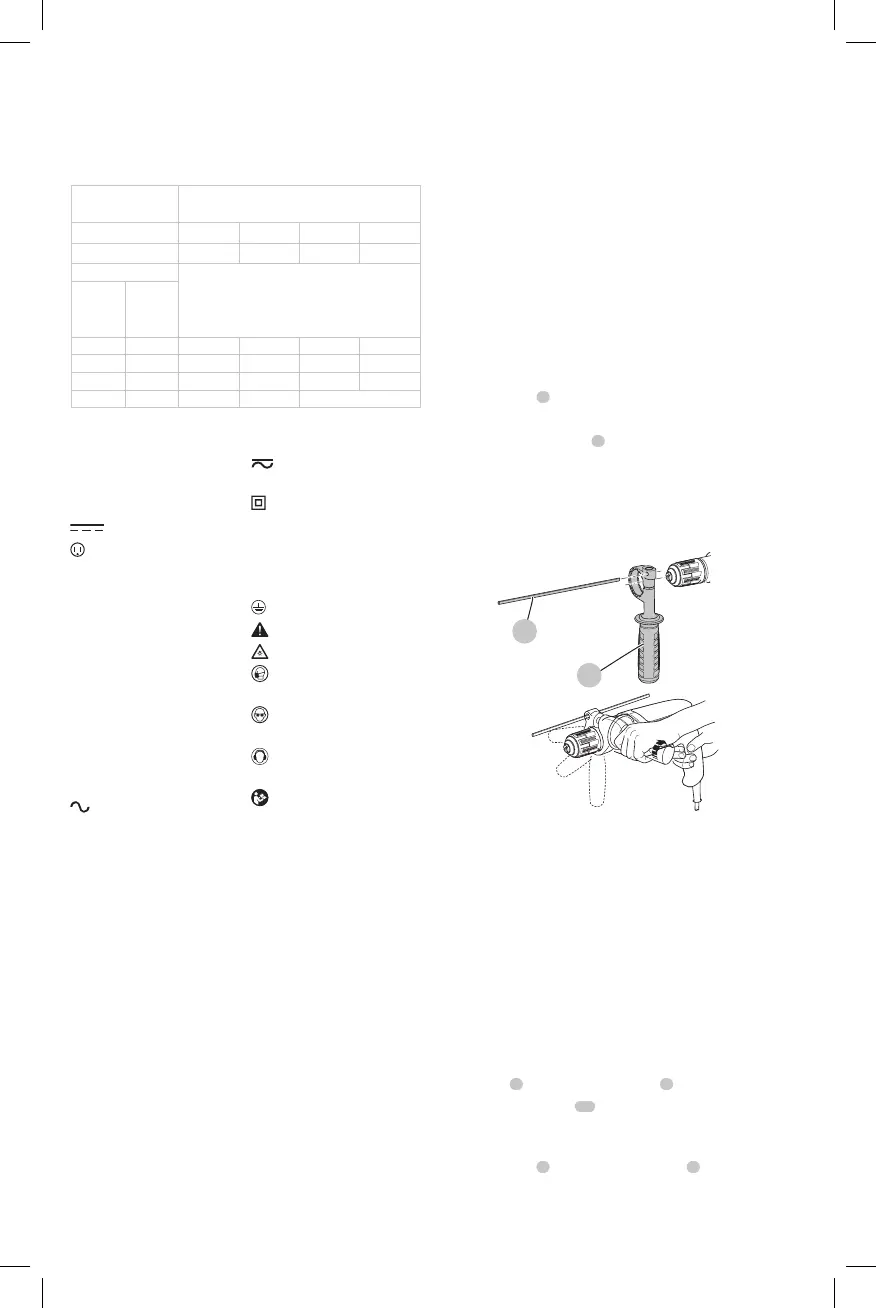

ENGLISH
4
minimum wire size. The following table shows the correct
size to use depending on cord length and nameplate
ampere rating. If in doubt, use the next heavier gauge. The
lower the gauge number, the heavier thecord.
Minimum Gauge for Cord Sets
Volts
Total Length of Cord in Feet
(meters)
120 V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2) 100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating
American Wire Gauge
More
Than
Not
More
Than
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended
The label on your tool may include the following symbols. The
symbols and their definitions are asfollows:
V ......................... volts
Hz .......................hertz
min ..................... minutes
or DC ......direct current
...................... Class I Construction
(grounded)
…/min ..............per minute
BPM .................... beats per minute
IPM ..................... impacts per minute
RPM .................... revolutions per
minute
sfpm ................... surface feet per
minute
SPM .................... strokes per minute
A ......................... amperes
W ........................watts
or AC ...........alternating current
or AC/DC .... alternating or
direct current
...................... Class II
Construction
(double insulated)
n
o
.......................no load speed
n .........................rated speed
......................earthing terminal
.....................safety alert symbol
.....................visible radiation
..................... wear respiratory
protection
..................... wear eye
protection
..................... wear hearing
protection
..................... read all
documentation
SAVE THESE INSTRUCTIONS FOR
FUTURE USE
Motor
Be sure your power supply agrees with the nameplate
marking. Voltage decrease of more than 10% will cause loss
of power and overheating. BLACK+DECKER tools are factory
tested; if this tool does not operate, check power supply.
COMPONENTS (FIG. A)

WARNING: Never modify the power tool or any part
of it. Damage or personal injury couldresult.
Refer to Figure A at the beginning of this manual for a
complete list ofcomponents.
Intended Use
Your BLACK+DECKER hammer drill has been designed for
household, consumer useonly.
DO NOT use under wet conditions or in presence of
flammable liquids orgases.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal
injury, turn unit off and disconnect it from
power source before making any adjustments or
removing/installing attachments or accessories.
An accidental start-up can causeinjury.
Attaching the Side Handle and Depth
Stop (Fig. B)
Your drill is equipped with a side handle, it must be installed
properly to control the drill.
• Turn the grip counterclockwise until you can slide the
side handle
5
onto the front of the tool as shown.
• Rotate the side handle into the desired position.
• Insert the depth stop
8
into the mounting hole
as shown.
• Tighten the side handle by turning the grip clockwise.
• Be sure side handle is secure and will not rotate about
the tool.
Fig. B
5
8
Inserting a Drill Bit or Other Accessory
(Fig. C )

WARNING: Do not attempt to tighten drill bits
(or any other accessory) by gripping the front part
of the chuck and turning the tool on. Damage to
the chuck and personal injury may occur when
changingaccessories.

WARNING: Always ensure the bit is secure before
starting the tool. A loose bit
may eject from tool causing possible personal injury.
• Open the chuck by pressing the manual spindle lock
button
7
and turning the sleeve
9
counter clockwise.
• Insert the bit shaft
10
into the chuck to about 3/4in.
(19 mm) depth, centered in the jaws.
• Firmly tighten the chuck by pressing the manual spindle
lock button
7
and turning the sleeve
9
clockwise until
it is tight.
