9
ENGLISH
(Original instructions)

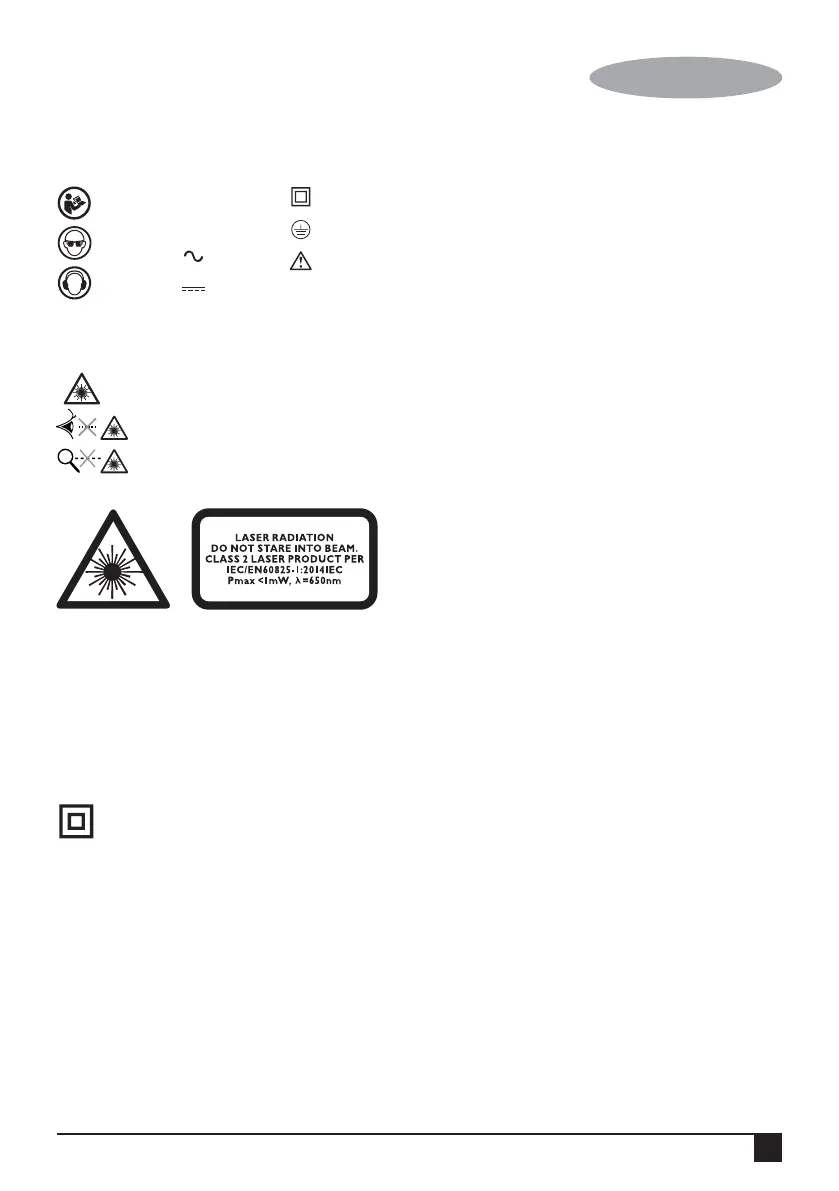

Labels on tool
The label on your tool may include the
following symbols
Laser radiation.
Do not look into the laser beam.
Do not use optical tools to view
the laser beam.
Position of date barcode
The Date Code, which also includes the year
of manufacture, is printed into the housing.
Example:
2017 XX JN
Year of manufacturing
Electrical safety
This tool is double insulated;
therefore no earth wire is required.
Always check that the power supply
corresponds to the voltage on the
rating plate.
• If the supply cord is damaged, it must be
replaced by the manufacturer or an
authorised BLACK + DECKER Service
Centre in order to avoid a hazard.
Features
This tool includes some or all of the
following features.
1. On/off switch
2. Lock-off button
3. Main handle
4. Secondary handle
5. Mitre angle scale
6. Locking knob for mitre angle adjustment
7. Parallel fence
8. Shoe
9. Saw blade
10. Saw blade guard
11. Depth of cut scale
12. Locking knob for depth of cut adjustment
13. Saw dust outlet
14. Saw blade hex wrench
21. Spindle lock button
Figures G & H (CS1250L model only)
20. Laser sight
Assembly
Warning! Before attempting any of the
following operations, make sure that the tool
is switched o and unplugged and that the
saw blade has stopped.
Removing and fitting a saw blade
(fig. B)
Removing
• Keep the spindle lock button (21)
depressed and rotate the blade until the
spindle lock engages.
• Loosen and remove the blade retaining
screw (15) by turning it counterclockwise
using the hex wrench (14).
• Remove the outer washer (16).
• Remove the saw blade (9).
NOTICE: Never engage the spindle lock
while the saw is running. Never turn the saw
on while the spindle lock is engaged. Severe
damage to the saw may result.
Read
Instructions
Manual
Use Eye
Protection
Use Ear
Protection
V ........
Volts
A ........ Amperes
Hz .......
Hertz
W ........ Watts
min ..... minutes
..... Alternating
Current
..... Direct
Current
n
0
....... No-Load
Speed
...... Class II
Construction
.... Earthing
Terminal
.... Safety Alert
Symbol
.../min.. Revolutions
or Recipro-
cation per
minute
