Belt replacement
The belt will need replacing if it has been damaged, worn, or it has
reached 250 hours of use.
To replace the belt follow these steps;
1. Undo and remove the belt guard twist locks (Pic. 17). To
remove twist locks use pliers to rotate the twist locks by 90°
then remove.
2. Remove the front of the belt guard.
3. Loosen the motor bolts.
4. Remove the belt.
5. Clean both pulleys with a dry soft cloth.
DO NOT USE any lubricants or solvents as this can damage the new
belt by causing slippage.
6. Fit new belt.
7. Set correct belt tension.
8. Check the belt straightness and tension, adjust if required.
9. Replace the front of the belt guard.
10. Replace then tighten the belt guard twist locks. To replace
twist locks use pliers to rotate the twist locks by 90°.
The replacement belt is similar to (Bosch Style) 13A1230.
Safety valve
NOTE: When checking the safety valve ALWAYS wear safety
glasses.
To check the operation of the safety valve the air tank will need
to be full. Gently pull the ring outwards. This should release air
under pressure. Release the ring and this should stop the air
out flow immediately, once pressure decreases. Pic. 16.
If the safety valve does NOT work in this manner, STOP the air
compressor immediately and have the air compressor checked
/ serviced by an authorised service facility.

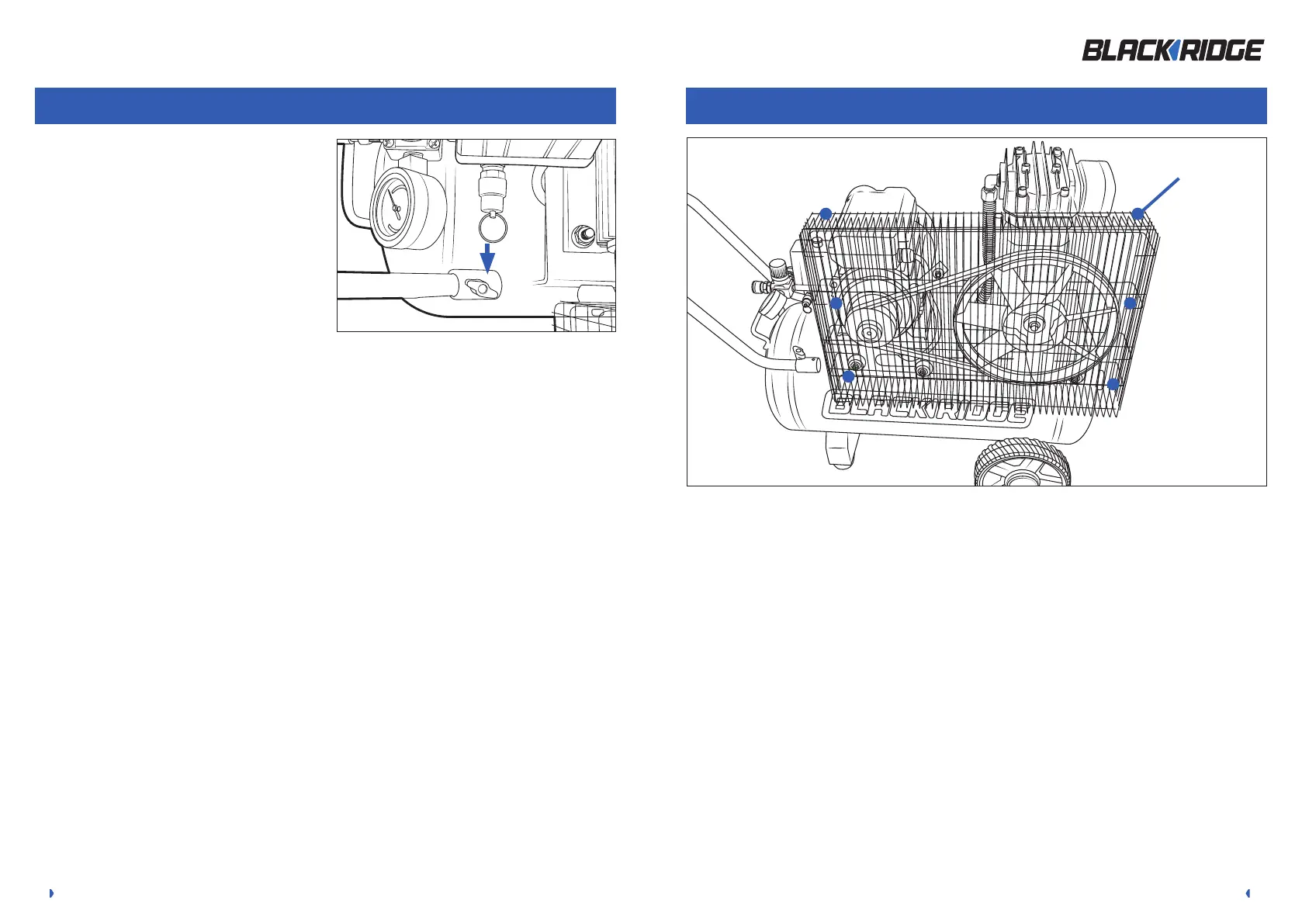

PIC. 16PIC. 16
PIC. 17
PIC. 16
Twist Locks
PULL TO
CHECK
