Patient Ground
The CerePlex Direct has a touch-proof connector to patient ground located on
the front panel to the right of the digital headstage digital headstage banks
labeled ‘G.’ The digital data cable and headstage also communicate patient
ground through the pin 19 of the digital headstage input. The touchproof
connector provides an additional low-impedance connection to patient ground.
NeuroMotive Camera Sync
If using the NeuroMotive video tracking system, the CerePlex Direct can be
hardware synchronized with the tracking and recording system. The BNC
connector outputs a TTL digital signal to trigger the NeuroMotive camera.
CerePlex Direct Software Suite
The CerePlex Direct Software Suite consists of two applications that run simultaneously:
nPlayServer and Central Software Suite via nPlay File Control.
Upon running CerePlex Direct Software Suite, a window titled, ‘CerePlex Direct’ will briefly
open:

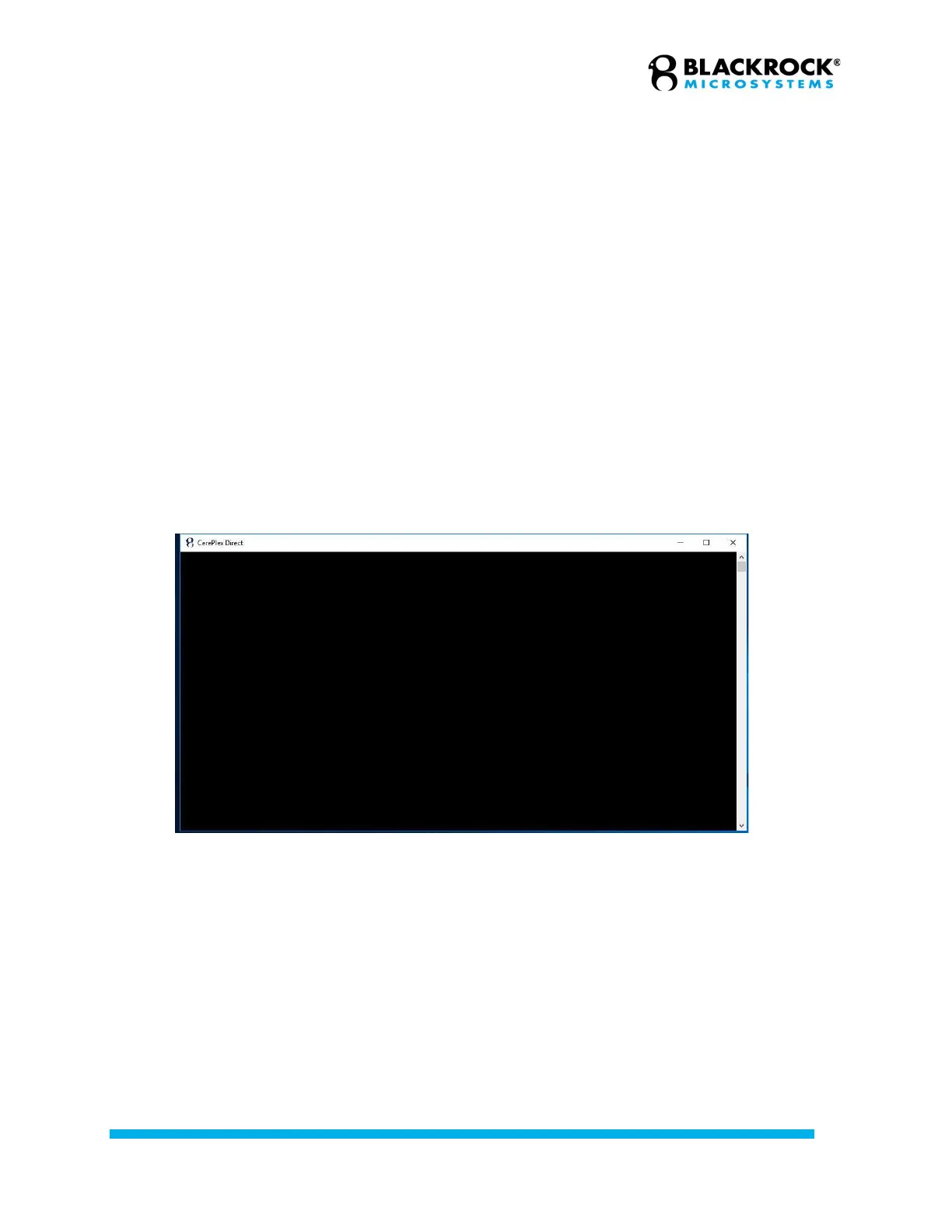

Temporary Window Indicating a CerePlex Direct Software
To Next Page
Loading...
