Blackshape Prime - 1.3. Three-View Drawing of the Airplane

CF 300 – Flight Manual sect. 1 - General
BY BLACKSHAPE
Document n° BPU/FM003
Rev 3 dtd 03/06/2014 Page 3
-66

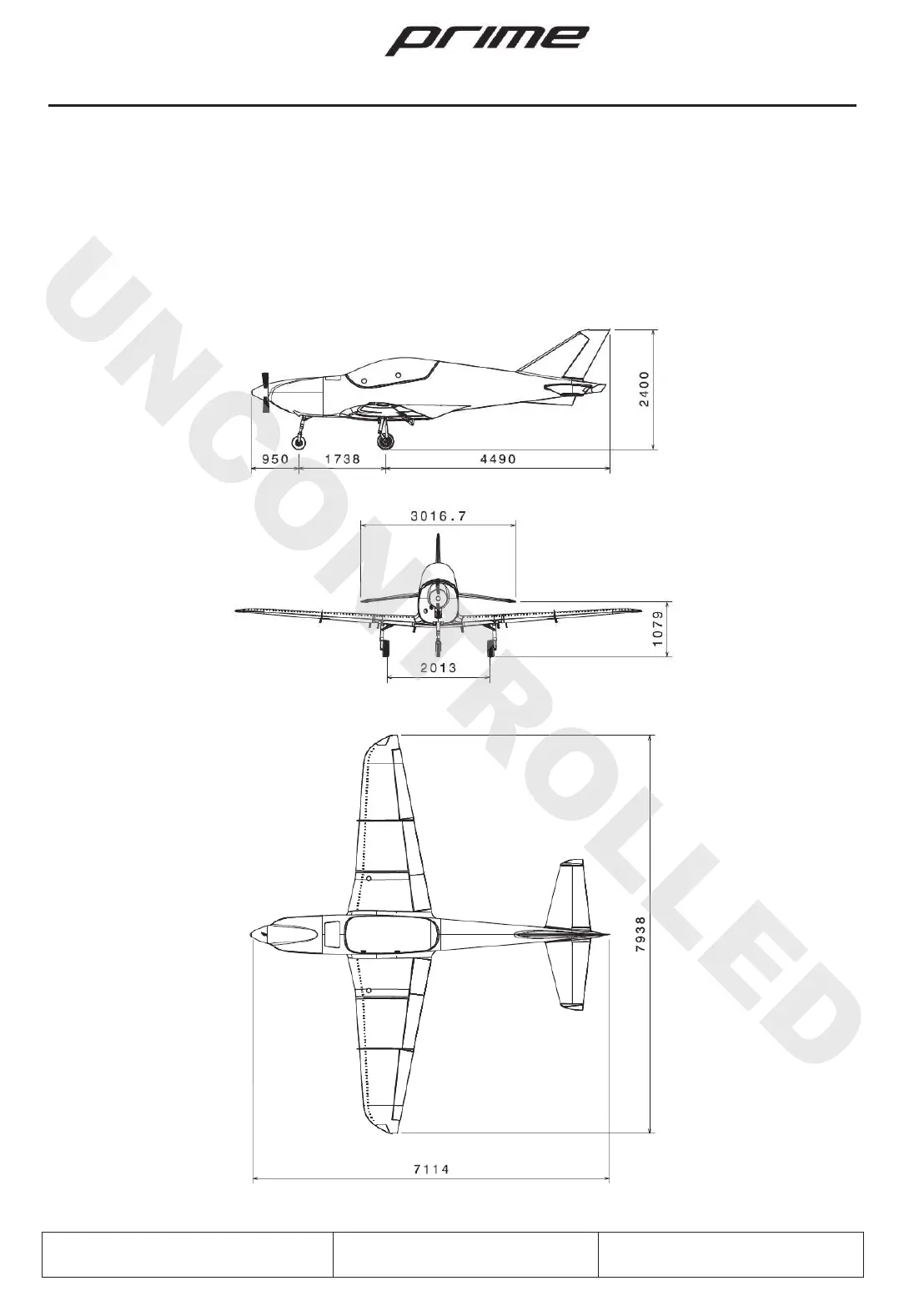

1.3. THREE -VIEW DRAWING OF THE AIRPLANE
The following figure is a three-view drawing of the aircraft CF-300.
· The dimensions listed here (in mm) correspond to an aircraft weighting 472.5 kg with tires inflated at
normal operating pressure.
UNCONTROLLED
