Technical Specification
Power: 22V DC
Maximum Current Draw: 1.0A

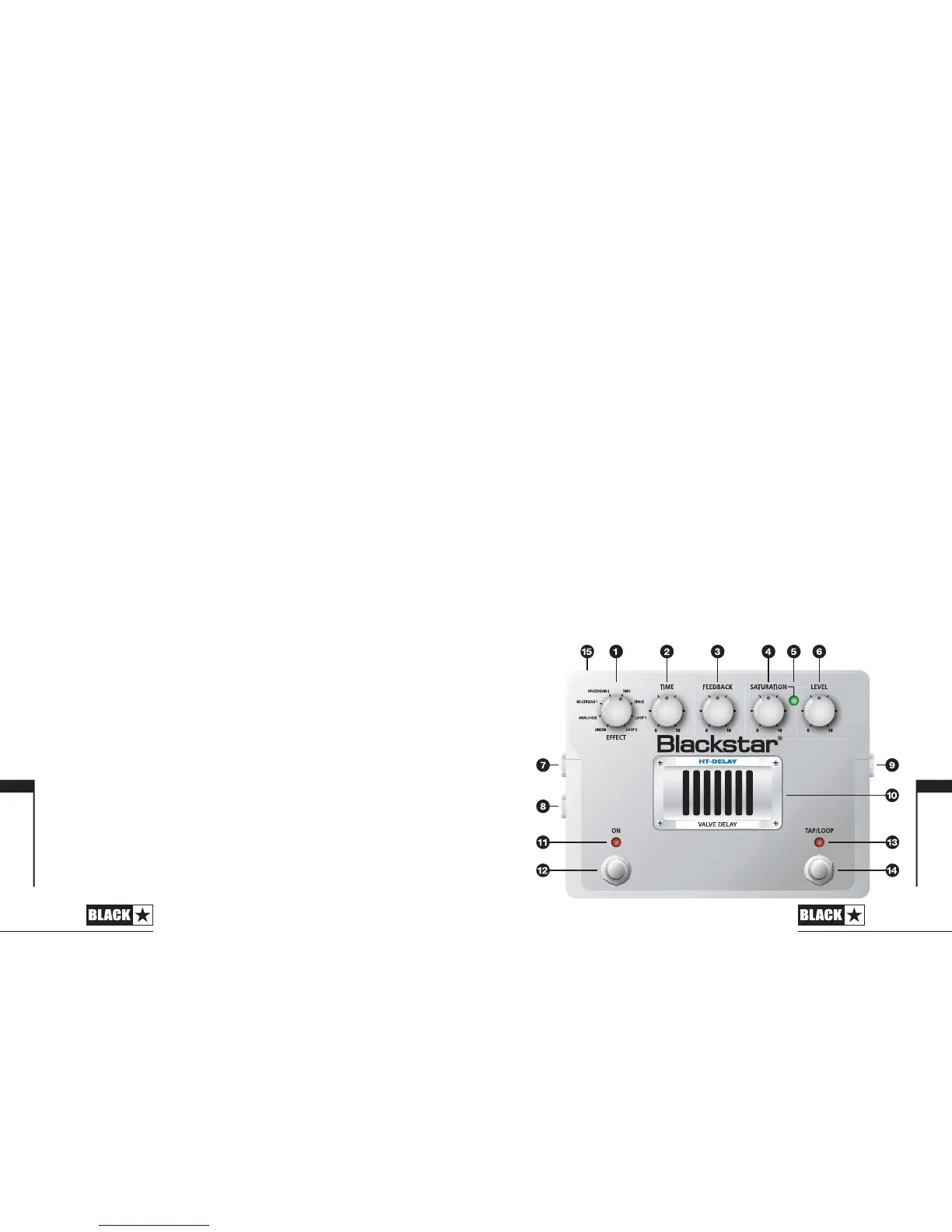

Controls: Effect, Time, Feedback, Saturation, Level
Delay Time: 3 seconds in delay modes, 7.2 seconds in loop modes
Valve: ECC83 (12AX7)
Switches: Effect On/Off Switch, Tap/Loop switch
Indicator: Effect On/Off, Saturation, Tap Time/Loop Status, Power On/Off
(Valve Backlight LED)
Jacks: Input, Left (Mono) Output, Right Output
Input Impedance: 1MOhm
Output Impedance: <1kOhm
Nominal Operating Level: -10dBV
Dimensions (mm): 160 X 119 X80
Weight: 1.3kg
DC Adapter: ADA Series Supplied
MEMORY CEAR and Effect On/Off function – Loop 1 and Loop 2
Effect On/Offࠬࠗ࠶࠴ (12)ࠍߔߣޔloopߪౣᐲࠬࠗ࠶࠴ࠍࡊࠬߔ
ࠆ߹ߢṶᄼࠍ⛮⛯ߒ߹ߔޕ
Effect On/Offࠬࠗ࠶࠴ࠍ1⑽એߒ⛯ߌࠆߣޔౣ↢߇⚳ߒࡔࡕ
߽ᶖߐࠇߡᣂߒ㍳㖸߇ߢ߈ࠆ⁁ᘒߦߥࠅ߹ߔޕ
15. DC INLET㧔DCࠕ࠳ࡊ࠲ࠫࡖ࠶ࠢ㧕
22V DC/1.0A ߩޓDCࠕ࠳ࡊ࠲ࠍធ⛯ߒ߹ߔޕޓ
ᵈᗧ㧍㧍ޓᔅߕᧄຠߦઃዻߩDCࠕ࠳ࡊ࠲ࠍ↪ߊߛߐޕ
