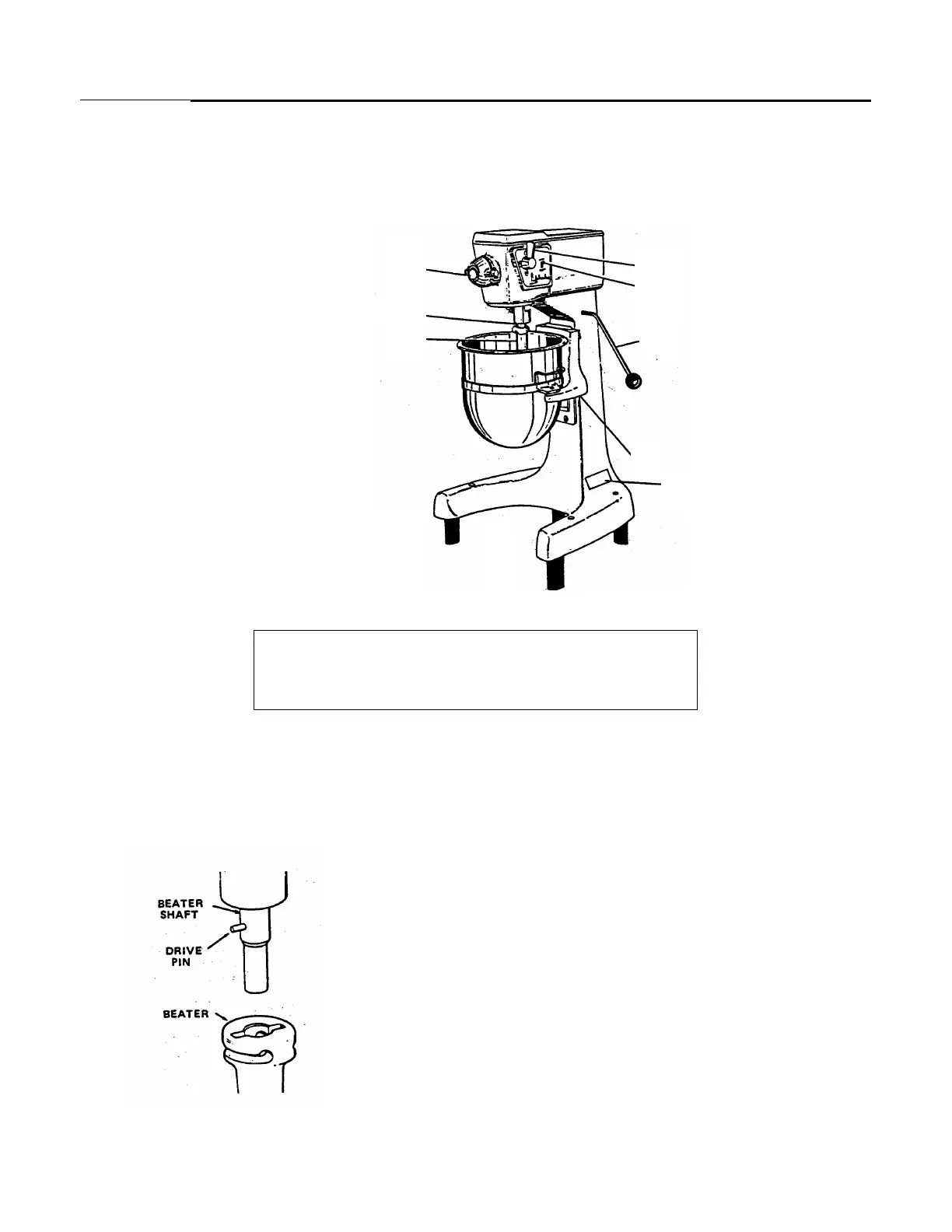

DISASSEMBLY
1. REPLACEMENT OF AUXILIARY HUB AND SEALS.
NOTE: TRANSMISSION NEED NOT BE REMOVED
FROM MIXER IF ONLY AUX. HUB OR HUB SEALS
NEED REPLACEMENT.
A. REMOVE OIL FILLER PLUG (1, FIGURE 2),
INSERT 3/8 INCH LONG STEMMED ALLEN
WRENCH DOWN THROUGH FILLER PLUG HOLE
AND LOOSEN SETSCREW (APPROX. 3 TURNS).
WITH SCREWDRIVER BETWEEN HUB (8) AND
TRANSMISSION HOUSING, PRY HUB ASSEMBLY
(2) OUT OF TRANS. LIGHT HAMMER TAPS
AGAINST BACK OF HUB MAY BE REQUIRED.
B. PULL BEVEL PINION SHAFT (3) FROM HUB.
REMOVE CAP (5) AND BUSHING (7) FROM HUB
(8) WITH A PIECE OF PIPE INSERTED INTO BACK
OF HUB (SEE FIGURE 2A) TAP SEAL (6) OUT OF
HUB; REPLACE "0" RING SEAL (9). COAT NEW
SEAL (6) WITH LIQUID GASKET MATERIAL
BEFORE REASSEMBLING.
FIGURE 2A
