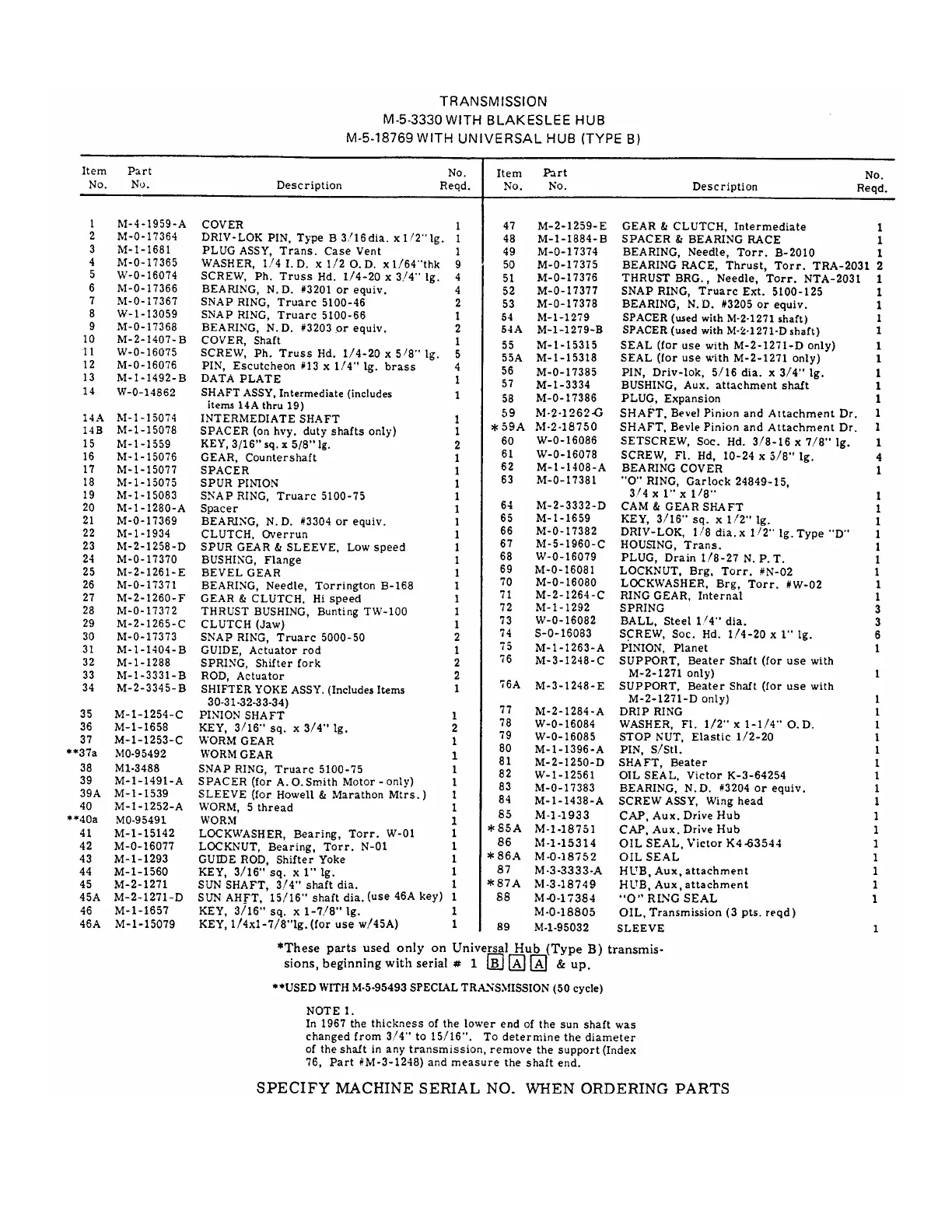

M-5-1505-E TRANSMISSION ASSEMBLY
Item
No.
Part
No.
Description
No.
Reqd.
Item
No.
Part No. Description
No.
Reqd
1 M-4-1251-D COVER 1 46 M-1-1657 KEY, 3/16" sq. x 1-7/8" lg. 1
2 M-0-17364 DRIV-LOK PIN, Type B, 3/16 dia. x 1/2 lg. 1 46A M-1-15079 KEY, 1/4 x 1-7/8"lg. (for use w/45A) 1
3 M-1-1681 PLUG ASSY, Trans, Case Vent 1 47 M-2-1259-E GEAR & CLUTCH, Intermediate 1
4 M-0-17365 WASHER, 1/4 I.D. x 1/2 O.D. xp/64"thk. 9 48 M-1-1884-B SPACER & BEARING RACE 1
5 W-0-16074 SCREW, Ph. Truss Hd. 1/4-20 x 3/4" lg 4 49 M-0-17374 BEARING, Needle, Torr. B-2010- 1
6 M-0-17366 BEARING, N.D. #3201 or equiv. 4 50 M-0-17375 BEARING RACE, Thrust, Torr. TRA-2031 2
7 M-0-17367 SNAP RING, Truarc 5100-46 2 51 M-0-17376 THRUST BRG., Needle, Torr. NTA-2031 1
8 W-1-13059 SNAP RING, Truarc 5100-66 1 52 M-0-17377 SNAP RING, Truarc Ext. 5100-125 1
9 M-0-17368 BEARING, N. D. #3203 or equiv. 2 53 M-0-17378 BEARING, N. D. #3205 or equiv. 1
10 M-2-1407-B COVER, Shaft 1 54 M-1-1279 SPACER (used with M-2-1271 shaft) 1
11 W-0-16075 SCREW, Ph. Truss Hd. 1/4-20 x 5/8" lg. 5 54A M-1-1279-B SPACER (used with M-2-1271-D shaft) 1
12 M-0-16076 PIN, Escutcheon #13 x 1/4" lg. brass 4 55 M-1-15316 SEAL (for use with M-1-1271 only) 1
13 M-1-1492-B DATA PLATE 1 55A P-1-5274 SEAL (for use with M-1-1271-D only) 1
14 W-0-14862 SHAFT ASSY, Intermediate (includes 1 56 W-0-16087 SCREW, Fl. hd. 5/16-18 x 7/8" lg. 4
items 14A thru 19)
57 M-1-1637 GASKET, Plastic - Red . 002 thk,
14A M-1-15074 INTERMEDIATE SHAFT 1 Tan. 004 thk, Transmatte .0075 thk A/R
14B M-l-15078 SPACER (on hvy. duty shafts only) 1 58 M-0-17386 PLUG, Expansion 1
15 M-1-1559 KEY, 3/16" sq. x 5/8" lg. 2 59 M-2-1262-G SHAFT, Bevel Pinion & Attachment Dr. 1
16 M-1-15076 GEAR, Countershaft 1 60 W-0-16086 SETSCREW, Soc. Hd. 3/8-16 x 7/8" lg. 1
17 M-1-15077 SPACER 1 61 W-0-16078 SCREW, Fl. Hd. 10-24 x 5/8" lg. 4
18 M-1-15075 SPUR PINION 1 62 M-1-1408-A BEARING COVER 1
19 M-1-15083 SNAP RING, Truarc 5100-75 1 63 M-0-17381 "0" RING, Garlock 24849-15,
20 M-1-1280-A SPACER 1
3/4 x 1" x 1/8" 1
21 M-0-17369 BEARING, N. D. #3304 or equiv. 1 64 M-3-3332-D CAM & GEAR SHAFT 1
22 M-1-1934 CLUTCH, Overrun 1 65 M-1-1659 KEY, 3/16" sq. x 1/2" lg. 1
23 M-2-1258-D SPUR GEAR & SLEEVE, Low speed 1 66 M-0-17382 DRIV-LOK, 1/8 dia. x 1/2"lg, Type "D" 1
24 M-0-17370 BUSHING, Flange 1 67 M-4-1397-F HOUSING, Trans. 1
25 M-2-1261-E BEVEL GEAR 1 68 W-0-16079 PLUG, Drain 1/8-27 N. P. T. 1
26 M-0-17371 BEARING, Needle, Torrington B-168 1 69 M-0-16080 LOCKWASHER, Brg, Torr. #W-02 1
27 M-2-1260-F GEAR & CLUTCH, Hi speed 1 70 M-0-16081 LOCKNUT, Brg, Torr. #N-02 1
28 M-0-17372 THRUST BUSHING, Bunting TW-100 1 71 M-2-1264-C RING GEAR, Internal 1
29 M-2-1265-C CLUTCH (Jaw) 1 72 M-l-1292 SPRING 3
30 M-0-17373 SNAP RING, Truarc 5000-50 2 73 W-0-16082 BALL, Steel 1/4" dia. 3
31 M-1-1404-B GUIDE, Actuator rod 1 74 W-0-16083 SCREW, Soc. Hd. 1/4-20 x 1" lg. 6
32 M-1-1288 SPRING, Shifter fork 2 75 M-1-1263-A PINION, Planet 1
33 M-1-3331-B ROD, Actuator 2 76 M-3-1248-C SUPPORT, Beater Shaft (for use with
34 M-2-3345-B SHIFTER YOKE ASSY. (Includes Items 1
M-2-1271 only) 1
30-31-32-33-34)
76A M-3-1248-E SUPPORT, Beater Shaft (for use with
35 M-1-1254-C PINION SHAFT 1
M-2-1271-D only) 1
36 M-1-1658 KEY, 3/16" sq. x 3/4" lg. 2 77 M-2-1284-A DRIP RING 1
37 M-1-1253-C WORM GEAR 1 78 W-0-16084 WASHER, Fl. 1/2" x 1-1/4" O.D. 1
38 M1-3488 SNAP RING, Truarc 5100-75 1 79 W-0-16085 STOP NUT, Elastic 1/2-20 1
39 M-1-1491-A SPACER (for A. 0. Smith Motor-only) 1 80 M-1-1396-A PIN, S/Stl. 1
39A M-1-1539 SLEEVE (for Howell & Marathon Motors) 1 81 M-2-1250-D SHAFT, Beater 1
40 M-1-1252-A WORM, 5 thread 1 82 W-1-12561-A OIL SEAL, Victor K-3-64254 1
41 M-1-15142 LOCKWASHER, Bearing, Torr. W-01 1 83 M-0-17383 BEARING, N.D. #3204 or equiv. 1
42 M-0-16077 LOCKNUT, Bearing, Torr. N-01 1 84 M-1-1438-A SCREW ASSY, Wing head 1
43 M-1-1293 GUIDE ROD, Shifter Yoke 1 85 M-1-1933 CAP, Aux. Drive Hub 1
44 M-1-1560 KEY, 3/16" sq. x 1" lg. 1 86 M-1-15314 OIL SEAL, Victor K-4-63544 1
45 M-2-1271 SUN SHAFT, 3/4" dia. Shaft 1 87 M-3-1932-A HUB, Aux. attachment 1
45A M-2-1271-D SUN SHAFT, 15/16" dia. Shaft (use 46A key) 1
NOTE 1.
In 1967 the thickness of the lower end of the sun shaft was changed
from 3/4" to 15/16". To determine the diameter of the shaft in any
transmission, remove the support (Index 76, Part #M-3-1248) and
measure the shaft end.
NOTE 2.
Certain models of 1505 transmissions used a M-3-1282 attachment
shaft, M-1-1475 cap and M-3-1411 hub. All of these items are now
replaced by index 87, M-3-1932-A Attachment Hub.
SPECIFY MACHINE SERIAL NO. WHEN ORDERING PARTS
31
