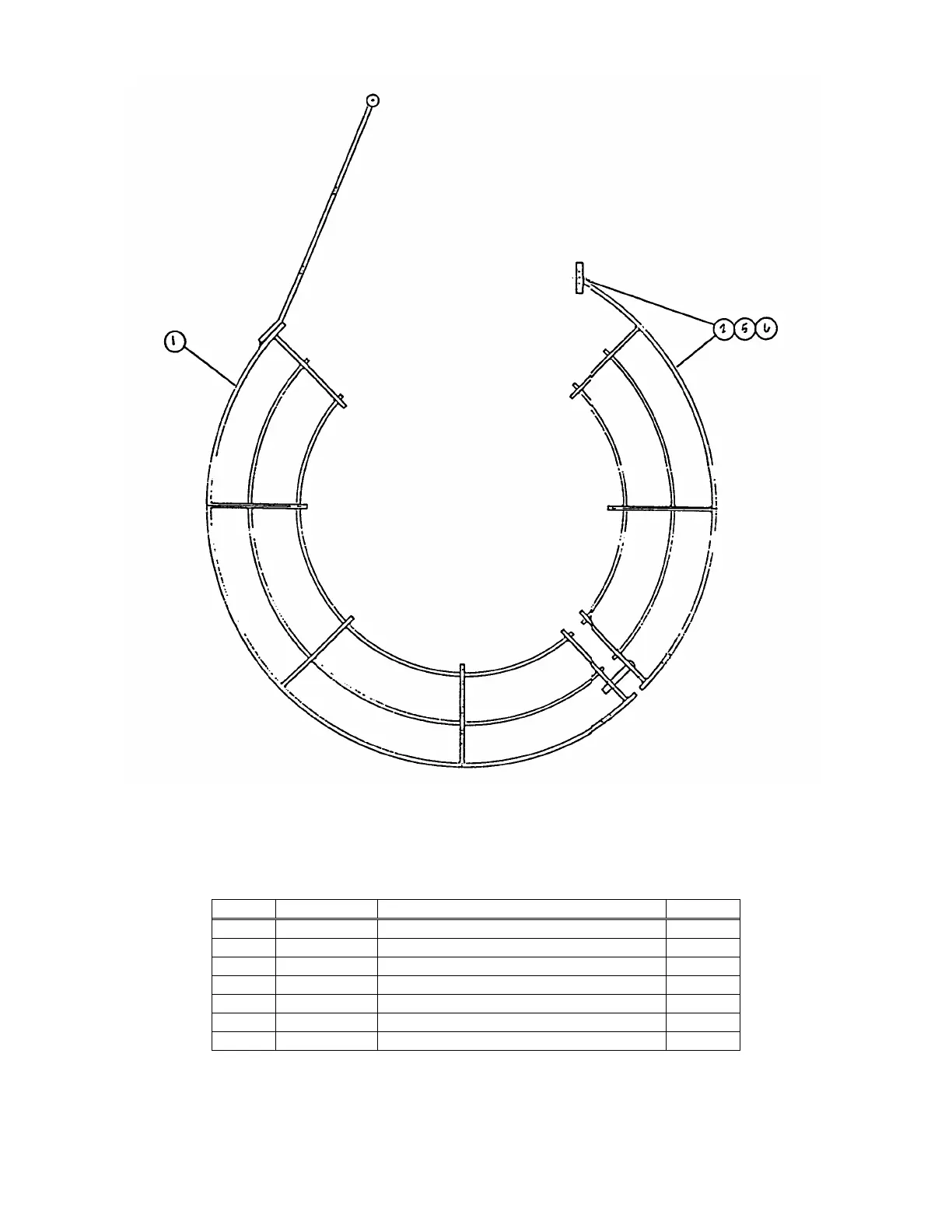

Blakeslee B-12 - Page 34

TRANSMISSION
M-5-3330 WITH BLAKESLEE HUB
M-5-18769 WITH UNIVERSAL HUB (TYPE B)
Item
No.
Part
No.
Description
No.
Reqd.
1 M-4-1959-A COVER 1
2 M-0-17364 DRIV-LOK PIN, Type B 3/16 dia. x 1/2" lg. 1
3 M-1-1681 PLUG ASSY, Trans. Case Vent 1
4 M-0-17365 WASHER, 1/4 I. D. x 1/2 O.D. x 1/64"thk 9
5 W-0-16074 SCREW, Ph. Truss Hd. 1/4-20 x 3/4" lg. 4
6 M-0-17366 BEARING, N.D. #3201 or equiv. 4
7 M-0-17367 SNAP RING, Truarc 5100-46 2
8 W-1-13059 SNAP RING, Truarc 5100-66 1
9 M-0-17368 BEARING, N.D. #3203 or equiv. 2
10 M-2-1407-B COVER, Shaft 1
11 W-0-16075 SCREW, Ph. Truss Hd. 1/4-20 x 5/8" lg. 5
12 M-0-16076 PIN, Escutcheon #13 x 1/4" lg. brass 4
13 M-1-1492-B DATA PLATE 1
14 W-0-14862 SHAFT ASSY, Intermediate (includes 1
items 14A thru 19)
14A M-1-15074 INTERMEDIATE SHAFT 1
14B M-1-15078 SPACER (on hvy. duty shafts only) 1
15 M-1-1559 KEY, 3/16" sq.x 5/8" lg. 2
16 M-1-15076 GEAR, Countershaft 1
17 M-1-15077 SPACER 1
18 M-1-15075 SPUR PINION 1
19 M-1-15083 SNAP RING, Truarc 5100-75 1
20 M-1-1280-A Spacer 1
21 M-0-17369 BEARING, N. D. #3304 or equiv. 1
22 M-1-1934 CLUTCH, Overrun 1
23 M-2-1258-D SPUR GEAR & SLEEVE, Low speed 1
24 M-0-17370 BUSHING, Flange 1
25 M-2-1261-E BEVEL GEAR 1
26 M-0-17371 BEARING, Needle, Torrington B-168 1
27 M-2-1260-F GEAR & CLUTCH. Hi speed 1
28 M-0-17372 THRUST BUSHING, Bunting TW-100 1
29 M-2-1265-C CLUTCH (Jaw) 1
30 M-0-17373 SNAP RING, Truarc 5000-50 2
31 M-1-1404-B GUIDE, Actuator rod 1
32 M-1-1288 SPRING, Shifter fork 2
33 M-1-3331-B ROD, Actuator 2
34 M-2-3345-B SHIFTER YOKE ASSY. (Includes Items 1
30-31-32-33-34)
35 M-1-1254-C PINION SHAFT 1
36 M-l-1658 KEY, 3/16" sq. x 3/4" lg. 2
37 M-1-1253-C WORM GEAR 1
**37a M0-95492 WORM GEAR 1
38 Ml-3488 SNAP RING, Truarc 5100-75 1
39 M-1-1491-A SPACER (for A. 0. Smith Motor-only) 1
39A M-1-1539 SLEEVE (for Howell & Marathon Mtrs.) 1
40 M-1-1252-A WORM, 5 thread 1
**40a M0-95491 WORM 1
41 M-1-15142 LOCKWASHER, Bearing, Torr. W-01 1
42 M-0-16077 LOCKNUT, Bearing, Torr. N-01 1
43 M-1-1293 GUIDE ROD, Shifter Yoke 1
44 M-1-1560 KEY, 3/16" sq. x 1" lg. 1
45 M-2-1271 SUN SHAFT, 3/4" shaft dia. 1
45A M-2-1271-D SUN AHFT. 15/16" shaft dia. (use 46A key) 1
46 M-1-1657 KEY, 3/16" sq. x 1-7/8" lg.
1
46A M-1-15079 KEY, 1/4x1-7/8"lg.(for use w/45A) 1
Item
No.
Part No. Description No.
Reqd.
47 M-2-1259-E GEAR & CLUTCH, Intermediate 1
48 M-1-1884-B SPACER & BEARING RACE 1
49 M-0-17374 BEARING, Needle, Torr. B-2010 1
50 M-0-17375 BEARING RACE, Thrust, Torr. TRA-2031 2
51 M-0-17376 THRUST BRG., Needle, Torr. NTA-2031 1
52 M-0-17377 SNAP RING, Truarc Ext. 5100-125 1
53 M-0-17378 BEARING, N. D. #3205 or equiv. 1
54 M-1-1279 SPACER (used with M-2-1271 shaft) 1
54A M-1-1279-B SPACER (used with M-2-1271-D shaft) 1
55 M-1-15315 SEAL (for use with M-2-1271-D only) 1
55A M-1-15318 SEAL (for use with M-2-1271 only) 1
56 M-0-17385 PIN, Driv-lok, 5/16 dia. x 3/4" lg. 1
57 M-1-3334 BUSHING, Aux. attachment shaft 1
58 M-0-17386 PLUG, Expansion 1
59 M-2-1262-G SHAFT, Bevel Pinion and Attachment Dr. 1
* 59A M-2-18750 SHAFT, Bevle Pinion and Attachment Dr. 1
60 W-0-16086 SETSCREW, Soc. Hd. 3/8-16 x 7/8" lg. 1
61 W-0-16078 SCREW, Fl. Hd, 10-24 x 5/8" lg. 4
62 M-1-1408-A BEARING COVER 1
63 M-0-17381 "O" RING, Garlock 24849-15,
3/4 x 1" x 1/8" 1
64 M-2-3332-D CAM & GEAR SHAFT 1
65 M-1-1659 KEY, 3/16" sq. x 1/2" lg.
66 M-0-17382 DRIV-LOK, 1/8 dia.x 1/2" lg. Type "D"
67 M-5-1960-C HOUSING, Trans.
68 W-0-16079 PLUG, Drain 1/8-27 N. P.T.
69 M-0-16081 LOCKNUT, Brg, Torr. #N-02
70 M-0-16080 LOCKWASHER, Brg, Torr. #W-02
71 M-2-1264-C RING GEAR, Internal
72 M-l-l292 SPRING 3
73 W-0-16082 BALL, Steel 1/4" dia. 3
74 S-0-16083 SCREW, Soc. Hd. 1/4-20 x 1" lg. 6
75 M-1-1263-A PINION, Planet 1
76 M-3-1248-C SUPPORT, Beater Shaft (for use with
M-2-1271 only) 1
76A M-3-1248-E SUPPORT, Beater Shaft (for use with
M-2-1271-D only) 1
77 M-2-1284-A DRIP RING 1
78 W-0-16084 WASHER, Fl. 1/2" x 1-1/4" O.D. 1
79 W-0-16085 STOP NUT, Elastic 1/2-20 1
80 M-1-1396-A PIN, S/Stl. 1
81 M-2-1250-D SHAFT, Beater 1
82 W-1-12561 OIL SEAL, Victor K-3-64254 1
83 M-0-17383 BEARING, N.D. #3204 or equiv. 1
84 M-1-1438-A SCREW ASSY, Wing head 1
85 M-1-1933 CAP, Aux. Drive Hub 1
*85A M-1-18751 CAP, Aux. Drive Hub 1
86 M-1-15314 OIL SEAL, Victor K4-63544 1
*86A M-0-18752 OIL SEAL 1
87 M-3-3333-A HUB, Aux, attachment 1
*87A M-3-18749 HUB, Aux, attachment 1
88 M-0-17384 "O" RING SEAL 1
M-0-18805 OIL, Transmission (3 pts. reqd)
89 M-1-95032 SLEEVE 1
* These parts used only on Universal Hub (Type B) transmissions, beginning with
serial * 1 & up.
** USED WITH M-5-95493 SPECIAL TRANSMISSION (50 cycle)
NOTE 1.
In 1967 the thickness of the lower end of the sun shaft was changed from
3/4" to 15/16". To determine the diameter of the shaft in any
transmission, remove the support (Index 76, Part #M-3-1248) and
measure the shaft end.
SPECIFY MACHINE SERIAL NO. WHEN ORDERING PARTS
