Installation Instructions
26.25
670
Travel
Bowl Guard
NOTE: Holes used for shipping and mounting unit to floor
-2-
BENCH MODEL – B20
Select a location for your mixer that will save time
and steps for the operator. Allow ample work
space in front and to the sides of the mixer.
Mixer should be mounted to a sturdily built table
or bench approximately 25 inches high. Mounting
mixer to bench will insure against mixer slipping
on wet surface or tipping over from pressure
exerted as attachments are used. Refer to

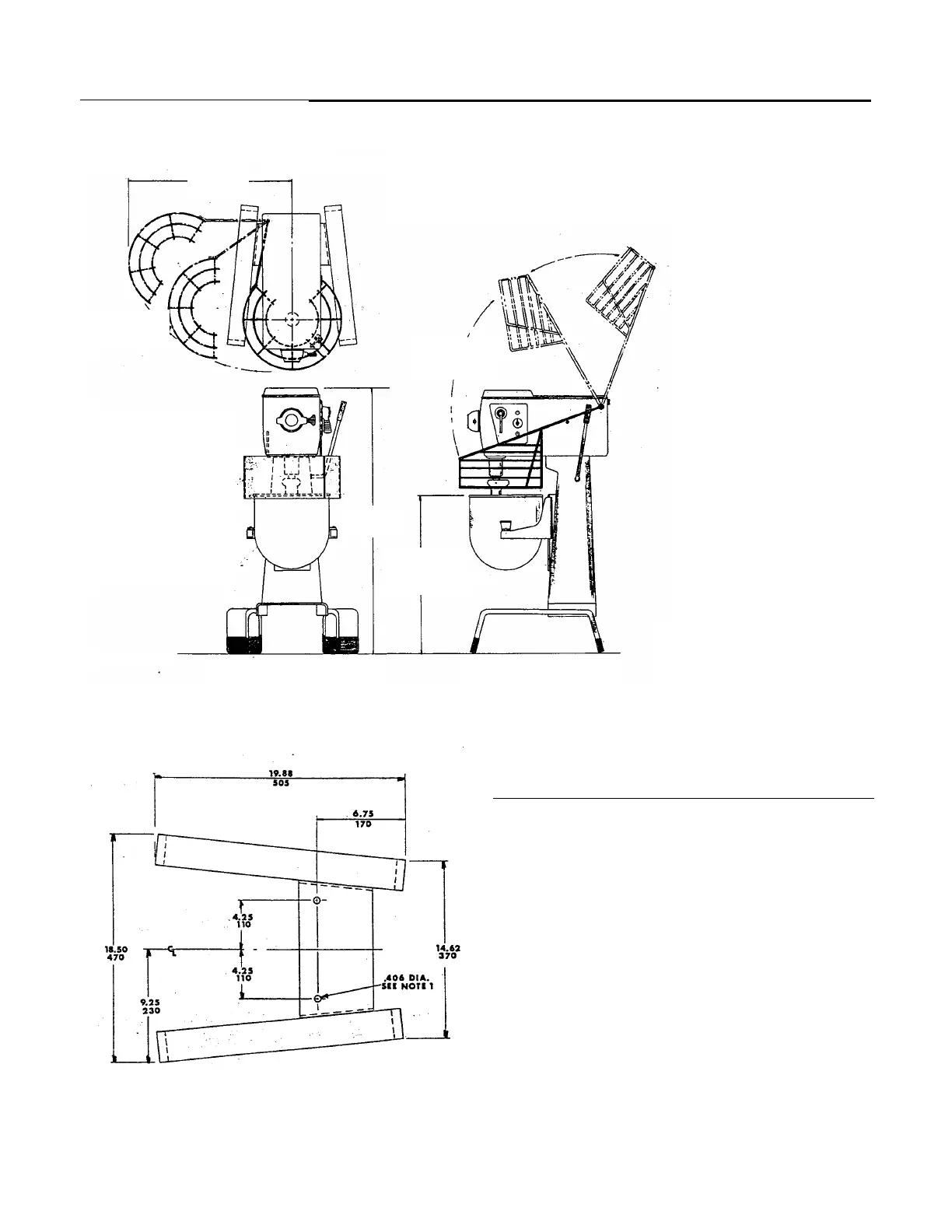

mounting hole dimensional diagram.
Drill (4) 13/32” dia. Holes in table or bench top per
dimensions shown. Secure from underside of
table with (4) 13/32” – 16 bolts (length as required
b
thickness of bench to
.
Shown With Type “A” Bowl Guard Shown With Type “B” Bowl Guard
40.75
10.35
26.50 675
Raised Position
Travel
Bowl Guard
To Next Page
