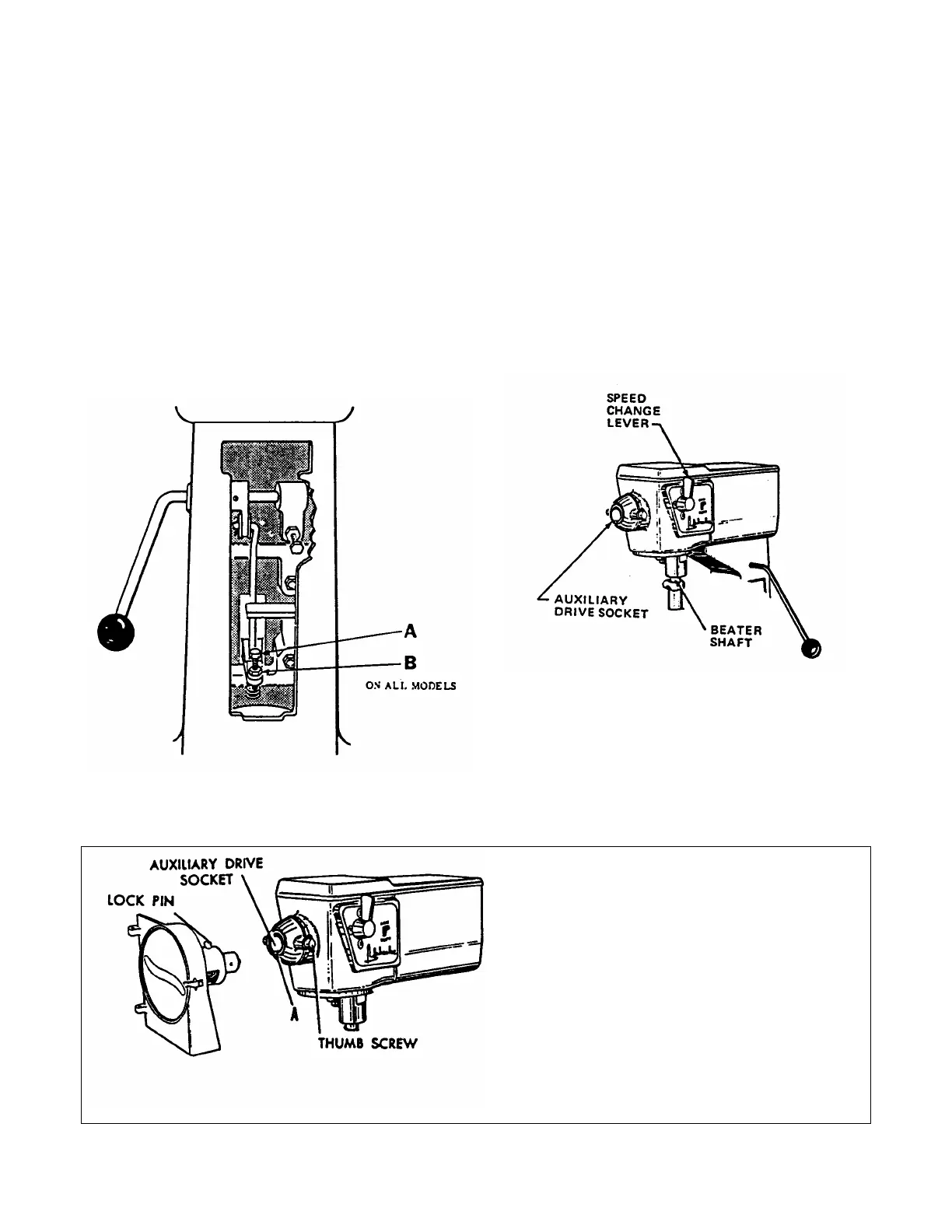

Bowl Lift Mechanism Adjustment
Bowl lift is factory set. However should
adjustment be necessary ds so as follows.
1. The mixers have adjustable stops to limit
upward travel of the bowl lift
Changing Speeds
2. To adjust upward travel of lift (all models)
loosen lock nut “B” and turn bolt “A” clockwise to
bring bottom of bowl closer to attachment end or
counter-clockwise to increase the distance
between the bottom of bowl and attachment end.
Retighten lock nut “B”. CAUTION: Attachment
muts not rub on bottom of bowl.
It is important to the life of the mixer, and to
perfect mixing, to keep the mix in constant
motion. In Blakeslee Built Mixers, which are
equipped with constant mesh gears and
automatic clutch, the speed may be varied by
simply turning the mixer off, selecting the new
desired speed with the speed change lever, and
then turn the mixer back on.
NOTE: When mixing heavy loads, the
Transmission should be fully stopped before
shifting speeds.
BEATER
SPEED
AUX. DRIVE
SPEED
SPEEDS
(RPM) (RPM)
1 Low 102 57
2 Medium 180 101
3 High 354 197
Mounting of Accessories
Vegtable Slicer, Meat Chopper, and Cheese
Shredder all mount in a similar fashion to the
“Auxillary Drive Socket”. Illustration shows a typical
mounting using vegtable slicer.
1. Remove cover plate from auxillary drive socket.
2. Turn thumb screws out so that it does not extend
into the drive socket.
3. Insert hub of attachment into socket, rotating
slightly untill it slides into place against mixer
housing. Lubricate with a few drops of mineral oil
or salad oil.
4. Turn thumb screws to lock attachment into place.
5. Clean drain slot (A) after use.
-15-
