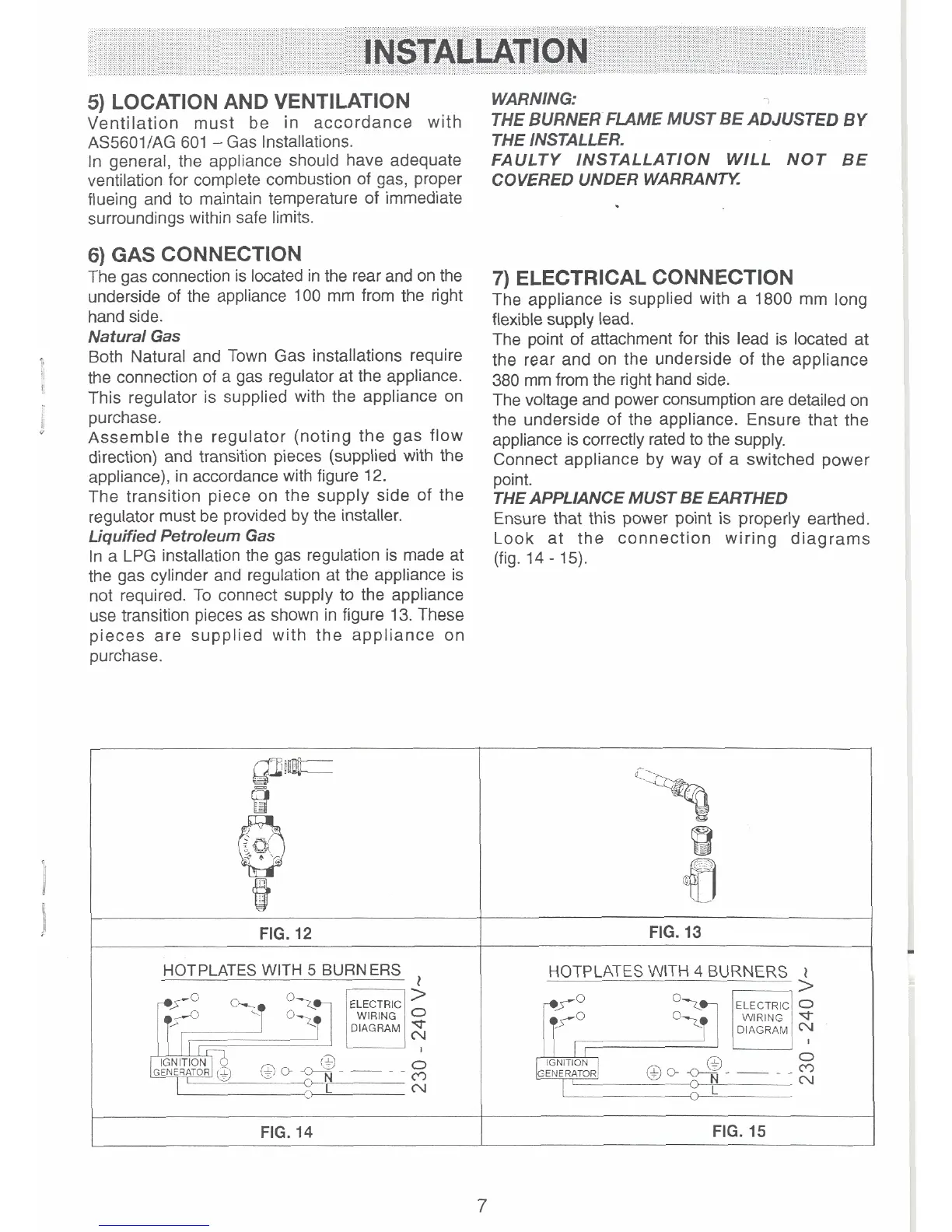

INSTALLATION
5)
LOCATION AND VENTILATION
Ventilation must be in accordance with
AS5601lAG 601
-
Gas Installations.
In general, the appliance should have adequate
ventilation for complete combustion of gas, proper
flueing and to maintain temperature of immediate
surroundings within safe limits.
6)
GAS CONNECTION
The
gas
connection is located in the rear and on the
underside of the appliance 100 mm from the right
hand side.
Natural Gas
Both Natural and Town Gas installations require
1
the connection of a gas regulator at the appliance.
This regulator is supplied with the appliance on
1
purchase.
"
Assemble the regulator (noting the gas flow
direction) and transition pieces (supplied with the
appliance), in accordance with figure
12.
The transition piece on the supply side of the
regulator must be provided by the installer.
Liquified Petroleum Gas
In a LPG installation the gas regulation is made at
the gas cylinder and regulation at the appliance is
not required. To connect supply to the appliance
use transition pieces as shown in figure 13. These
pieces are supplied with the appliance on
purchase.
FIG. 12
HOTPLATES
WITH
5
BURNERS
,
WARNING:
THE BURNER FLAME MUST
BE
ADJUSTED BY
THE INSTALLER.
FAULTY INSTALLATION WILL NOT BE
COVERED UNDER WARRANTY:
7)
ELECTRICAL CONNECTION
The appliance is supplied with
a
1800 mm long
flexible supply lead.
The point of attachment for this lead is located at
the rear and on the underside of the appliance
380
mm from the right hand side.
The voltage and power consumption are detailed on
the underside of the appliance. Ensure that the
appliance is correctly rated to the supply.
Connect appliance by way of a switched power
point.
THE APPLlANCE MUST BE EARTHED
Ensure that this power point is properly earthed.
Look at the connection wiring diagrams
(fig. 14
-
15).
1
FIG. 14
-
FIG. 13
I
HOTPLATES WITH
4
BURNERS
1
.
I
FIG. 15
