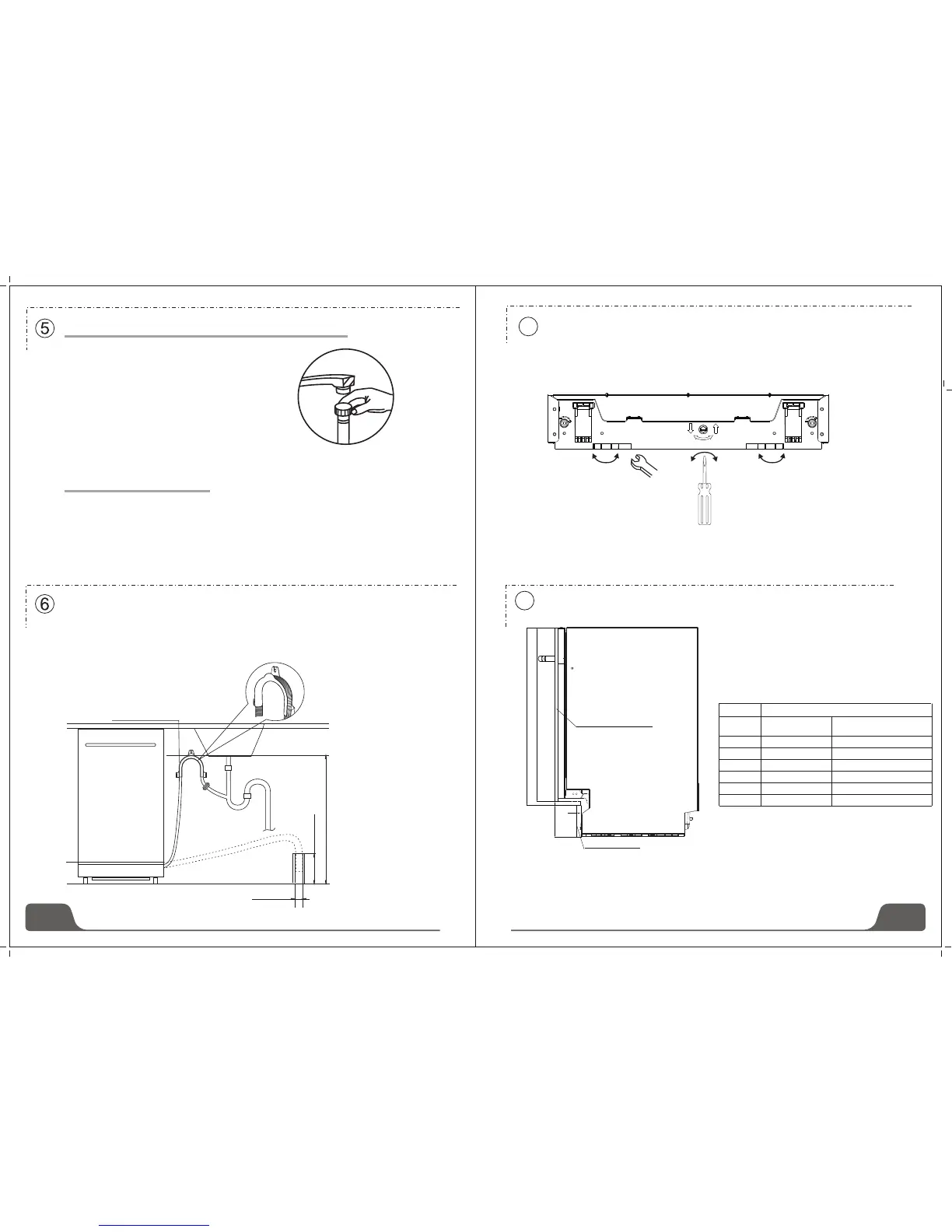

C
onnecting the water inlet hose (for cold water)
Connection the cold water supply hose to a
threaded 3/4'' water tap and make sure that
it is fastened tightly in place.
If the water hoses are new or have not
been used for an extended period of time, let
the water run through to make sure that the
water is clear and free of impurities,
If this precaution is not taken, there is
a risk that the water inlet can get
blocked and the appliance could
be damaged.
Ele
ctrical connection
Make sure the socket is compatible
with the plug of the appliance.
The socket must have earthing wire, and be
rated to 230-240V/10A, otherwise damage to
the appliance may occur.
Do not run any other appliances from the
same power socket at the same time as the
dishwasher.
7
Drain hose hook
sink
Max:1000mm
Min:400mm
outlet hose
Min:40mm
Connecting th
e water outlet hose
Put the hose into a drainage pipe with a diameter of
more than 40mm or into the sink waste pipe,. The
outlet pipe must be straight, and the height of the end
of pipe should be less than 1000mm higher than the
base of the dishwasher.
Notice: The outlet pipe connector
should be tight.
8
Level Adjustment
Allowable slope under entire dishwasher is 2 degree. Adjust the height by
turning the feet to make sure the dishwasher is level.
+
-
Adjust the back feet
Adjust the front feet
+ -
+ -
Notice:
The required height of the skirting board is of the
ornamental plate and clearance when the door is opened
.
Installation of skirting board
Referenced dimension
serial
number
1
2
3
4
5
6
ornamental
plate
708mm
698mm
688mm
678mm
668mm
658mm
skirting board
75mm
85mm
95mm
105mm
115mm
125mm
708max
658min
ornamental plate
125max
75min
skirting board
15
