Notices
Water pipes and electrical devices
should be installed by professionals

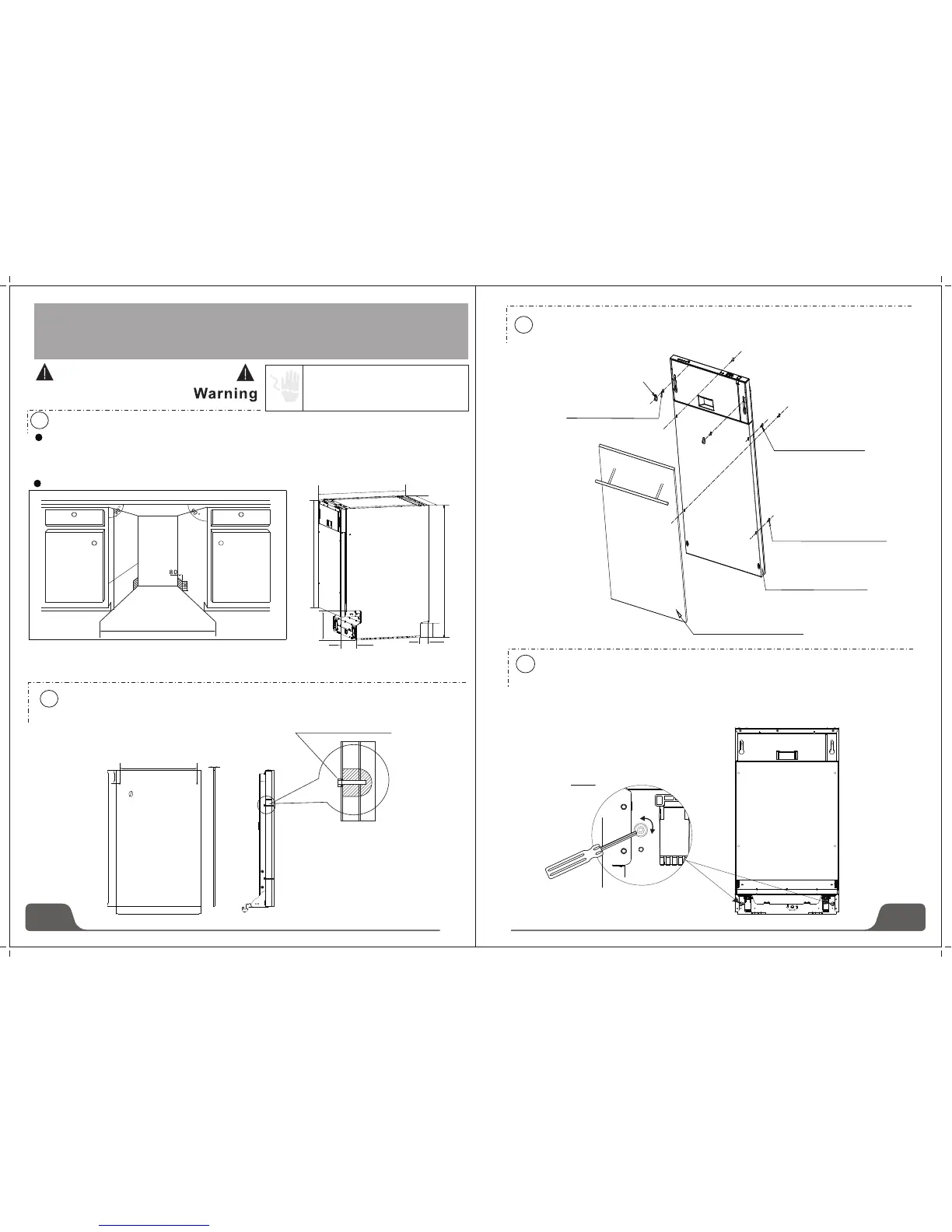

Installation Instruction
The dimension of the
front ornamental plate
B
efore Installation
Dishwasher placement requirements: The back of dishwasher should
face to the wall. The dishwasher has inlet and outlet pipes which can be
connected from the right or left side.
The installation dimensions within a cabinet are below.
Cut off the power before
installing the dishwasher,
or electric shock may occur
Install the dishwasher into
the cabinet
450min
The
connectors
for power
cord and
inlet/outlet
hose
815-8 75
5
80m
in
815
4
48
90
52
558
145
657
95
Fully built in
446
19
390
658min
708max
2- 2 the hole with
10mm depth
66
4-4x42 wooden screws
C
onnecting the water inlet hose (for cold water)
Connection the cold water supply hose to a
threaded 3/4'' water tap and make sure that
it is fastened tightly in place.
If the water hoses are new or have not
been used for an extended period of time, let
the water run through to make sure that the
water is clear and free of impurities,
If this precaution is not taken, there is
a risk that the water inlet can get
blocked and the appliance could
be damaged.
Ele
ctrical connection
Make sure the socket is compatible
with the plug of the appliance.
The socket must have earthing wire, and be
rated to 230-240V/10A, otherwise damage to
the appliance may occur.
Do not run any other appliances from the
same power socket at the same time as the
dishwasher.
7
Drain hose hook
sink
Max:1000mm
Min:400mm
outlet hose
Min:40mm
Connecting th
e water outlet hose
Put the hose into a drainage pipe with a diameter of
more than 40mm or into the sink waste pipe,. The
outlet pipe must be straight, and the height of the end
of pipe should be less than 1000mm higher than the
base of the dishwasher.
Notice: The outlet pipe connector
should be tight.
8
Level Adjustment
Allowable slope under entire dishwasher is 2 degree. Adjust the height by
turning the feet to make sure the dishwasher is level.
Te
nsion Adjustment of the Door Spring
After plac
ing the panel on the dishwasher, open and close the door
to test the balance of the door (see whether the door can remain at
the same place. If not,
turn the adjustment screw to adjust the
balance of the door.
+
-
Adjust the back feet
Adjust the front feet
+ -
+ -
Fix the dishwasher to the cabinet using four ST4*26 self-
tapping wood screws. There are four holes on the inside edge
of the dishwasher. Open the door, place the screws in the
supplied hole plugs, and screw through into the cabinet.
1.Fixing the dishwasher with the cabinet by turning the screws.
2.Plug the four hole plugs into the holes in the sketch map.
Fixation of dishwasher
ST4 * 2 6
hole plug
Hexnut tools
CR-V 4mm
Notice:
The required height of the skirting board is determined by the height
of the ornamental plate and clearance when the door is opened.
Installation of skirting board
9
Referenced dimension
serial
number
1
2
3
4
5
6
ornamental
plate
708mm
698mm
688mm
678mm
668mm
658mm
skirting board
75mm
85mm
95mm
105mm
115mm
125mm
-
+
708max
658min
ornamental plate
125max
75min
skirting board
15
4
Fix the orna
mental plate to the door
ST 4x42wooden screw
4x42wooden screw
①
②
ornamental plate (2~5KG)
The T-shaped plug
2-4x26wooden screw
Remove 2-ST 4x10 screw
The door of dishwasher
3
Te
nsion Adjustment of the Door Spring
After placing the panel on the dishwasher, open and close the door
to test the balance of the door (see whether the door can remain at
the same place. If not,
turn the adjustment screw to adjust the
balance of the door.
Hexnut tools
CR-V 4mm
-
+
4
1
2
