- 6 -

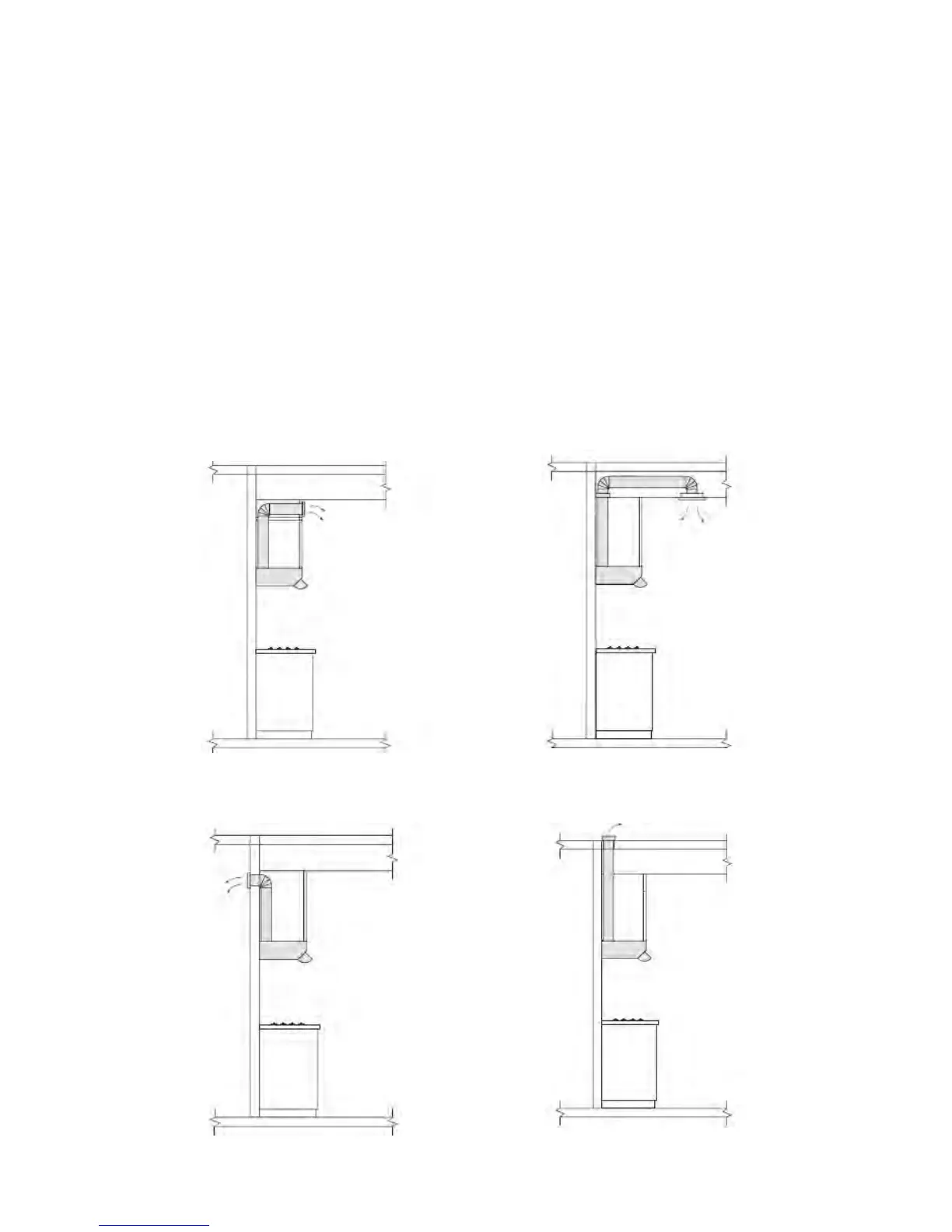

Recirculated to kitchen area via bulkhead
Recirculated to kitchen area via ceiling cavity
Ducted to atmosphere through wall Ducted to atmosphere through roof
Mounting the rangehood on the lower side of the cupboard. This appliance must be fitted to a
cupboard or other suitable support. For fixing use 4 screws suitable for the cupboard, using the hole
in Fig.1. When mounting align the front of the rangehood to the door of the cupboard and regulate the
L wall spacer through the screws marked P (Fig. 2). The rear of the appliance must then align with the
cupboard.
EXTRACTION THROUGH AN OUTSIDE WALL
The appliance expels the fumes through an outside wall or a duct. It is necessary to buy a telescopic
pipe in accordance with the standards in use and connect it to flange B (Fig. 1).
RECIRCULATION.
To transform the rangehood from the extraction version to the re circulating one ask your supplier for
an activated carbon filter. The activated carbon filter cleans the air of the room. This filter is not
washable or re-usable and must be substituted at least every 4 months. Saturation of the carbon
depends on how often the appliance is used, the type of kitchen and how regularly the aluminium
filters are cleaned. The filter must be fitted to the motor in the centre of the fan grille by twisting it by
90 degrees until it is gripped securely. Remove the grill (G) fig. 2 to carry out this operation. The clean
air is returned into the room through a connecting tube passing inside the cupboard and connected
to the ring B (Fig. 1).
