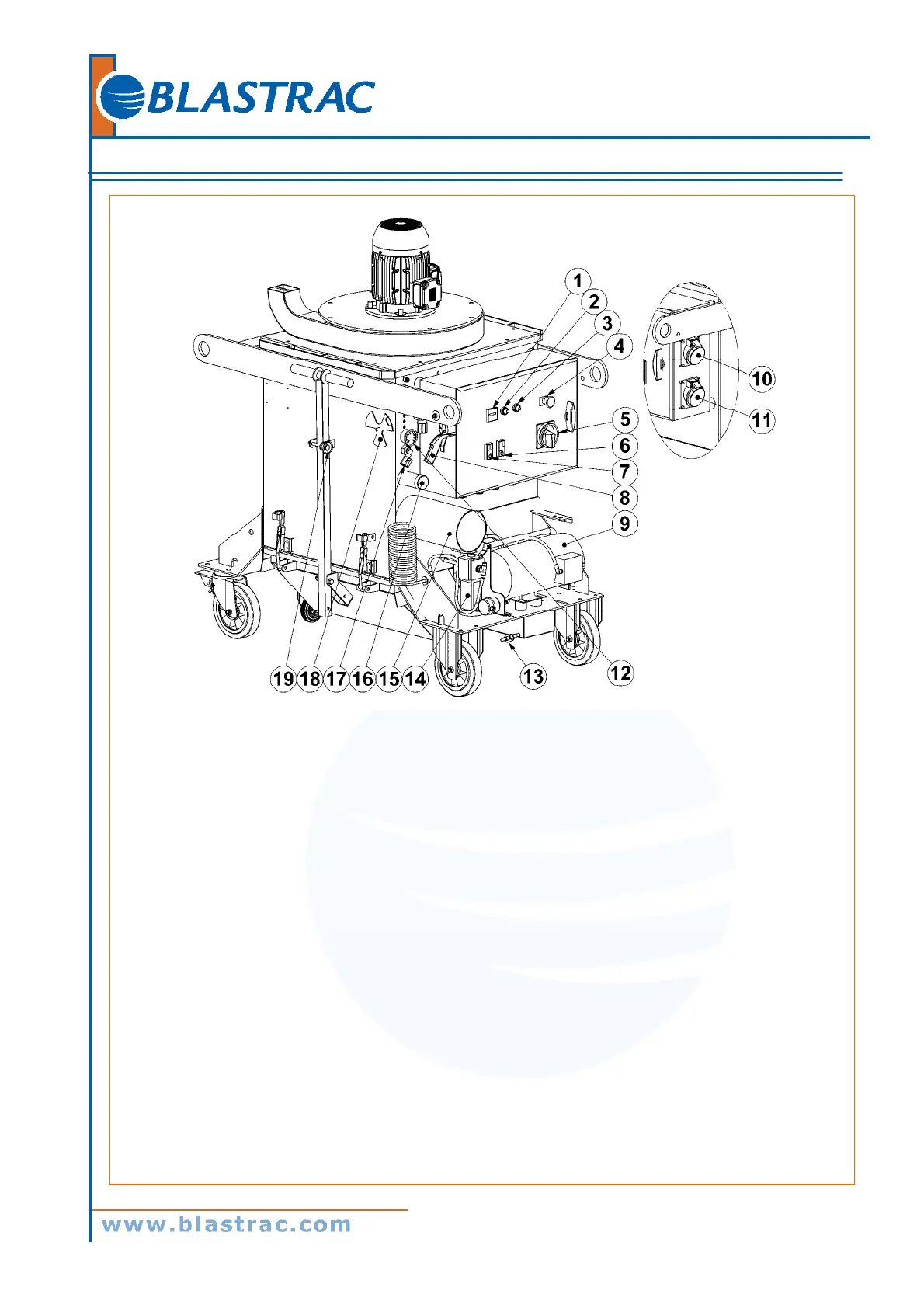

ITEM DESCRIPTION ITEM DESCRIPTION
1
Hour counter Shows the working time
of the Dust collector in hours.
Registration of the working hours
enables to follow a correct
maintenance schedule.
11
63A, 5 pole
2
Motor failure light
12
Manometer, shows the pressure of the air
tank. The pulse to clean the filters must be
given at 7 bar.
3
Phase incorrect light
13
Drain box. This box collect the drain water of
the water separator. Empty the box regular.
4
Emergency shut down switch
14
Water separator with automatic drain.
5
Main switch
15
Hose connection 5”(Ø127mm)
6
Fan ON / OFF
16
Hose connection 2” (Ø51mm)
7
Compressor ON / OFF
17
Drain valve. Open this drain valve regular to
remove water from the air tank.
8
Air pistol
18
Adamant plate. Regulates the pressure of the
airflow.
9
Compressor
19
Quick release pin. Put this pin into the hole at
bottom of the handle.
10
32A, 5 pole
