10
Driving the Machine
The wheels of the machine are controlled by the two outside handles (1 and 3). Pushing both handles forwards,
the machine drives forwards. Pulling both handles backwards, the machine drives backwards. The driving speed
depends on the position of the handles. Pushing the right handle forwards the machine turn to the left. Pushing
one handle forwards and pulling another handle backwards the machine will turns around its axis. Correcting
direction while moving is accomplished by slightly reducing pressure on one handle or the other while moving.

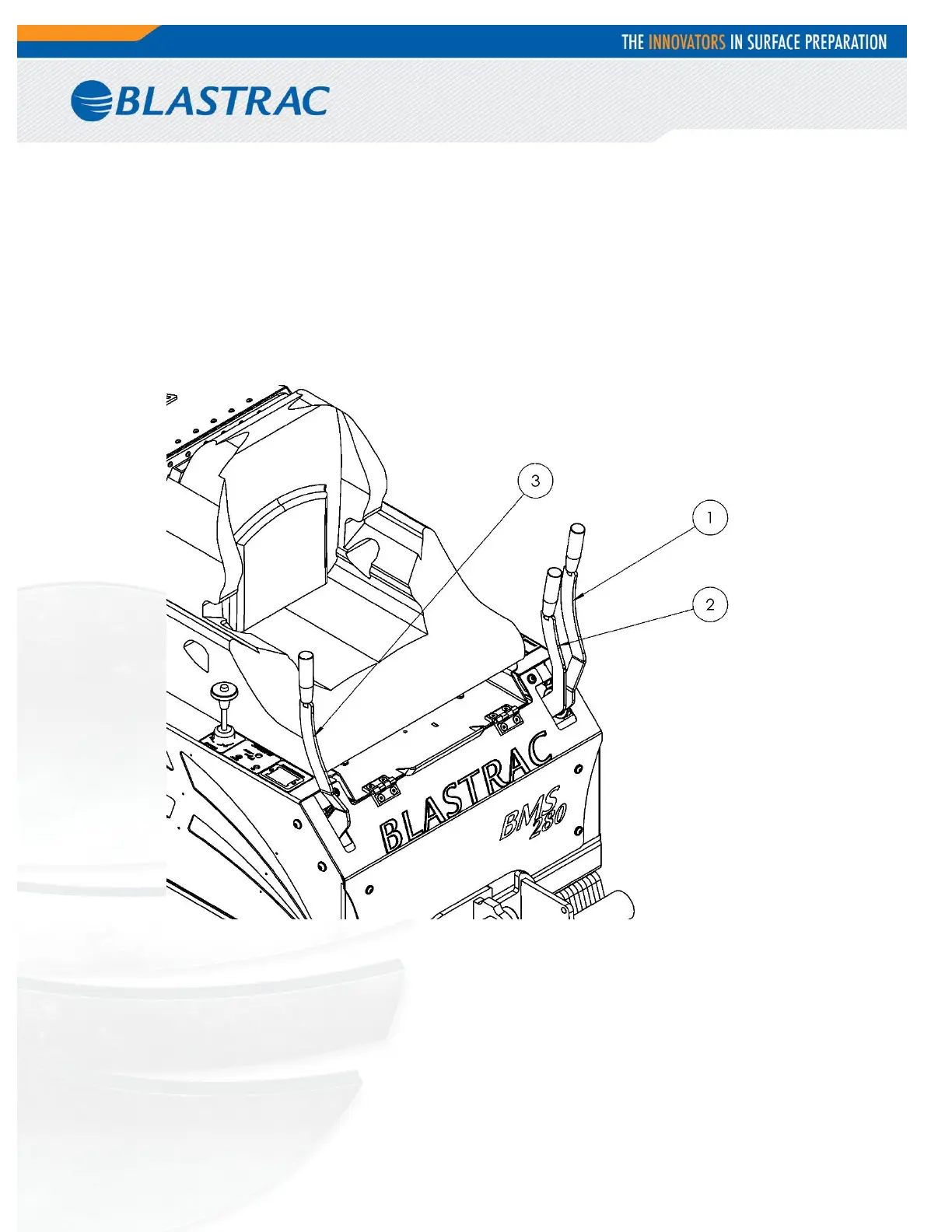

1) Left wheel control handle.
2) Tool positioning control handle.
3) Right wheel control handle.
