Controlling Tool Position Cylinder
The tool position cylinder is controlled by the left inner handle. Push the handle to lower the tool and pull the
handle to lift the tool to the proper cutting angle. Continuing to push the handle will lift the front of the machine.
This will need to be done when doing maintenance on the machine. When lifting the machine like this, immediately
place blocks under the machine. Never use the cutting head only.

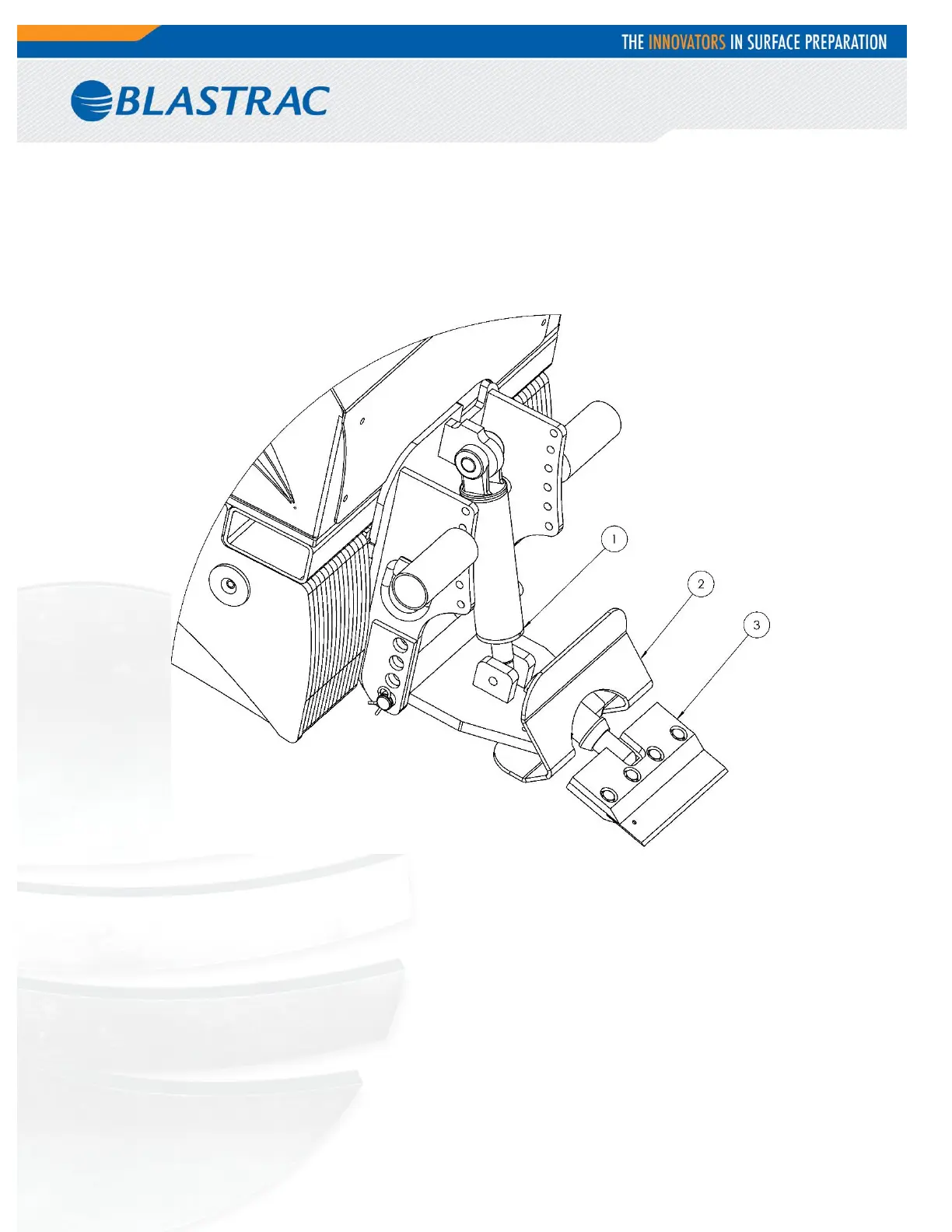

1) Hydraulic cylinder
2) Debris deflector
3) Cutting head - set
