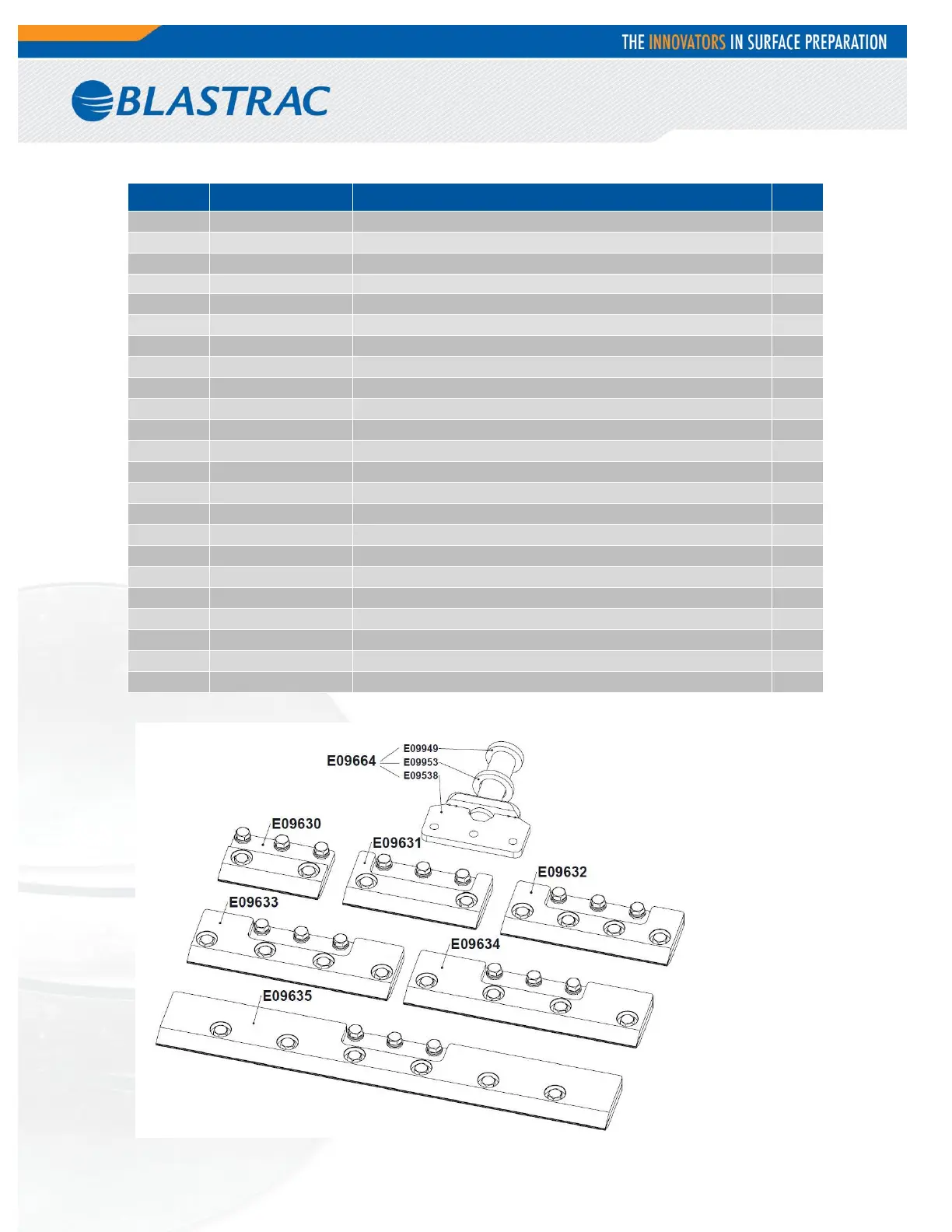

Blastrac BMS-280LP - Page 31

5
Fig. 02
Item
Part number
Description
Qty.
1
PG-10530
Main Frame BMS-280
1
2
E09711
Cylinder Connecting Rod
1
3
BE0234
Locking Clip Double 4,5mm
4
4
E09171
Hydraulic Cylinder
1
5
E11510
Locking Washer
2
6
E09949
Tool Holder Plate
1
7
E12246
Lower Cutting Head
1
8
E09950
Debris Deflector – New Holder Shape
1
9
E09953
Tool Holder Washer
1
10
E09538
Tool Holder
1
6+8+10
E09664
Tool Holder Complete
1
11+12
E09635
Blade Holder 686mm(27”)
1
BE0037
M12x30 Hexagon Bolt
3
BE0027
M12 Spring Lock Washer
3
BE0026
M12 Plain Washer
3
E09630
Blade Holder 152mm(6“)
1
E09631
Blade Holder 203mm(8“)
1
E09632
Blade Holder 254mm(10“)
1
E09633
Blade Holder 305mm(12“)
1
E09634
Blade Holder 355mm(14“)
1
13
E12247
Cutting Head Axle
1
