9
Attaching the stand
To complete the stand installation you will require a cross head screw driver
Attaching / Detaching the stand and wall mounting
ATTACHING/DETACHING THE STAND

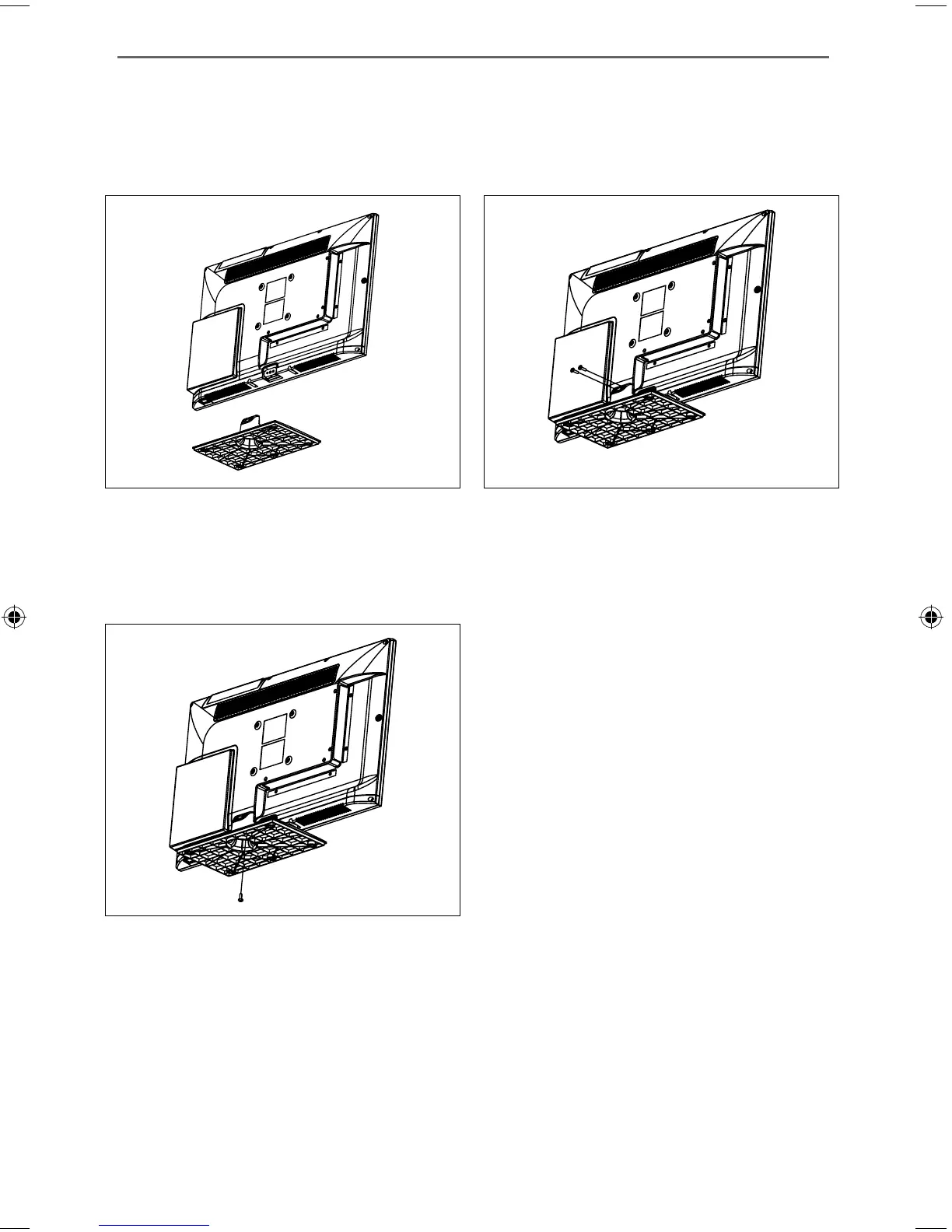

(fi g.1) Attach the stand neck to the rear of the
TV set
(fi g.2) Connect the stand neck and base to the TV
by using the screws provided
(fi g.3) Secure the base and neck to the TV by
using the screws provided for underneath the
stand base.
User Guide - BLA-MAN-0174, 23-157I, 23-157J.indd Sec1:9User Guide - BLA-MAN-0174, 23-157I, 23-157J.indd Sec1:9 11/22/2013 4:34:54 PM11/22/2013 4:34:54 PM
