PREPARING FOR USE
Exhausting hot air
The appliance must be placed close to a window or opening so that the warm exhaust air can
be ducted outside.
First position unit on a flat floor and make sure there’s a minimum of 30 cm clearance around
the unit, and is within the vicinity of a single circuit outlet power source.

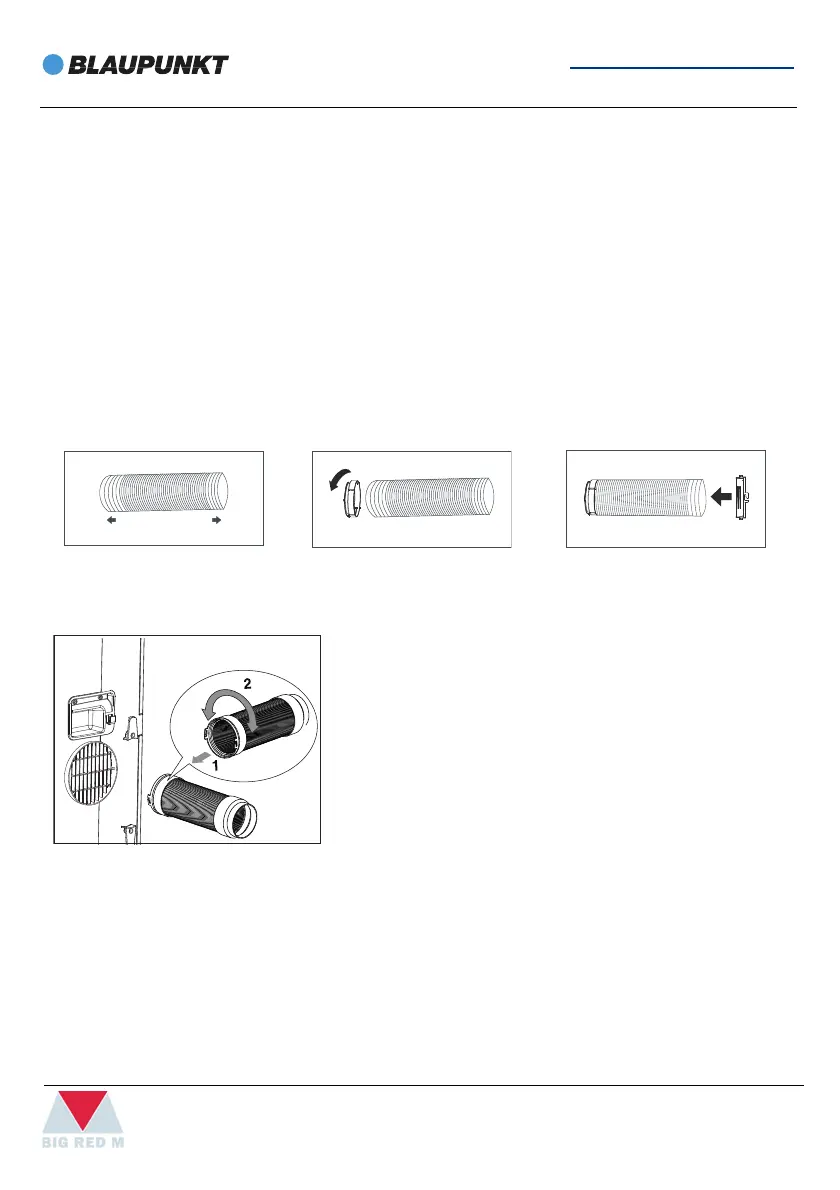

1. Extend either side of the hose (Fig.1) and screw the hose to hose outlet (Fig.2).
2. Extend the other side of the hose and screw it to hose inlet (Fig.3).
3. Install the hose inlet into the unit (Fig.4).
4. Affix the hose outlet into the window slider kit and seal. (Fig.5 & 6)
Fig.1 Fig.2 Fig.3
Extend the side of hose
Fig.4
The hose can be extended from its original length,
but it is the best to keep the length to minimum
required. Also make sure that the hose does not
have any sharp bends or sags. (Fig.7).
