Blaupunkt CDC-RF6 - Suspended Installation; Trunk Lid Clearance Check; Drill Mounting Holes; Secure Changer with Screws

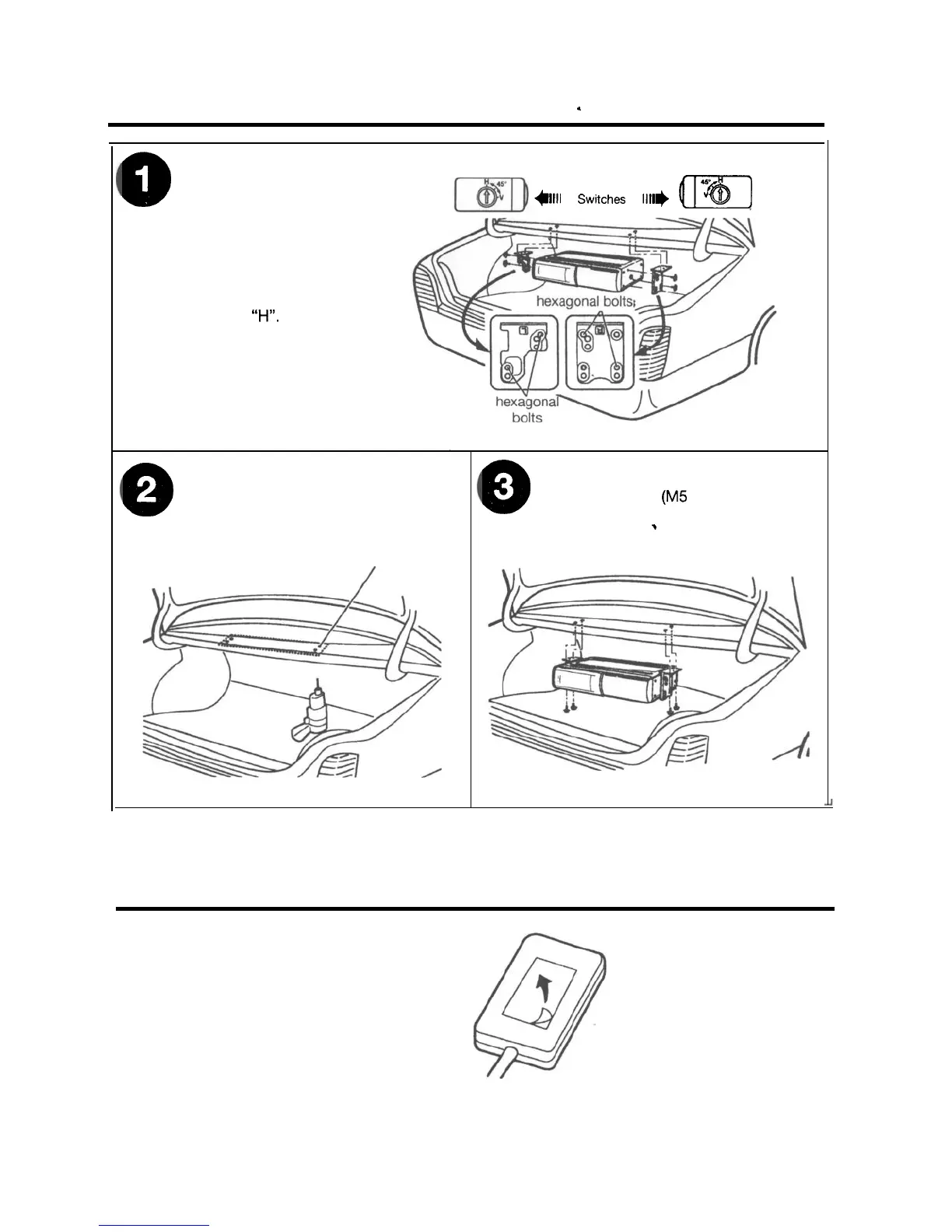

Suspended Installation .
0
l Make sure that the unit
does not hinder the
Anti-Vibration
movement of torsion bar
~1111 Switches 11111)
[--F&-l
spring or other parts of the
trunk lid.
l Confirm Anti-Vibration
Switches on both the left
and right sides are set to
position “HI’.
l Attach bracket (L) and
bracket (R) using the
hexagonal bolts (M5 x 8).
0
l Determine the mounting location and
drill four mounting holes.
3.6 mm Diameter
-
Q
l Attach the CD changer with the
tapping screws (M5 x 12).
.
Installation of the Controller
Peel off the removable seal on the back of
the controller unit and install it in a location
that will not obstruct driving.
