Blaupunkt MMP440 User Manual

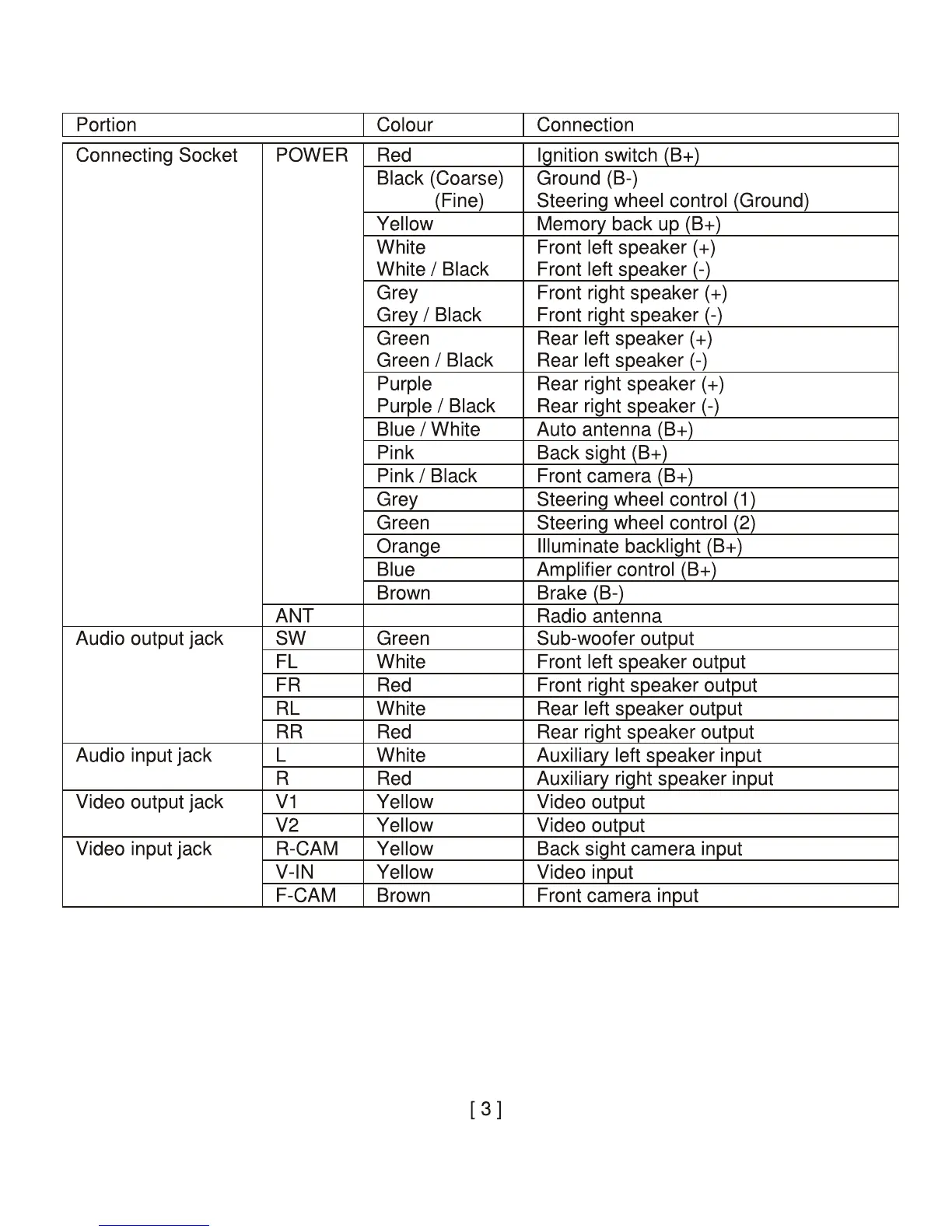

Portion
I Colour
I Connection
Connecting Socket
POWER
Red
Ignition switch (B+)
Black (Coarse) Ground (B-)
{Fine)
Steering wheel control {Ground)
Yellow Memory back up (B+)
White Front left speaker ( +)
White I Black Front left speaker{-)
Grey Front right speaker(+)
Grey
I Black Front right speaker(-)
Green Rear left speaker { +)
Green
I Black
Rear left speaker {-)
Purple Rear right speaker(+)
Purple
I Black Rear right speaker(-)
Blue/White Auto antenna {B+)
Pink Back sight {B+)
Pink/ Black Front camera {B+)
Grey Steering wheel control (1)
Green
Steering wheel control (2)
Orange Illuminate backlight (B+)
Blue
Amplifier control (B+)
Brown Brake {B-)
ANT Radio antenna
Audio output jack
sw Green Sub-woofer output
FL White
Front left speaker output
FR
Red Front right speaker output
RL White
Rear left speaker output
RR
Red Rear right speaker output
Audio input jack
L White Auxiliary left speaker input
R Red Auxiliary right speaker input
Video output jack V1 Yellow Video output
V2 Yellow
Video output
Video input jack
R-CAM Yellow Back sight camera input
V-IN Yellow
Video input
F-CAM Brown Front camera input
[ 3]
