Many thanks to buy our model, please read and reference this manual carefully before operate the unit. Please keep the manual
for future operation reference.

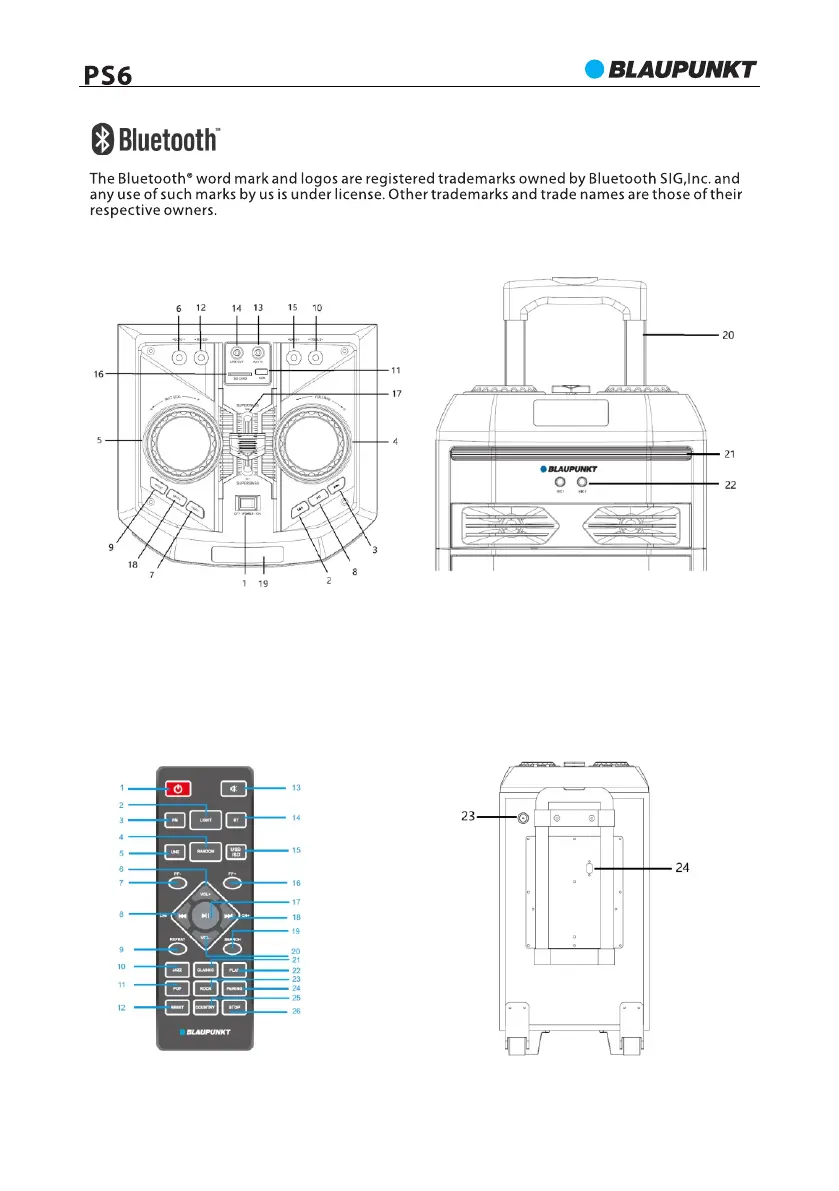

Control panel
1-Power on/off ; 2,3- Previous & Next; 4-Volume control; 5-Microphone volume control;
6-Microphone echo control; 7- Disco light； 8-Play/pause; 9-Mode;
10,15- Treble & bass adjustment; 11-USB port; 12- Microphone treble & bass adjustment; 13- AUX IN jack;
14-Line out jack; 16- SD card slot; 17- Super bass; 18- Mute；
19- Display; 20- trolley handle; 21- Disco light window; 22- micro phone 1 and 2 input jack;
23-FM antenna socket; 24-AC power outlet;
Remote controller
