BLB hydraulic BM40/2 - Page 4

BM40/2 JOYSTICK MONOBLOCK DIRECTIONAL CONTROL VALVE / INSTRUCTIONS MANUAL
4
PARTS LIST:

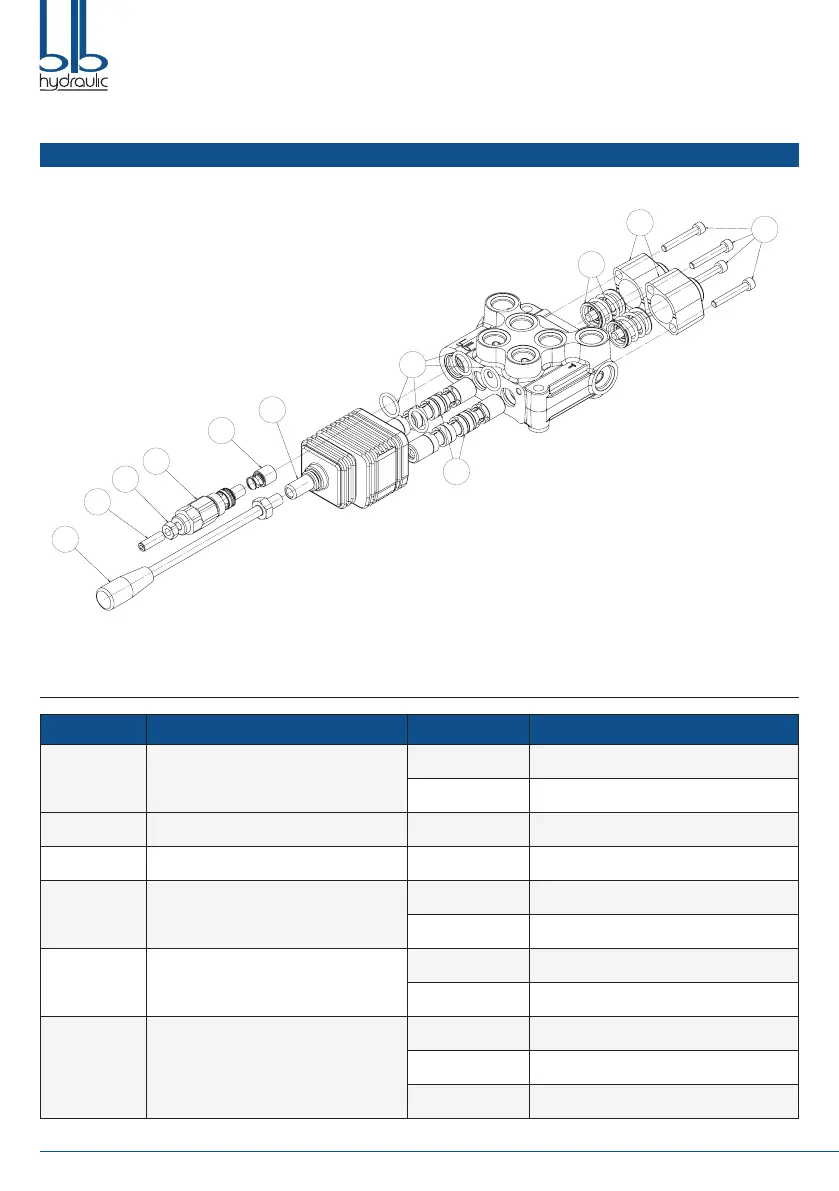

Drawing 1
BM40 WITH JOYSTICK SPARE PARTS
Nº Parts Parts Nº sub part Sub part
1 Relief Valve kit
1.1 Screw
1.2 Nut
2 Check valve
3 Kit handle
4 Handle cap kit
4 Handle cup
4.1 Screw
5 Spool kit
5.1 Seal
5 Spool
6 Positioner kit
6 Positioner cap
6.1 Positioner kit
6.2 Screw
1
1.2
1.1
2
3
5
6
6.2
4
6.1
5.1
